Sigma Wire & Cable | Bulk RG6 Coaxial Cable | Quad Shield | 1000 ft Pullbox | White
Shipping calculated at checkout
SKU: 881-104
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

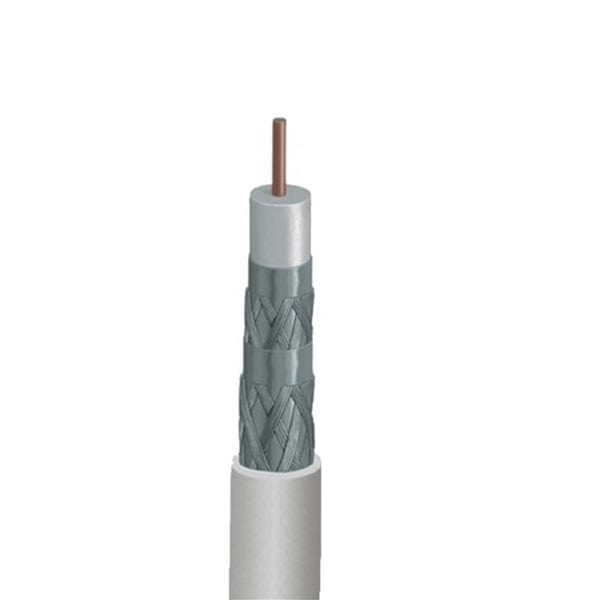

The Sigma Wire quad white coaxial cable is designed with a high-capacity spectrum, low loss, and an insulated central conductor. This makes it the perfect fit for applications where low losses are critical. Coaxial cables are ideal for transferring data at high frequencies, ensuring the distribution of signals over long distances without signal degradation. The RG-6 Quad White Cable is perfect for your entertainment needs, and it is available with F or BNC connectors depending on your application requirements.
Specifications
Rated Temperature: -40℃ ~ 75℃
Rated Voltage: 30V
Reference Standard: ANSI/SCTE 74 2011 & IEC 61196
Insulation Material: Foam PE
FPE Dielectric Diameter: 4.57 ± 0.01 mm
Minimum Resistance: ≤ 10%
1st Shield: 10000 ΜΩx km
2nd Shield: Aluminum Foil Tape
Braid Coverage: Aluminum Wire (36 AWG)
Temperature Range: -40℃ ~ 75℃
Jacket Ovality (max): 7%
Dielectric Ovality (max): 7%
Max. Dielectric: ≤ 10%
Max. Jacket Eccentricity: ≤ 10%
Bending Ability: S' & 'U' Bending
Bending Radius (min): ≤ 1.5 cm
Cold Bend Test @-40℃: No visible damage to the jacket
Impact Test @ -15℃: No visible damage to the jacket
Cond. Bond: ≥ 2.3 kg
Conductor Material: Copper Clad Steel
AWG: 18 AWG
Conductor Diameter: 1.02 mm
Jacket Material: PVC
Jacket Diameter: 6.93 ± 0.2 mm
Black Carbon Content: ≥ 2%
Nominal Capacitance: 53 ± 0.1 nf/km
Impedance: 75 (± 1.5) Ω
Impedance Homogeneous: ≥ 40 dB or ≤ 1%
Nominal DC Resistance (inner): 100 (± 1) Ω/KM
Nominal DC Resistance (outer): 18 (± 0.5) Ω/KM
Loop @ 20℃: N/A
Minimum Structural Return: -20 dB
Cond. Bond: ≥ 2.3 kg
Min. Velocity of Propagation: ≥ 82%
Certifications and Listings
- CSA Certified
- ETL Listed
Additional Features
- Pallet Quantity: 50
- Packaging: Wooden Reel Design
- Conductor: 18 AWG Copper Clad Steel
- Shielding: Quad Shielded
- Jacket Rating: CMP Rated
Download our detailed specification sheet for more information:
Download Specification Sheet
