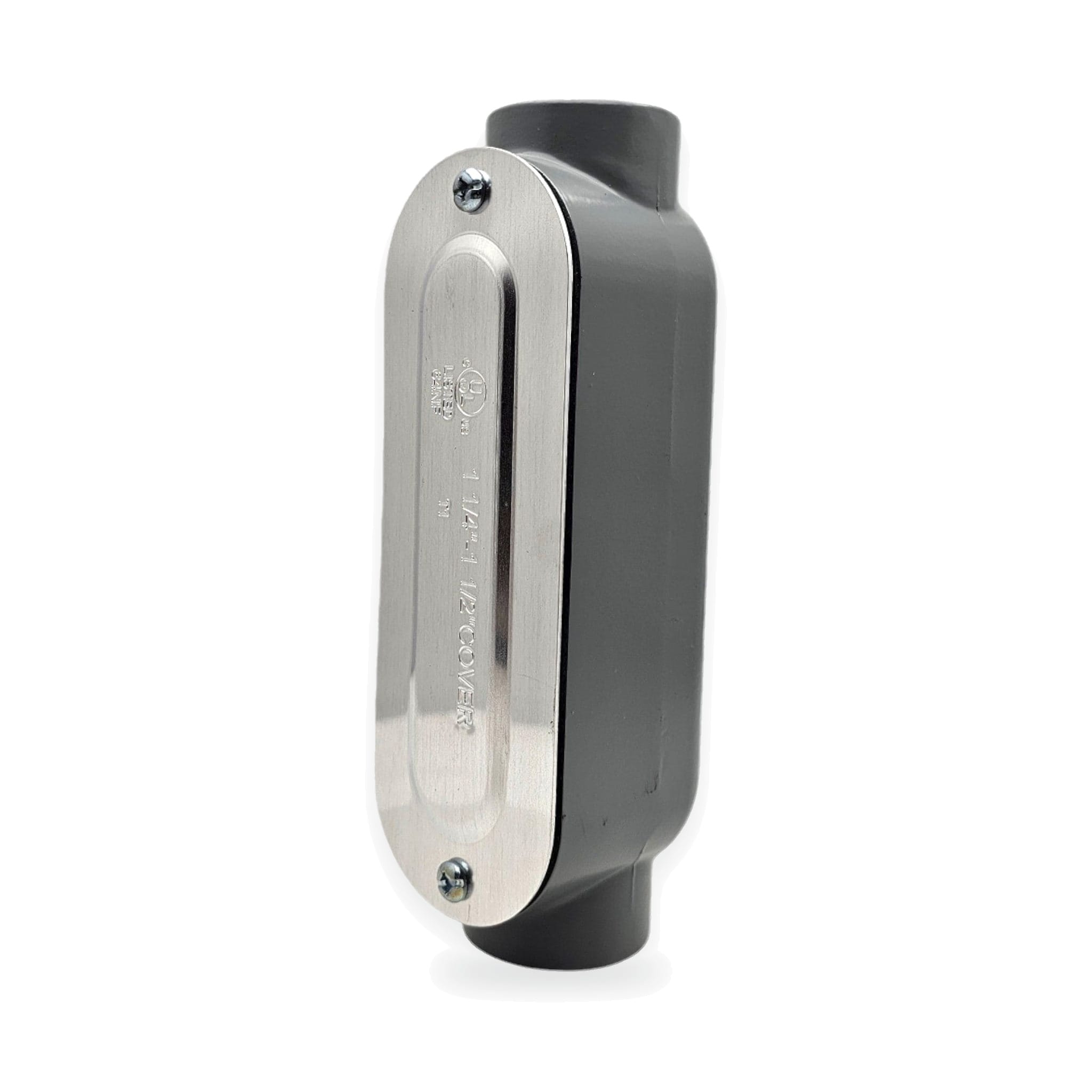

Conversions Tech C-Series 1-1/4″ Threaded Rigid Conduit Body — UL / CSA / RoHS
The Conversions Tech C-Series 1-1/4-inch Threaded Rigid Conduit Body provides a precision-engineered, straight-through junction for rigid metal conduit (RMC) and intermediate metal conduit (IMC) runs. Constructed from die-cast aluminum alloy with a powder-coated finish and neoprene-gasketed cover, it ensures a weather-sealed, code-compliant enclosure for pulling, splicing, and inspecting conductors while maintaining a continuous, grounded raceway.
Certified to UL and CSA standards and RoHS, the C-Series conduit body offers superior corrosion resistance and mechanical reliability in both indoor and outdoor environments. Its straight-through geometry maximizes internal volume for NEC bend radius and fill compliance, providing safe and efficient conductor management.
Key Technical Features
- Trade Size 1-1/4″ Threaded NPT Hubs: Vibration-proof threaded connection to 1.25″ RMC / IMC runs.
- C-Series Straight-Through Body: Ample interior space for NEC-compliant conductor bends and splices.
- Die-Cast Aluminum Alloy: Lightweight, corrosion-resistant, and non-sparking housing.
- Stamped Aluminum Cover + Neoprene Gasket: NEMA 3R / IP54 seal for dry and damp locations.
- ANSI 61 Grey Powder-Coat: UV-, salt-spray-, and chemical-resistant finish.
- UL Listed & CSA Certified: Meets UL 514A/B and CSA C22.2 No. 18 for North-American installations.
- Removable Cover: Provides easy access for inspection and wire management without system disassembly.
- Weatherproof Design: Rated NEMA 3R / IP54 for indoor and outdoor use.
- Quick Installation: Threaded NPT hubs ensure fast, secure mounting to rigid conduit systems.
Technical Specifications
| Series / Geometry | C-Series, Straight-Through Rigid Conduit Body |
| Trade Size | 1-1/4″ (32 mm) Threaded NPT Hubs |
| Hub Type | Threaded NPT Hubs (UL-Filed) |
| Body Material | Die-Cast Aluminum Alloy |
| Cover & Seal | Stamped Aluminum Cover + Neoprene Gasket |
| Environmental Rating | NEMA 3R / IP54 (Weather-Resistant) |
| Finish | TGIC Polyester Powder Coat, ANSI 61 Grey |
| Certifications | UL Listed • CSA Certified • RoHS Compliant • BABA Certified |
| Origin | USA *Stock product may be sourced elsewhere. |
Application Highlights

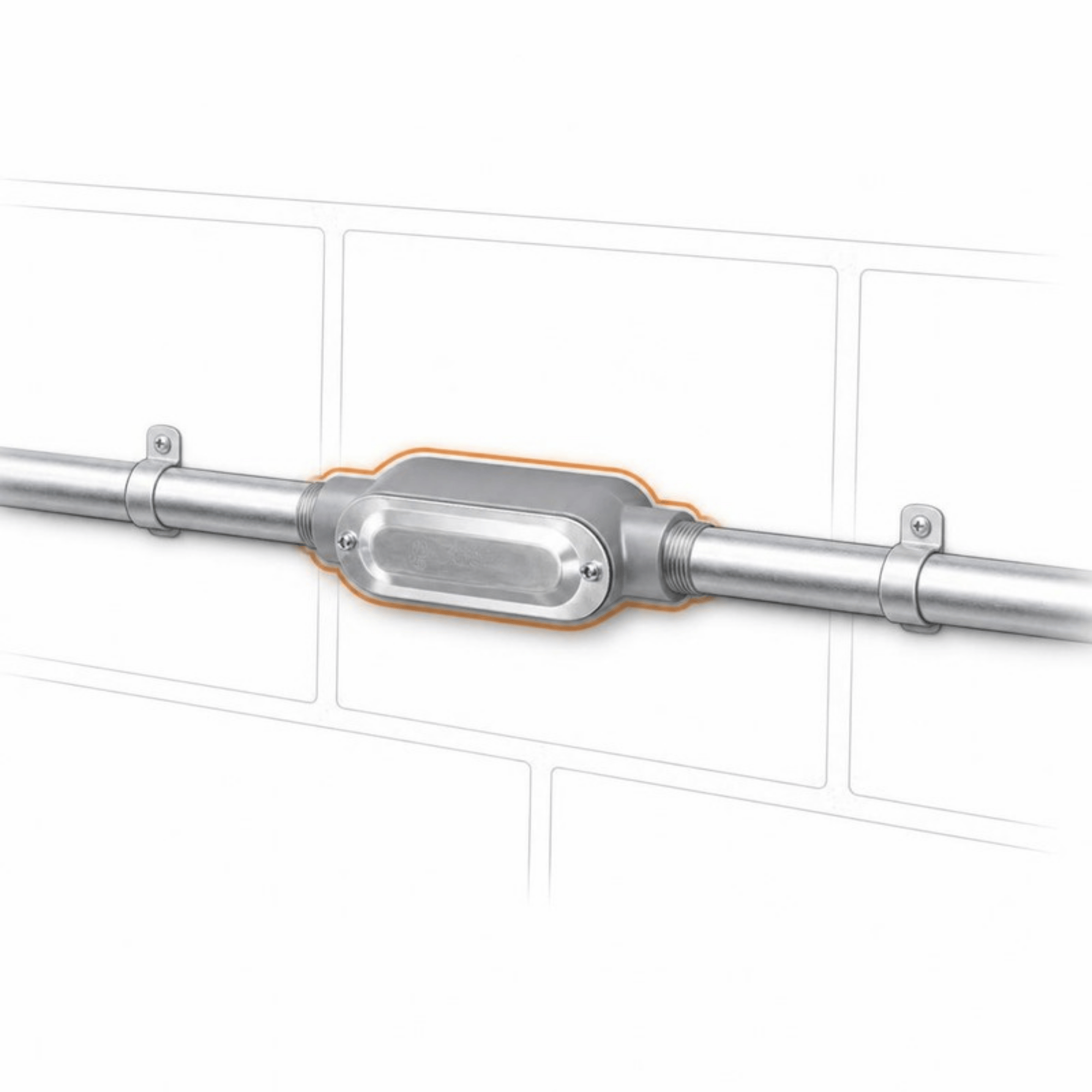

- Joins two straight runs of 1-1/4″ RMC / IMC conduit securely.
- Provides a code-approved chamber for wire pulling, splicing, and tapping.
- Removable cover allows inspection and system upgrades without cutting conduit.
- Ideal for service entrances, rooftop feeds, industrial raceways, and large-amp residential circuits.
The Conversions Tech C-Series 1-1/4″ Conduit Body offers a robust solution for straight-through conduit connections. With UL / CSA certification, NEMA 3R weatherproof rating, and a durable powder-coated finish, it delivers reliable performance and easy maintenance in any environment.
FAQs (Click to Expand)
1. What is a C-Series conduit body used for?
It joins two straight sections of rigid or intermediate metal conduit while providing a code-approved access point for wire pulling and inspection.
2. Is the C-Series 1-1/4″ body UL and CSA approved?
Yes — it is UL Listed and CSA Certified for North-American electrical installations.
3. Does it include a gasket and cover?
Yes — each unit comes with a stamped aluminum cover and factory-installed neoprene gasket for a NEMA 3R seal.
4. What is the material and finish?
It is made of die-cast aluminum alloy with a TGIC polyester powder coat in ANSI 61 grey for corrosion resistance.
5. Can it be used outdoors?
Yes — its NEMA 3R / IP54 rating and powder-coated finish make it suitable for outdoor use in damp locations.
7. Is this product RoHS compliant?
Yes — it meets RoHS directives for environmental safety and restricted substances.
8. What is the environmental rating?
It is rated NEMA 3R / IP54, providing weather and dust protection when the gasket is installed.
