C-Series 1" Threaded Rigid Conduit Body | UL/CSA Listed Aluminum
Shipping calculated at checkout
SKU: 675-30013
249 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

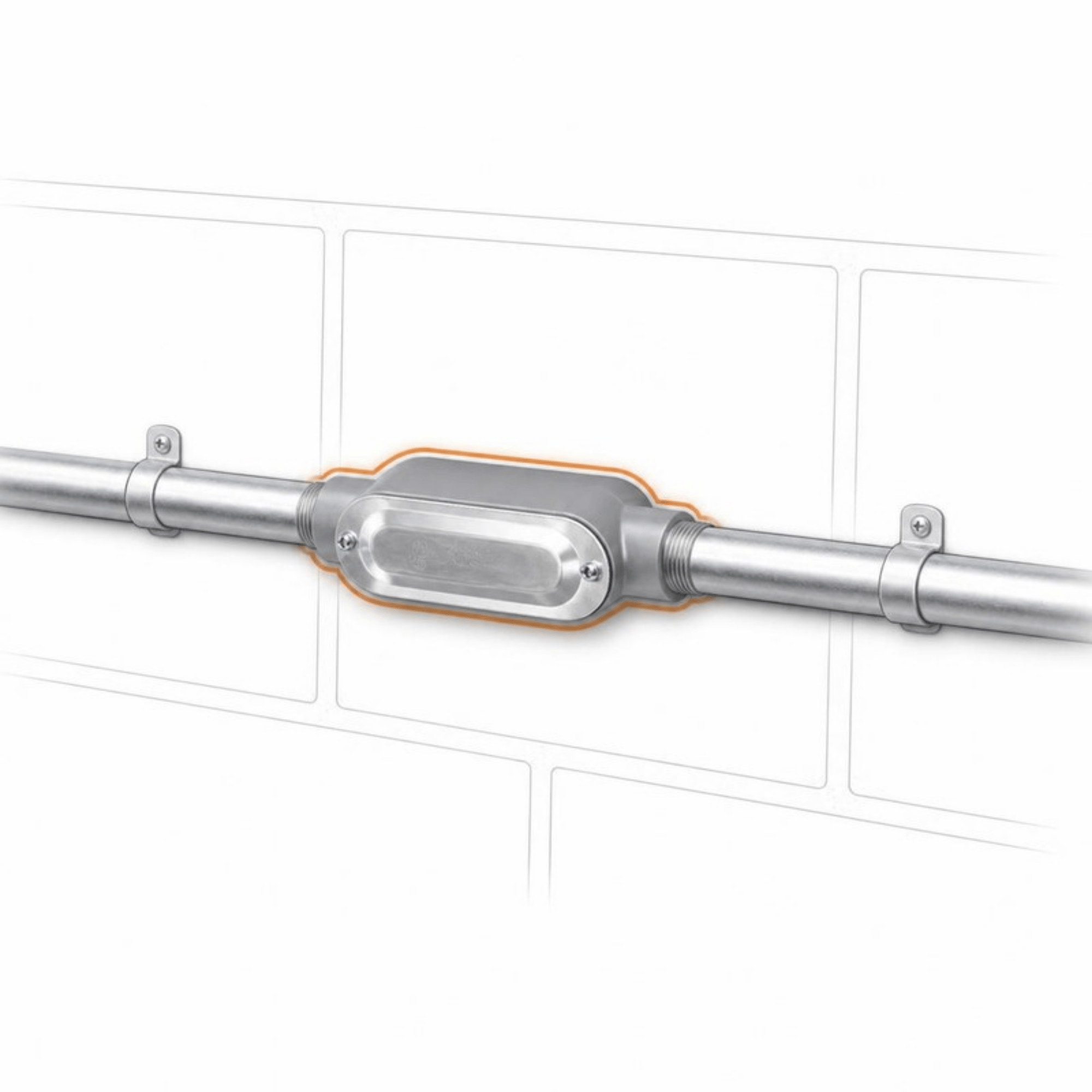

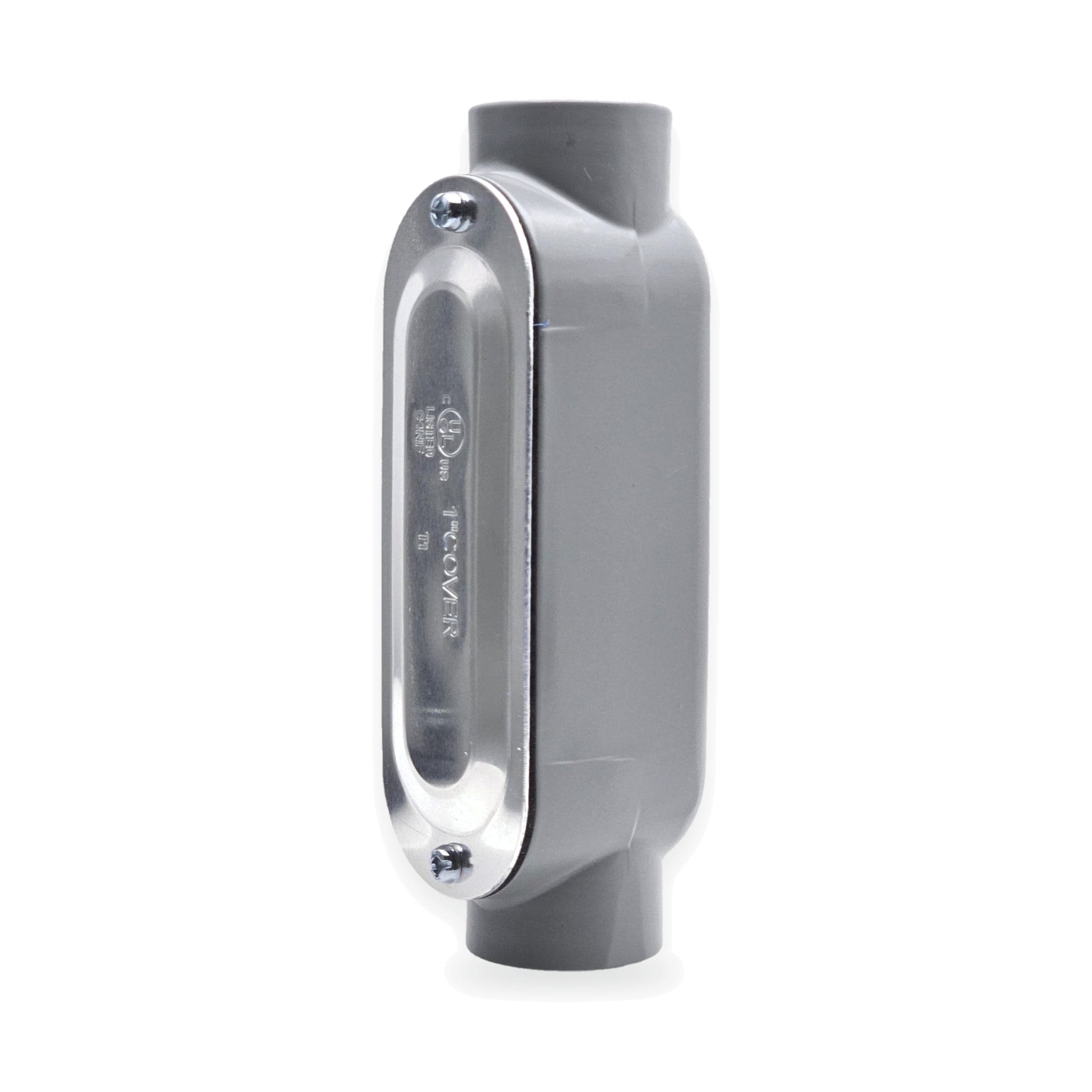

The C-Series 1" Threaded Rigid Conduit Body (RCB) is a UL Listed and CSA Certified inline conduit enclosure designed for Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC) systems. This C-configuration body connects two straight conduit sections, providing accessible entry for conductor pulling, limited splicing per NEC requirements, and routine system maintenance. The aluminum die-cast construction delivers corrosion resistance and structural integrity for industrial and commercial electrical installations.
Specifications
- Configuration: C-Type (connects two straight conduit sections)
- Thread Size: 1 Inch (threaded hubs)
- Material: Aluminum Die-Cast Construction
- Cover: Removable stamped aluminum cover with pre-installed rubber gasket
- Compatibility: Rigid Metal Conduit (RMC), Intermediate Metal Conduit (IMC)
- Listings: UL Listed and CSA Certified
- Finish: Corrosion-Resistant Aluminum
- Use Conditions: Dry locations (additional sealing required for wet conditions)
Cross-Reference
Equivalent to Crouse-Hinds and Appleton Form C rigid conduit bodies. Provides the same C-type inline configuration and UL/CSA compliance at competitive B2B pricing for electrical contractors and industrial procurement.
FAQ
How do I determine if a C-type body fits my conduit run?
C-type bodies are designed for straight inline connections between two conduit sections. Verify your RMC or IMC conduit size matches the 1" threaded hubs. The body dimensions must also accommodate the bend radius and wire fill requirements of your specific installation per NEC Article 314.
What code compliance applies to splicing inside this conduit body?
Splicing is permitted within conduit bodies per NEC 314.16, provided the total conductor fill does not exceed the body's volume allowance. The C-Series provides accessible space for limited splicing; verify your specific conductor count and size against NEC tables for compliance.
Can this be installed in outdoor or damp locations?
The C-Series ships rated for dry locations. For wet or damp environments, additional weatherproof sealing is required beyond the pre-installed rubber gasket. Consult NEC 314.15 and local AHJ requirements for approved sealing methods in your jurisdiction.
