Rigid Conduit Body LL Series 2" UL Threaded
Shipping calculated at checkout
SKU: 675-30026
91 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

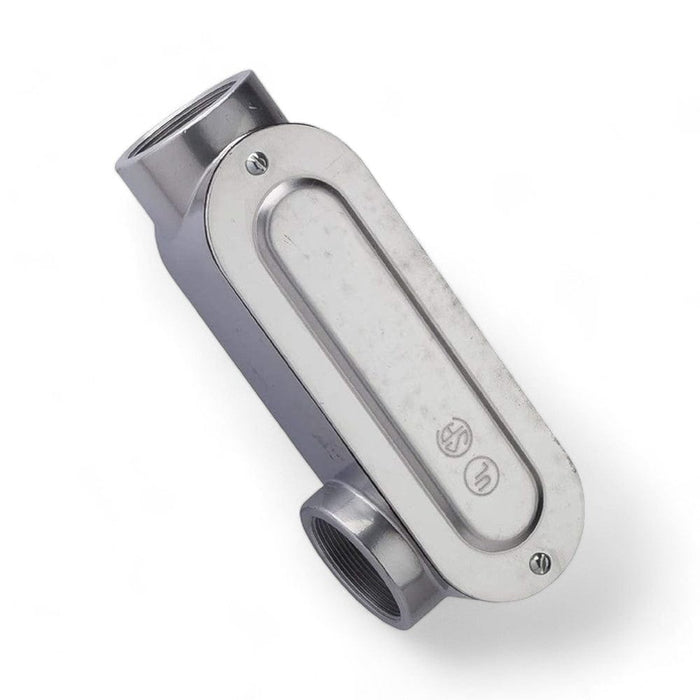

Conversions Tech LL-Series 2″ Rigid Conduit Body (RCB) — UL Listed, NEC, NEMA 3R & BABA Compliant
The Conversions Tech LL-Series 2-Inch Threaded Rigid Conduit Body (RCB) provides a dependable, code-compliant access point within rigid metal conduit (RMC) systems. Designed for 2″ conduit runs, this LL-configuration enclosure simplifies wire pulling, splicing, and tapping operations while maintaining weatherproof integrity. Built with a powder-coated die-cast housing and an integrated neoprene gasket, it ensures corrosion resistance and a watertight seal for both indoor and outdoor environments.
Fully UL Listed, NEC 2011 compliant, and NEMA 3R rated, the LL-Series 2″ conduit body offers reliability, safety, and accessibility for commercial, industrial, and residential wiring systems. In addition, it meets BABA (Build America, Buy America) standards for U.S. manufacturing and material sourcing.
Key Features
- LL Configuration: Long-body design enables efficient conduit routing and simplifies access for wire maintenance.
- 2″ Thread Size: Accommodates a wide range of heavy-duty conduit applications.
- UL Listed & NEC 2011 Compliant: Certified to meet stringent U.S. electrical safety and installation codes.
- NEMA 3R Weatherproof Rating: Suitable for indoor or outdoor use in wet or damp environments.
- Neoprene Gasket: Creates a water-resistant, dust-tight seal between the cover and body.
- Powder-Coated Finish: Provides corrosion protection and professional-grade appearance.
- Removable Cover: Allows quick access for inspection, pulling, or conductor adjustments.
- Durable Construction: Made from die-cast aluminum or galvanized steel for maximum longevity.
- BABA Compliant: Manufactured in accordance with Build America Buy America requirements.
- Easy Installation: Threaded female hubs ensure secure, leak-proof conduit connections.

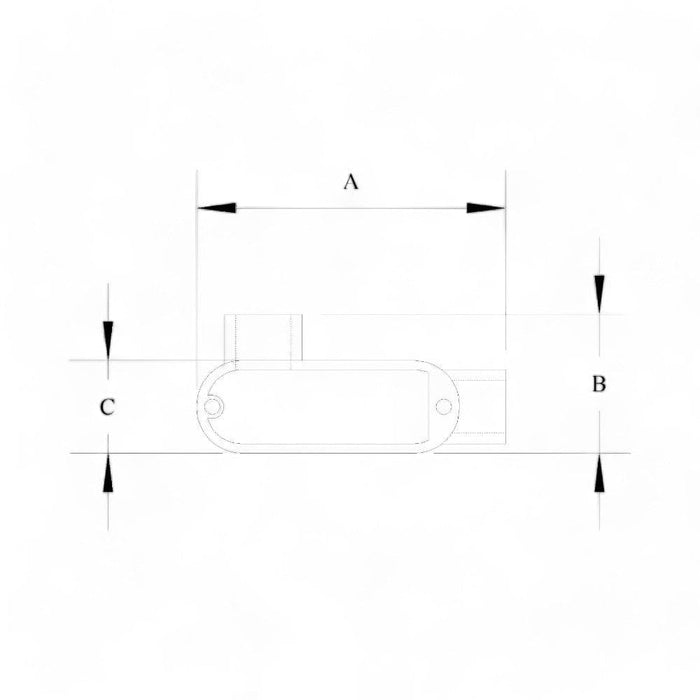

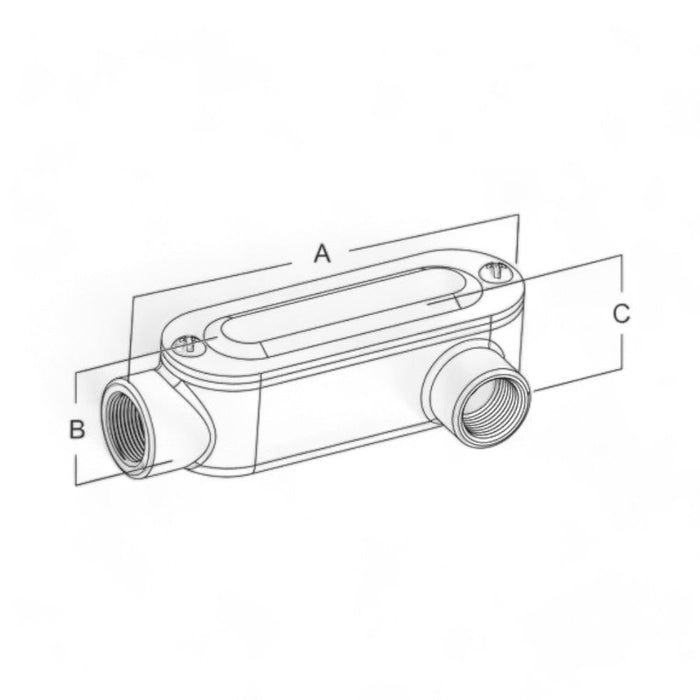

Technical Specifications
| Series | LL Series (Threaded Rigid Conduit Body) |
| Size | 2 inch (for 2″ rigid metal conduit) |
| Material | Die-Cast Aluminum / Steel |
| Configuration | LL-type body with extended interior for wire management |
| Connection Type | Threaded (FPT) hubs for secure conduit attachment |
| Enclosure Rating | NEMA 3R / IP54 Weather-Resistant |
| Certifications | UL Listed • NEC 2011 Compliant • NEMA 3R • BABA Certified |
| Finish | Powder-Coated, Corrosion-Resistant Exterior |
| Gasket Type | Integrated Neoprene Seal |
| Origin | USA *Stock product may be sourced elsewhere. |
Applications
- Wire pulling and splicing within conduit systems
- Creating branch circuits and taps from main runs
- Inspection and maintenance access points
- Indoor and outdoor NEMA 3R-rated installations
- Commercial, industrial, and residential electrical projects
The Conversions Tech LL-Series 2″ Conduit Body provides a safe, corrosion-resistant, and accessible solution for large conduit systems. Its robust construction, neoprene-sealed cover, and BABA-compliant manufacturing make it the professional choice for UL-certified conduit installations.
FAQs (Click to Expand)
1. What is an LL conduit body used for?
It provides a 180° turn and access for wire pulling or splicing in rigid metal conduit runs.
2. What conduit size does this fit?
This model fits 2″ rigid metal conduit (RMC) and IMC systems.
3. Is it UL Listed and NEC compliant?
Yes — it’s UL Listed and complies with NEC 2011 installation standards.
4. Does it meet BABA requirements?
Yes — the LL-Series is manufactured to Build America, Buy America (BABA) compliance standards.
5. Can it be used outdoors?
Yes — rated NEMA 3R / IP54 for weatherproof protection in outdoor or damp conditions.
6. Does it include a cover and gasket?
Yes — includes a powder-coated cover with an integrated neoprene gasket for tight sealing.
7. What materials are used?
Constructed from die-cast aluminum or galvanized steel for strength and corrosion resistance.
8. What finish does it have?
A durable powder-coated finish provides corrosion and UV protection for long-term durability.
9. Is this product rated for industrial use?
Yes — its rugged design and UL/NEMA certifications make it suitable for industrial environments.
10. Why choose Conversions Tech conduit bodies?
Conversions Tech products are UL-certified, BABA-compliant, and built to deliver long-lasting safety and performance in electrical installations.
