LR Series Threaded Rigid Conduit Body 3/4" | UL-Listed Aluminum
Shipping calculated at checkout
SKU: 675-30032
499 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

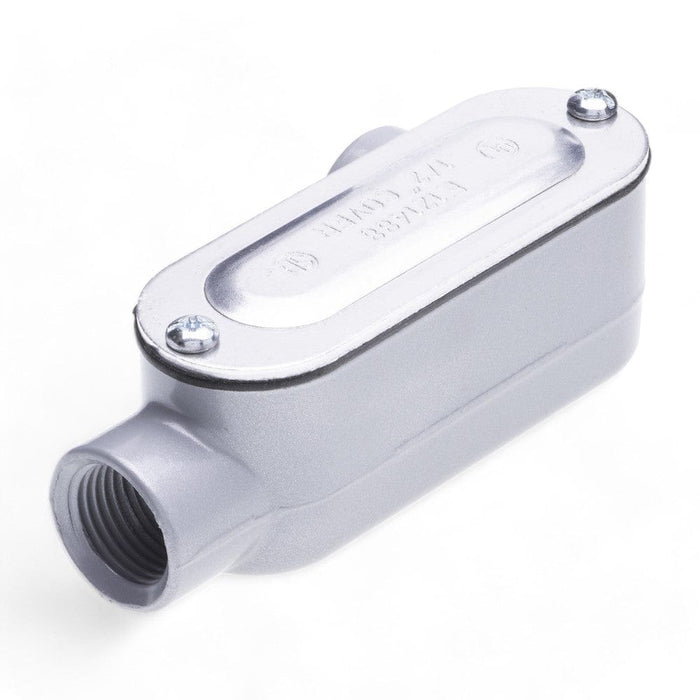

The LR Series 3/4-inch Threaded Rigid Conduit Body is an aluminum enclosure designed for 90-degree directional changes in Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC) raceways. Engineered by Conversions Tech's US engineering team and built to specification by certified partner factories, this conduit body provides wire access points for pulling, splicing, and inspection while maintaining raceway integrity in commercial and industrial electrical installations.
Specifications
- Type / Style: LR Series Threaded Rigid Conduit Body
- Trade Size: 3/4″ nominal diameter
- Material: High-strength aluminum body & cover
- Finish: Industrial-grade powder coat (UV & abrasion resistant)
- Gasket: Oil-, ozone-, & UV-resistant neoprene
- Hub Configuration: 1× EMT set-screw hub, 1× NPT threaded hub
- Environmental Rating: Wet-location & concrete-embed approved
- Certifications: UL Listed, NEC / NEMA compliant
- Compatible Conduit: RMC, IMC, EMT (via set-screw hub)
Cross-Reference
Equivalent to Crouse-Hinds and Appleton Form LR fittings. Provides the same 90-degree access point functionality for RMC/IMC systems at lower cost.
FAQ
What conduit types does this LR body accept?
The 3/4" LR body accepts RMC and IMC through the NPT threaded hub, and EMT through the set-screw hub. This dual-hub configuration allows direct EMT-to-RMC/IMC transitions without additional fittings.
Is this conduit body suitable for wet locations and concrete embedment?
Yes. The LR Series carries a wet-location rating and is approved for concrete-embed applications. The neoprene gasket provides environmental sealing, though proper torque on cover bolts is required to maintain the seal.

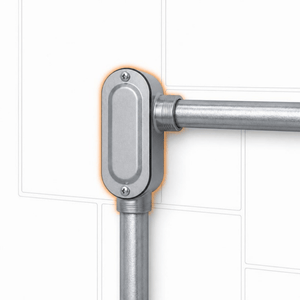

What bend radius does the LR configuration provide?
The LR form provides a 90-degree change in conduit direction. The internal cavity dimensions maintain NEC bend-radius requirements for 3/4" conductors, allowing compliant wire pulls without excessive strain on insulation.
