Round Weatherproof Box 4 in | 5 × ½″ Hubs | UL Listed | NEMA 3R
Shipping calculated at checkout
SKU: 211-35012
126 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

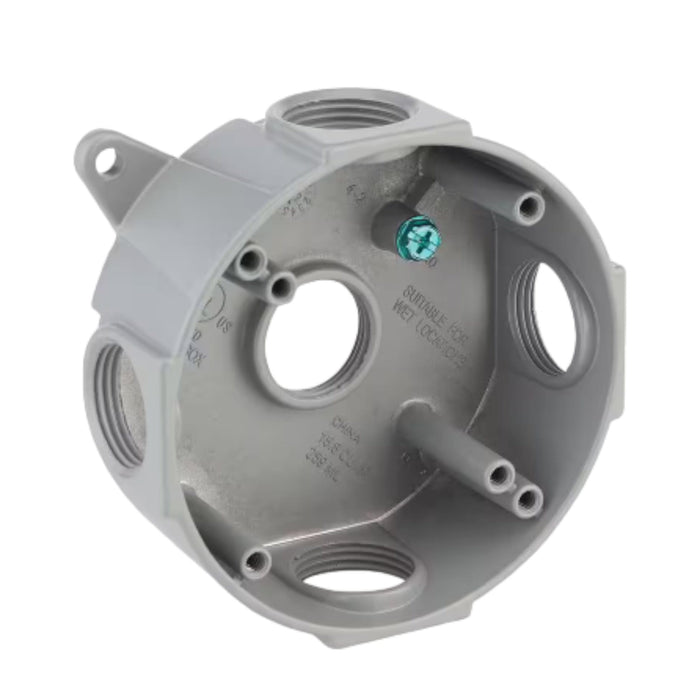

The Conversions Tech 4-inch round metallic weatherproof box is engineered for outdoor electrical installations requiring reliable environmental protection. Built from die-cast aluminum with a powder-coated gray finish, this enclosure provides NEMA 3R-rated protection against rain, ice, and external conditions. The five ½-inch threaded hubs (four side, one rear) accommodate flexible conduit routing for receptacles, switches, lighting junctions, and branch circuit connections in wet, damp, or dry locations. UL 514A Listed and compliant with NEC Article 314.
Specifications
- Box shape: 4-inch round
- Material: Die-cast aluminum with powder-coated gray finish
- Hub openings: 5 × ½″ threaded hubs (4 side + 1 rear)
- Dimensions: 4″ diameter × 1.6″ depth
- Included accessories: 4 closure plugs, pre-installed green ground screw
- Certifications: UL Listed (UL 514A), NEMA 3R rated
- Code compliance: NEC Article 314
- Applications: Outdoor receptacles, switches, junction points, lighting systems
Cross-Reference
Equivalent to standard round weatherproof outlet boxes from Crouse-Hinds and Appleton, offering comparable form factor and hub configurations at reduced cost.
FAQ
What conduit sizes does this box accept?
All five hubs are ½-inch NPT threaded. For ¾-inch or larger conduit, use reducing bushings or select a box with appropriately sized hubs.
Is this box suitable for GFCI receptacle installation?
Yes. The 4-inch round form factor and 1.6-inch depth accommodate standard GFCI receptacles. Verify adequate interior space for device wiring and confirm cover compatibility for the specific receptacle type.
Does NEMA 3R rating require a specific cover?
NEMA 3R protection applies to the complete installed assembly. The box requires a weatherproof cover rated for the application (while-in-use or standard) to maintain environmental protection per NEC 406.9.
