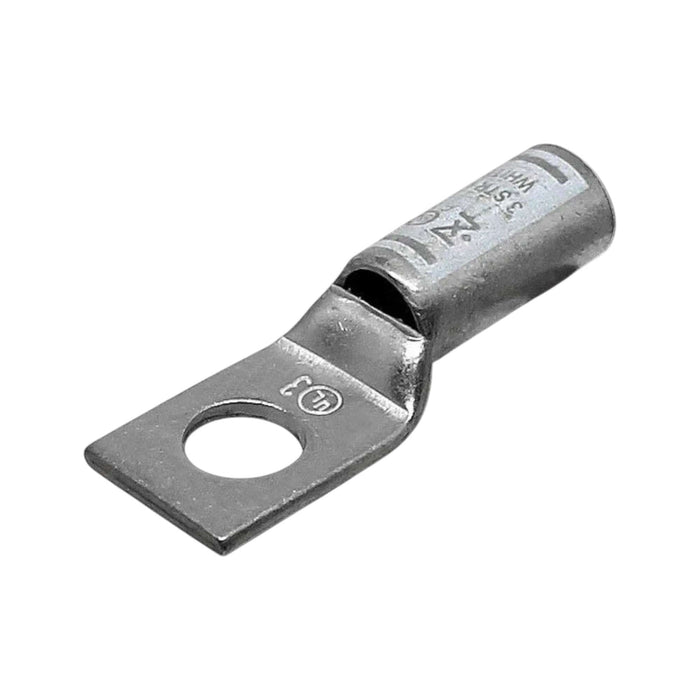

Copper Short Barrel One Hole Compression Lugs 3 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98010E
Out of stock
Open here
The Conversions Tech is a high-quality 1-hole copper compression lug designed for secure electrical connections. Featuring a 3 AWG conductor size, 1/2-inch bolt size, standard barrel, sight window, and tin-plated construction, this lug offers reliable performance and durability. The distinctive white color code ensures easy identification, making it an excellent choice for efficient electrical installations in a variety of applications.
Key Features
- High-Quality Copper Construction: Made from premium, tin-plated copper for superior conductivity and durability.
- 3 AWG Conductor Size: Specifically designed for 3 AWG cables, ensuring reliable and secure electrical connections.
- 1-Hole Configuration: Includes a single hole designed for a 1/2-inch bolt size, offering easy installation.
- Standard Barrel Design: The standard barrel provides a secure crimp connection, enhancing performance and reliability.
- Sight Window: Equipped with a sight window to facilitate accurate wire placement during installation.
- Distinctive White Color Code: The white color code ensures easy identification, streamlining the installation process.
-
Tin-Plated Finish: The tin-plated construction provides corrosion resistance, making the lug suitable for various environments and applications.
Technical Specifications
| Wire Size | 3 AWG |
|---|---|
| Stud Size | 1/2" Stud |
| Color | White |
| Overall Length (L) | 52.8mm (2.07") |
| Length 1 (L1) | 28.7mm (1.10") |
| Diameter (D) | 17.8mm (0.70") |
| Diameter 1 (D1) | 9.9mm (0.40") |
| Diameter 2 (D2) | 7.9mm (0.30") |
| Width (B) | 20.3mm (0.33") |
| Width 1 (E) | 13.1mm (0.51") |
| Thickness (F) | 1.6mm (0.06") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 170A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
