Copper Long Length Compression Connector 3 AWG

Availability:
900 in stock, ready to be shipped
Original price $3.55 - Original price $3.55
Original price
$3.55
$3.55 - $3.55
Current price $3.55
Request Distributor or Volume Pricing
SKU 212-5003

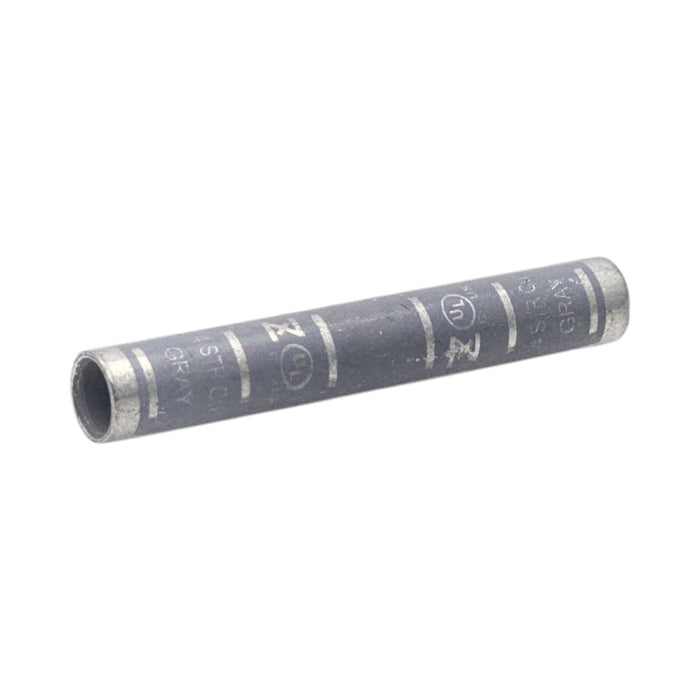

The Conversions Tech Compression Barrel Splice is a precision-engineered electrical connector designed for 3 AWG conductors. Featuring an extended barrel with a chamfered end, this splice ensures optimal electrical contact and mechanical retention. Made from seamless high-strength copper and electro-tin plated for corrosion resistance, it is built for durability in demanding environments.

Its 35 kV voltage rating makes it ideal for medium-voltage applications, while the industry-standard white color code allows for quick identification in electrical installations. Designed for grounding, bonding, and power distribution, this high-performance connector ensures secure and long-lasting electrical connections.

Technical Specifications

  • Conductor Compatibility: 3 AWG Copper
  • Material: Seamless, high-strength copper body with electro-tin plating
  • Voltage Rating: 35 kV
  • Barrel Type: Long barrel with chamfered end
  • Inner Diameter: 0.275 inches
  • Outer Diameter: 0.375 inches
  • Overall Length: 2.375 inches
  • Wire Stop: Center wire stop for precise conductor positioning
  • Temperature Rating: 90°C
  • Application: Grounding, Bonding, and Medium-Voltage Power Distribution
  • Color Code: White for easy identification

Applications & Use Cases

  • Power Transmission & Distribution: Ensures stable and efficient conductor joining in medium-voltage networks.
  • Electrical Panel Integration: Enhances wire continuity in panelboard and switchgear assemblies.
  • Grounding & Bonding Systems: Provides low-impedance grounding and secure electrical bonding.
  • Industrial & Utility Infrastructure: Used in substations, power grids, and high-load industrial systems.
  • Heavy-Duty Equipment Connections: Ensures secure interconnections in automation and control cabinets.
  • Corrosive Environment Applications: Tin plating prevents oxidation, extending operational lifespan.
  • High-Temperature Installations: Rated for 90°C operation in thermal-stressed environments.

Key Features & Advantages

  • High Conductivity Copper Body: Seamless construction minimizes resistance, optimizing performance.
  • Electro-Tin Plated Surface: Prevents oxidation for long-term durability.
  • Extended Barrel Design: Increases crimp contact area for enhanced mechanical retention.
  • Chamfered Entry: Facilitates easy conductor insertion and minimizes strand damage.
  • Precision Wire Stop: Prevents over-insertion, ensuring consistent compression.
  • Standardized Identification: White color coding streamlines installation verification.
  • Medium-Voltage Rated: Designed for secure connections in 35 kV applications.
  • Heat Resistance: Maintains structural integrity in high-temperature conditions.

The Conversions Tech Compression Barrel Splice is the ultimate choice for high-performance electrical connections, delivering robust mechanical strength, superior electrical continuity, and long-term reliability across various demanding applications.
