Copper Short Barrel One Hole Compression Lugs 3 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98010B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech is a high-quality 1-hole copper compression lug designed for reliable electrical connections. Featuring a 3 AWG conductor size, 1/4-inch bolt size, standard barrel, sight window, and tin-plated construction, this lug ensures optimal performance and long-lasting durability. The distinctive white color code provides easy identification, making it an ideal choice for efficient electrical installations in a variety of applications.
Key Features
- Premium Copper Construction: Made of high-quality tin-plated copper, ensuring superior electrical conductivity and long-lasting durability.
- 3 AWG Conductor Size: Designed for use with 3 AWG cables, providing secure and efficient electrical connections.
- 1-Hole Configuration: Features a single hole designed to fit a 1/4-inch bolt size, making installation quick and easy.
- Standard Barrel Design: The standard barrel design ensures a solid crimp connection for enhanced electrical stability and performance.
- Sight Window: Equipped with a sight window for accurate wire placement and visual confirmation during installation.
- White Color Code: The white color code aids in easy identification, improving efficiency and minimizing installation errors.
-
Corrosion-Resistant Tin Plating: The tin-plated finish offers excellent corrosion resistance, ideal for use in various environmental conditions and ensuring long-term reliability.

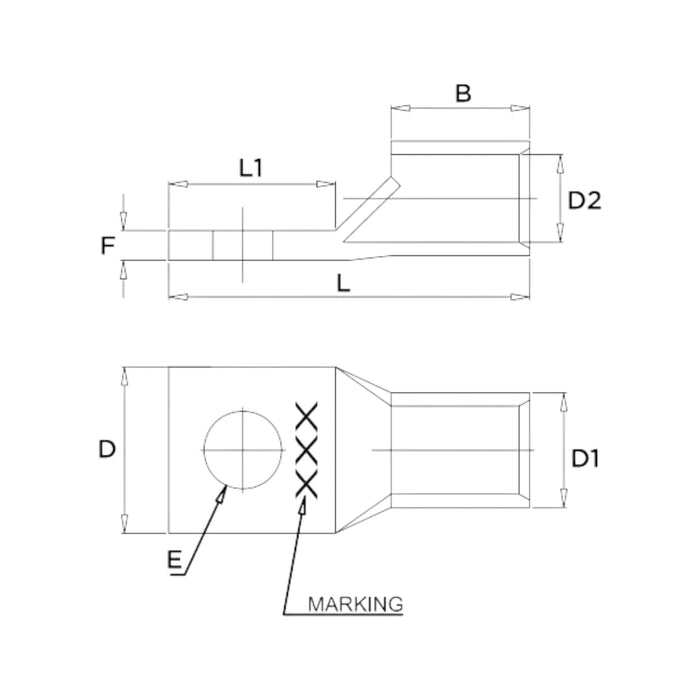

Technical Specifications
| Wire Size | 3 AWG |
|---|---|
| Stud Size | 1/4" Stud |
| Color | White |
| Overall Length (L) | 42.4mm (1.67") |
| Length 1 (L1) | 18.4mm (0.72") |
| Diameter (D) | 14.5mm (0.57") |
| Diameter 1 (D1) | 9.9mm (0.40") |
| Diameter 2 (D2) | 7.9mm (0.30") |
| Width (B) | 20.3mm (0.33") |
| Width 1 (E) | 7.1mm (0.28") |
| Thickness (F) | 2mm (0.08") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 170A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
