Two-Hole Long Barrel Compression Lug 1/0 AWG 1/2" Stud | 90°C 230A UL
Shipping calculated at checkout
SKU: 210-98097A
997 in stock
Open here

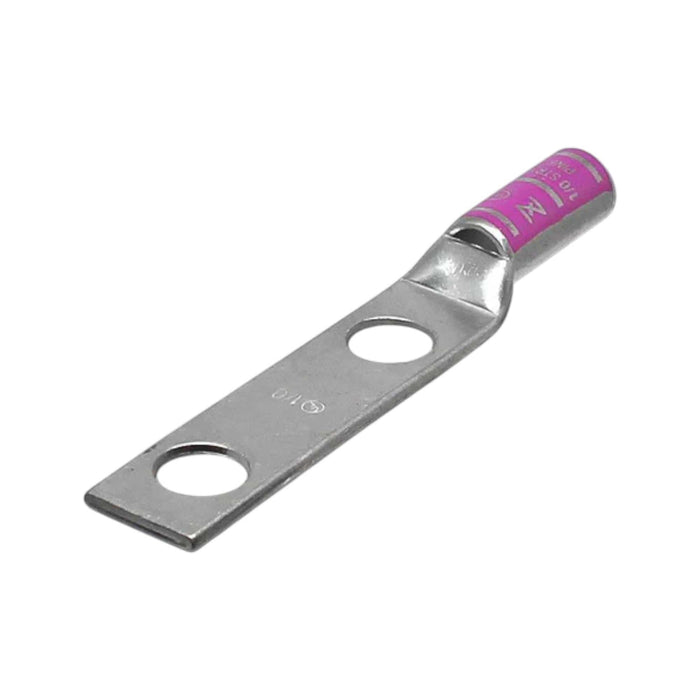

Two-hole long barrel compression lug for 1/0 AWG copper conductors. Designed for heavy-duty power distribution, transformer terminations, switchgear connections, and industrial control panels where dual-bolt mounting provides mechanical stability and load distribution. The extended barrel length maximizes contact surface area for reliable current transfer in high-vibration environments.
| Specifications (dimensions per manufacturer UL data sheet) | |
| Part number | 210-98097A |
| Manufacturer catalog number | LT1012 |
| Conductor | 1/0 AWG copper, Class B stranded through M (flex-rated) |
| Stud | 1/2 in, 2 hole, 1.75 in center spacing |
| Barrel | Long, 1.18 in (E), chamfered entry, inspection window |
| Overall length | 4.31 in (B) |
| Tongue width | 0.738 Inch |
| Tongue thickness | 0.125 Inch |
| Die | Index 42, Pink, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 600 V, 150 A at 75 C |
| Color code | Pink |
Specifications
- Wire Size: 1/0 AWG
- Stud/Bolt Size: 1/2"
- Hole Spacing: 1-3/4" (44.5mm)
- Material: Tin-plated copper
- Overall Length: 109.3mm (4.31")
- Neck Length (L1): 73.2mm (2.88")
- Neck Length (L2): 44.5mm (1.75")
- Outer Diameter: 18.4mm (0.73")
- Inner Diameter: 13.0mm (0.51")
- Hole Diameter: 10.2mm (0.40")
- Width: 29.8mm (1.18")
- Hole Spacing (E): 13.0mm (0.51")
- Thickness: 2.7mm (0.11")
- Color Code: Pink
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Ampacity: 230A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to long barrel two-hole compression lug form factors from major manufacturers. Dual-hole pattern matches standard 1-3/4" spacing used in power distribution equipment. Compatible with industry-standard tooling and dies for 1/0 AWG applications.
FAQ
What crimping tool is required for this lug?
Use industry-standard compression tools with dies rated for 1/0 AWG copper lugs. The long barrel design requires full-length crimping per manufacturer specifications to achieve the 230A ampacity rating.
Is this lug suitable for outdoor applications?
The tin-plated copper construction provides corrosion resistance. The 90°C temperature rating and 35kV voltage rating suit industrial environments. Verify specific environmental requirements against your application needs.
Why choose two-hole mounting over single-hole?
Two-hole mounting distributes mechanical stress across two bolts, reducing movement and fatigue in high-vibration applications such as transformers, generators, and heavy industrial equipment.
Specifications
| Part Number | 210-98097A |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 1/0 AWG, 1/2 Inch stud
CT P/N 210-98097A is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA252N |
| Panduit | LCC1/0-12-X |
| NSI Industries | L10N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
