Long Barrel Two-Hole Compression Lug 2/0 AWG 5/16" Stud | 35kV 265A UL/CE
Shipping calculated at checkout
SKU: 210-98097D
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

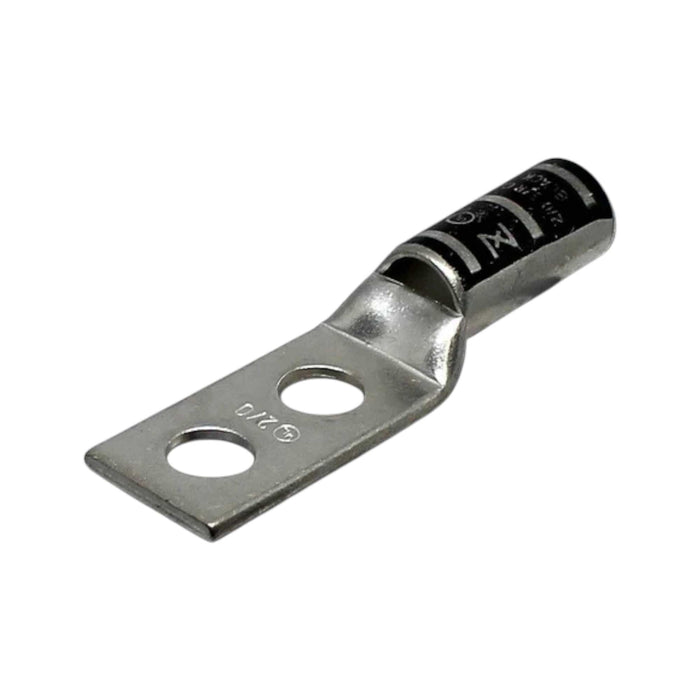

Long barrel two-hole compression lug engineered for 2/0 AWG copper conductors. Tin-plated copper construction with dual mounting holes for redundant mechanical connection to 5/16-inch studs. Designed for power distribution, switchgear terminations, and industrial control panels where extended barrel length accommodates additional crimp zones or insulation clearance.
Specifications
- Wire Size: 2/0 AWG
- Stud Size: 5/16"
- Material: Seamless electro-tin plated copper
- Overall Length (L): 81.3mm (3.20")
- Neck Length (L1): 44.5mm (1.75")
- Neck Length (L2): 25.4mm (1.00")
- Outer Diameter (D): 20.8mm (0.82")
- Inner Diameter (D1): 14.2mm (0.56")
- Hole Diameter (D2): 11.7mm (0.46")
- Width (B): 30.5mm (1.20")
- Hole Spacing (E): 8.8mm (0.35")
- Thickness (F): 2.5mm (0.10")
- Color Code: Black
- Configuration: Two-hole, long barrel, no sight window
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 265A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent form factor to Panduit LCC2/0-X and Burndy YAV2/0L2TC series long barrel two-hole compression lugs. Conversions Tech specification-engineered units deliver comparable electrical and mechanical performance at reduced procurement cost.
FAQ
What crimping tool is required for this long barrel lug?
Use a compression tool with dies rated for 2/0 AWG copper and sufficient throat depth for 81.3mm overall length. Long barrel designs typically require two crimp locations; follow the lug's marked crimp zones and your tool manufacturer's instructions.
Does the 35kV rating apply to medium-voltage applications?
The 35kV rating indicates maximum voltage withstand capability. Verify application suitability against NEC Article 310 and local utility standards. This lug is commonly deployed in low-voltage industrial systems with high fault current potential.
Why two holes instead of one?
Dual-hole mounting distributes mechanical load and provides redundant electrical contact. Required in seismic zones, high-vibration environments, and where single-bolt failure would create safety hazards. Hole spacing of 8.8mm matches standard busbar drilling patterns.
