Long Barrel Two-Hole Compression Lug 2/0 AWG 1/4" Stud | 35kV 265A UL/CE
Shipping calculated at checkout
SKU: 210-98097B
996 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

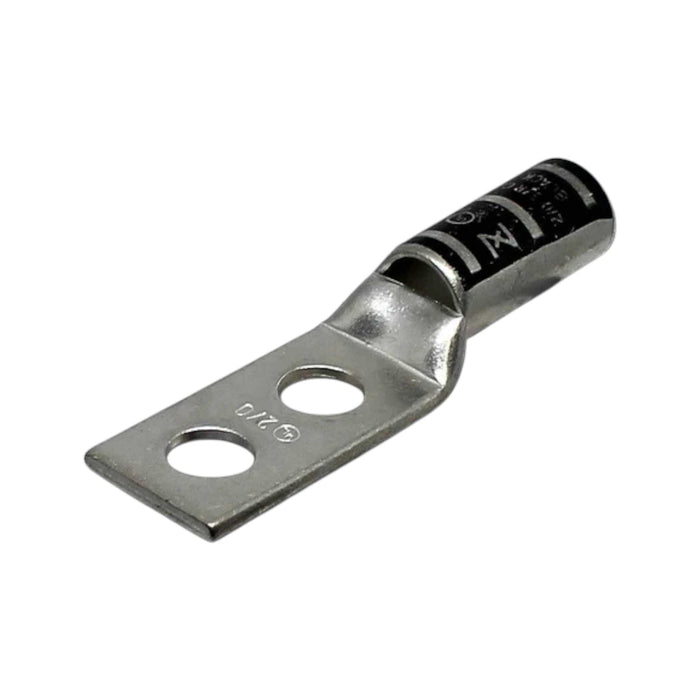

Long barrel two-hole compression lug engineered for 2/0 AWG copper conductors. Dual-hole configuration provides redundant termination points for high-current applications requiring mechanical reliability. Tin-plated copper construction delivers corrosion resistance and stable contact resistance over service life. Rated for 35 kV and 265A maximum with 90°C temperature rating. Black color-coded for circuit identification. Designed for use in switchgear, panelboards, power distribution blocks, and transformer terminations where extended barrel length accommodates multiple compression crimps.
Specifications
- Wire Size: 2/0 AWG
- Stud Size: 1/4"
- Configuration: Two-hole, long barrel
- Material: Tin-plated copper
- Overall Length (L): 74.3mm (2.93")
- Neck Length (L1): 37.5mm (1.48")
- Neck Length (L2): 19.1mm (0.75")
- Outer Diameter (D): 20.8mm (0.82")
- Inner Diameter (D1): 14.2mm (0.56")
- Hole Diameter (D2): 11.7mm (0.46")
- Width (B): 30.5mm (1.20")
- Hole Spacing (E): 7.1mm (0.28")
- Thickness (F): 2.5mm (0.10")
- Voltage Rating: 35 kV
- Maximum Ampacity: 265A
- Temperature Rating: 90°C
- Color Code: Black
- Sight Window: No
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to long-barrel two-hole compression lug configurations from major manufacturers. Form factor compatible with standard industry tooling and installation practices.
FAQ
What crimping tool is required for this long barrel lug?
Use a compression tool with dies rated for 2/0 AWG copper and long barrel configurations. The extended barrel length requires multiple crimp positions per manufacturer tooling guidelines. Verify die compatibility with 20.8mm outer diameter.
Does the dual-hole design affect ampacity?
The 265A rating applies to the lug regardless of single or dual stud mounting. Both holes accommodate 1/4" fasteners. Torque to manufacturer specifications for the stud size and material.
Is this suitable for medium voltage applications?
The 35 kV rating supports medium voltage terminations when installed with appropriate insulation and clearances per NEC and local codes. Verify system voltage and insulation coordination requirements.
