Copper Long Barrel Two Hole Compression Lugs 750 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98109B
30 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

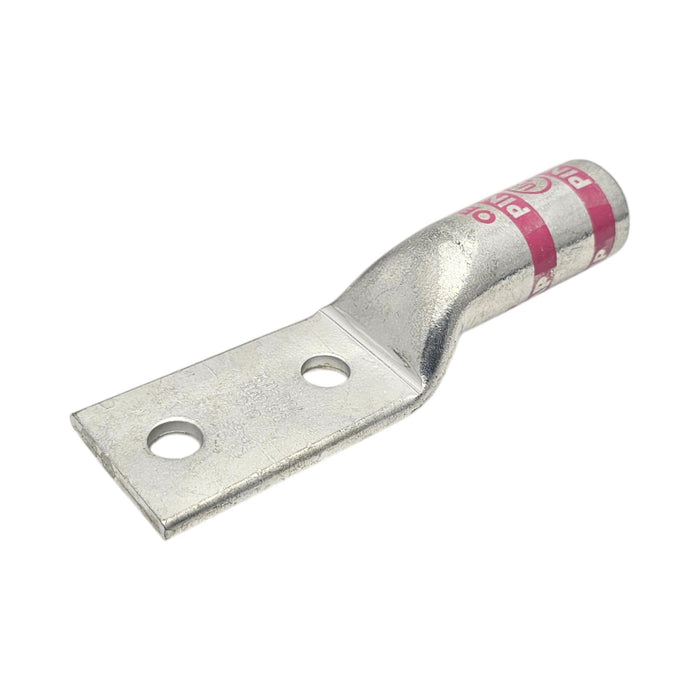

700 MCM Copper Long-Barrel Two-Hole Compression Lug – 1/2" Stud, 1.75" Spacing | Red | Conversions Tech™
The Conversions Tech™ 700 MCM Long-Barrel Two-Hole Compression Lug is a precision-engineered connector designed for high-ampacity terminations in utility, renewable energy, and industrial power-distribution systems. Manufactured from seamless C11000 electrolytic-grade copper and finished with an electro-tin coating, this lug provides exceptional conductivity, corrosion resistance, and vibration-proof performance. Its extended long-barrel design ensures dual crimps that meet UL pull-out requirements while maintaining ultra-low resistance across demanding electrical installations.
Rated for 600 V to 35 kV and -40°C to +90°C, this lug is UL Listed and RoHS Compliant, making it an ideal solution for mission-critical grounding, bus connections, and high-current applications.
Key Performance Features
- Premium C11000 Copper: < 0.04 Ω·mm²/m resistivity ensures superior conductivity and minimal energy loss.
- Electro-Tin Plating: Provides excellent oxidation resistance and improved solder flow for high-performance terminations.
- Long-Barrel Design: 2.875 in barrel accommodates dual Anderson-style crimps for maximum strength and heat dissipation.
- Dual 1/2" Stud Holes: 1.75" center-to-center spacing conforms to NEMA drilling standards.
- Chamfered Cable Entry: Guides 700 MCM (750 kcmil) conductors smoothly into place, preventing strand splay.
- Wide Voltage & Temperature Rating: UL listed for 600 V–35 kV and operational between -40°C to +90°C.
Detailed Specifications
| Conductor Size | 700 MCM (750 kcmil) Stranded Copper |
| Barrel Length | 2.875 in (73.0 mm) – Long Barrel |
| Overall Length | 6.777 in (172.2 mm) |
| Stud Holes | 2 × 0.531 in (fits 1/2 in bolts) |
| Hole Spacing | 1.75 in (44.5 mm) center-to-center |
| Pad Dimensions | 3.00 L × 1.901 W × 0.282 T in |
| Material / Finish | Seamless High-Strength Copper, Electro-Tin Plated |
| Color Code | Red (Die Index I-106) |
| Voltage Range | 600 V AC to 35 kV AC |
| Temperature Rating | -40°C to +90°C (194°F) |
| Certification | UL Listed, RoHS Compliant |
| Strip Length | 2.937 in (74.6 mm) |
Ideal Applications
- Utility-Scale Solar PV: Perfect for grounding and combiner box terminations.
- Medium-Voltage Switchgear: Provides reliable connections in substation and bus systems.
- Data Centers: Designed for UPS, ESS, and battery rack interconnections.
- Industrial MCCs: Supports motor control centers and heavy-duty busways.
- OEM Power Systems: Used in PDUs, panelboards, and custom enclosures.
Frequently Asked Questions (FAQs)
1. What conductor size does this lug support?
This lug is built for 700 MCM (750 kcmil) stranded copper conductors.
2. Is it UL Listed?
Yes, this product is UL Listed and RoHS compliant, ensuring verified quality and safety.
3. Can this lug be used outdoors?
Yes, the electro-tin plating provides long-term corrosion resistance for both indoor and outdoor installations.
4. How many crimps are required for installation?
Two full Anderson-style crimps are recommended for each conductor to meet UL and NEC standards.
5. Which tool and die should I use?
Use UL-approved compression tools with die index I-106 for precision and compliance.
