Hydraulic Compression Lug Crimper and Cable Cutter, 2-in-1 Battery Tool | 12-Ton, 6 AWG to 750 kcmil, Cuts to 1-1/8 in | PRO6000

The PRO6000 is a 2-in-1 battery hydraulic compression lug crimper and cable cutter. One 18 V tool body takes a 12-ton crimping head for copper and aluminum compression lugs and splices from 6 AWG to 750 kcmil, and an interchangeable cutting head that cuts copper and aluminum cable up to 1-1/8 in. Cut the conductor and crimp the lug with one battery tool instead of carrying a hand crimper, a manual hydraulic pump and a cable cutter.

Why crews pick a battery crimper and cutter combo

• Two tools in one case. Swap between the crimp head and the cutter head on the same body.
• Battery hydraulic power. A full 12-ton crimp in about 4 to 6 seconds with no pumping, so the last lug of the day gets the same crimp as the first.
• Standard 12-ton U-dies. Uses the same die index and color code as the major lug brands, so dies you already own fit. See our dies by index and the 19-piece die kit.
• Two 18 V lithium-ion batteries and a charger, so one charges while the other works.
• Ready to work: tool, crimp head, cutting head, dies, batteries, charger and strap in a hard case.

Specifications

Where it gets used

• Solar and battery storage: inverter, combiner and battery bank lugs, with the cable cut to length on site.
• EV charging and service upgrades: 2 AWG to 4/0 feeders and grounding.
• Industrial and panel shops: busbar, motor and transformer terminations.
• Utility and data center crews: ground grids, two hole lugs on ground bars and switchgear.

Which die do I need?

Match the die index stamped on the lug. Common sizes: 6 AWG index 24 (blue), 4 AWG index 29 (gray), 2 AWG index 33 (brown), 1/0 index 42 (pink), 4/0 index 54 (purple). Full list in the compression lug die chart.

FAQ

Can one tool crimp lugs and cut cable?

Yes. The PRO6000 uses interchangeable heads: a 12-ton crimping head for compression lugs and a cutting head for copper and aluminum cable up to 1-1/8 in.

Will my existing 12-ton dies fit?

It takes standard 12-ton U-style dies. Dies with the same index and color code as the major lug brands fit.

Does it crimp aluminum lugs?

Yes, copper and aluminum compression lugs and splices from 6 AWG to 750 kcmil with the matching die.

Battery crimper or manual hydraulic?

For a few crimps a week the manual 12-ton ProCrimp12T is enough. For daily crimping choose a battery tool: the PRO6000 if you also cut cable, or the PowerProFlex12T for crimping only. Compare all three in hydraulic crimping tools.

Lugs and splices to go with it

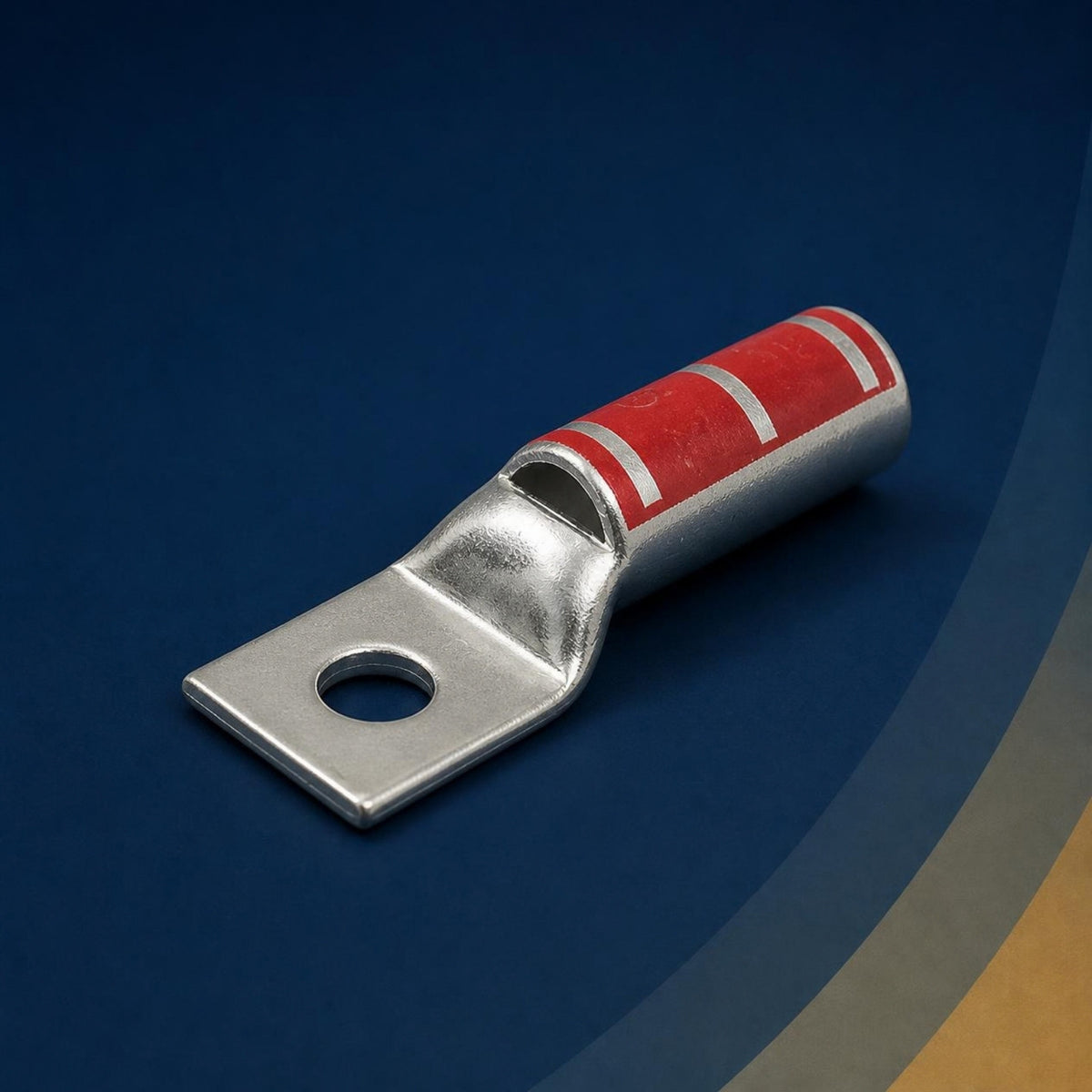

Copper compression lugs · two hole lugs · compression splices · compression grounding connectors

Same-day shipping on in-stock items. Trade accounts get contractor pricing and net terms through the trade program. Call (307) 206-0534 or email CS@conversionstech.com.
