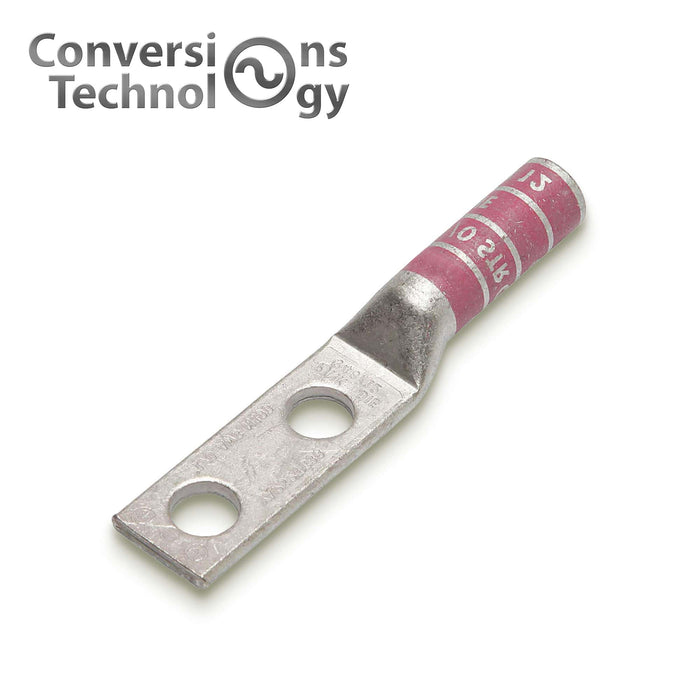

COPPER LONG BARREL TWO HOLE COMPRESSION LUGS 1/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98095A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech copper compression lug designed for secure and efficient electrical connections with 1/0 AWG conductors. Its features include a 1/4-inch bolt size, 1-inch hole spacing, a long barrel, and a pink color code for easy identification, making it a reliable choice for various electrical applications.
Key Features
- Designed for 1/0 AWG conductors - Specifically engineered for 1/0 gauge cables, ensuring a secure and efficient connection.
- 1/4-inch bolt size - Standard bolt size for a stable, reliable attachment.
- 1-inch hole spacing - Provides precise alignment for secure and accurate installation.
- Long barrel construction - Ensures a strong, durable, and stable electrical connection.
- Pink color code - Easily identifiable for quick and accurate conductor size identification during installation.
-
Reliable choice for electrical applications - Ideal for use in various demanding electrical environments, providing secure, long-lasting connections.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Pink |
| Overall Length | 3.793 Inches |
| Barrel Length | 1.5 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1/0 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-42 |
| Pad Size | 1.937 Inches (L) x 0.738 Inch (W) x 0.125 Inch (Thk) |
| Pad Hole(s) | 2 |
| Pad Hole Spacing | 5/8 Inch |
| Barrel Type | Long |
| ID X OD | 0.39 Inch x 0.515 Inch |
| Cable Entry Type | Chamfered Entry |
| Temperature Rating | 90°C |
4 Reasons Pros Buy Direct from Conversions Tech
Headquartered in business-friendly Wyoming, we design, test, and ship every product from inside the United States—delivering genuine “Made-for-America” quality without the big-box markup.
Our in-house team owns every CAD file, mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. Vertical control means tighter tolerances, UL-listed safety, and up to 30 % lower cost than private-label imports.
Thousands of SKUs sit ready to go. Orders placed by 2 p.m. ship the same day, keeping contractors, OEMs, and distributors on schedule.
Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.
Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
