Short Barrel Copper Compression Lug 3/0 AWG 1/2" Bolt | 90°C 310A
Shipping calculated at checkout
SKU: 210-98027
62 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

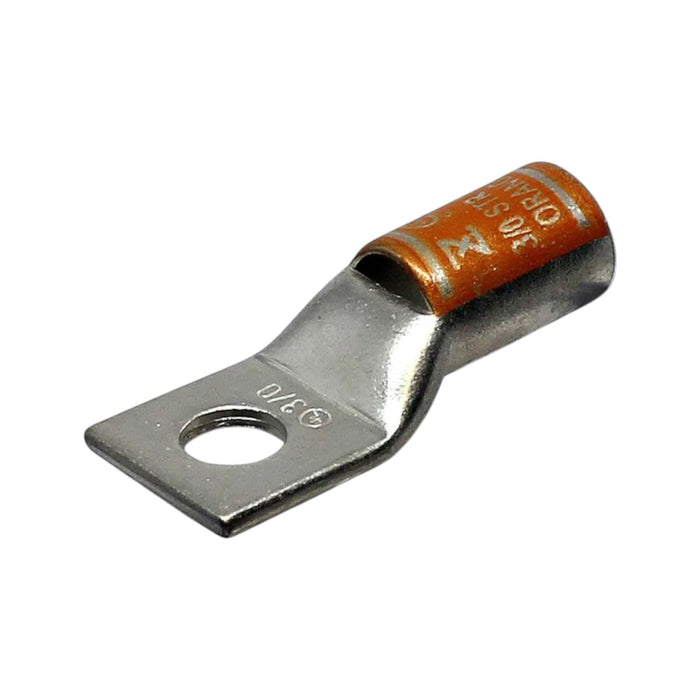

The Conversions Tech Copper Short Barrel One-Hole Compression Lug is engineered for secure termination of 3/0 AWG conductors in power distribution, industrial machinery, renewable energy systems, electrical substations, and data center applications. The short barrel design with chamfered cable entry facilitates installation in confined spaces while maintaining full current-carrying capacity. A sight window enables visual verification of conductor insertion depth before compression. The electro-tin plated copper construction provides corrosion resistance and maintains conductivity over extended service life. Temperature rated to 90°C with a 35kV voltage rating and 310A maximum ampacity.
Specifications
- Conductor Size: 3/0 AWG
- Bolt/Stud Size: 1/2"
- Configuration: 1-hole
- Barrel Type: Standard (short barrel)
- Material: Tin-plated copper
- Color: Orange
- Overall Length (L): 62.0mm (2.40")
- Barrel Length (L1): 28.7mm (1.10")
- Outer Diameter (D): 23.0mm (0.90")
- Inner Diameter (D1): 15.7mm (0.60")
- Inner Diameter 2 (D2): 13.0mm (0.50")
- Pad Length (B): 24.4mm (0.96")
- Pad Width (E): 13.1mm (0.50")
- Pad Thickness (F): 2.7mm (0.10")
- Cable Entry: Chamfered
- Sight Window: Yes
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 310A
- UL Approved: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to short barrel one-hole compression lug form factors from major manufacturers including Panduit, Burndy, and Ilsco. Conversions Tech lugs are engineered to US specifications and built to equivalent dimensional and electrical performance standards at reduced procurement cost.
FAQ
What crimping tool and die are required for 3/0 AWG compression lugs?
Use an industry-standard hydraulic crimping tool with dies sized for 3/0 AWG copper compression terminals. Verify die index matches the lug barrel diameter (D: 23.0mm / 0.90"). The sight window confirms full conductor insertion before crimping.
Is this lug suitable for 35kV medium voltage applications?
The 35kV voltage rating applies to the lug insulation and spacing characteristics. Actual system voltage capability depends on complete termination assembly, insulation, and installation per applicable codes. The 310A ampacity rating is the primary operational limit for 3/0 AWG conductor sizing.
Why is the color orange?
The orange color code identifies 3/0 AWG conductor compatibility per industry convention, enabling quick field verification against other lug sizes. The tin-plated finish provides the electrical contact surface; color coding does not affect conductivity or corrosion resistance.
