2-Hole Copper Compression Lug 2/0 AWG 5/16" Bolt | Short Barrel, Tin-Plated
Shipping calculated at checkout
SKU: 210-09940
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

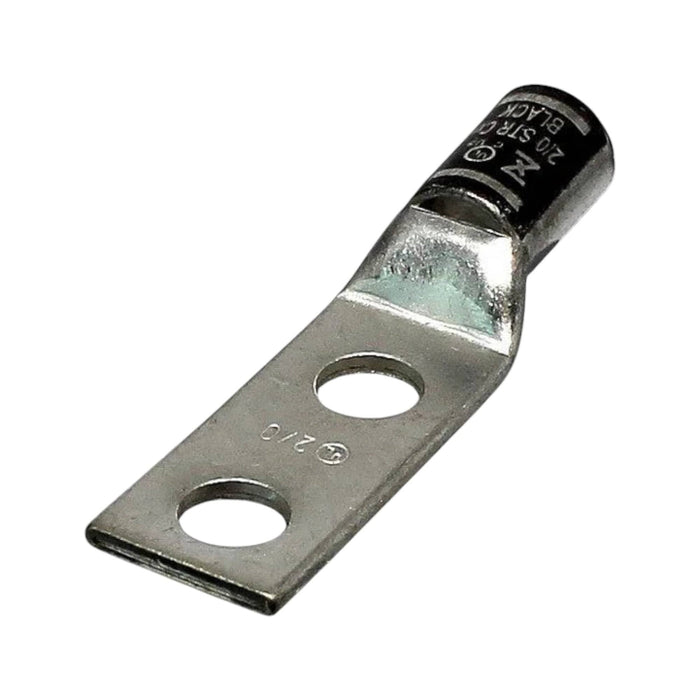

The Conversions Tech copper short barrel two-hole compression lug terminates 2/0 AWG conductors in high-current electrical systems. The dual-hole configuration with 5/16-inch bolt size provides mechanical stability for busbar and equipment grounding connections. A sight window enables visual verification of proper conductor insertion before crimping. The tin-plated finish resists oxidation in standard industrial environments. Black color coding identifies the 2/0 AWG size for inventory management and field verification.
Specifications
- Conductor size: 2/0 AWG
- Bolt hole size: 5/16 inch
- Configuration: 2-hole
- Barrel type: Short barrel
- Overall length (L): 100.8mm (3.96")
- Barrel length (L1): 73.2mm (0.84")
- Additional length (L2): 44.4mm (1.75")
- Finish: Tin-plated
- Color code: Black
- Sight window: Included for visual inspection
Cross-Reference
Equivalent to standard two-hole copper compression lug configurations from major manufacturers. Form factor compatible with tooling and installation practices established for Panduit, Burndy, and Ilsco short barrel two-hole lugs.
FAQ
What crimp tool is required for 2/0 AWG short barrel lugs?
Use a compression tool with a die set rated for 2/0 AWG copper lugs. Verify die compatibility with short barrel geometry. The sight window confirms full conductor insertion before crimping.
Does the 5/16-inch bolt hole fit standard hardware?
Yes. The 5/16-inch hole accepts standard 5/16-18 or 5/16-24 bolts with appropriate washers. Torque per NEC or equipment manufacturer specifications.
Is the tin plating sufficient for outdoor applications?
The tin-plated finish provides corrosion resistance for standard industrial environments. For severe or marine environments, additional protective measures may be required per local code and application requirements.
