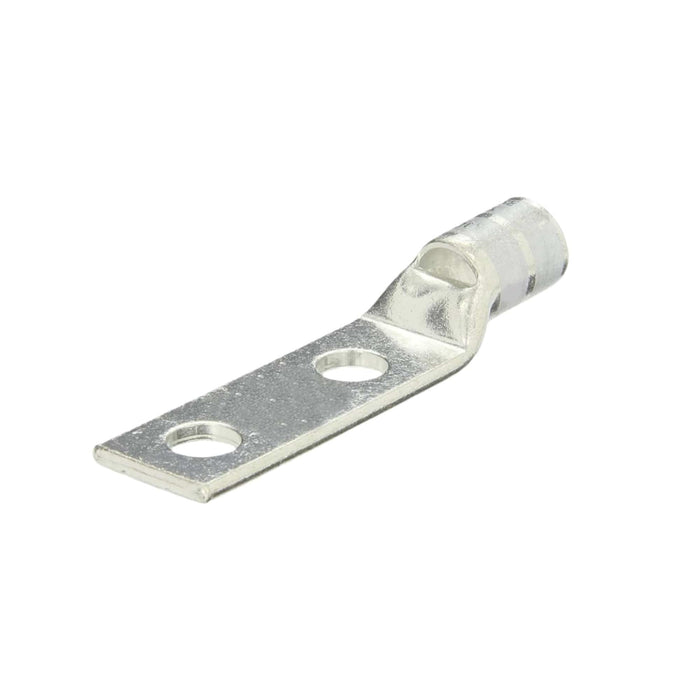

Two-Hole Copper Compression Lug 250 MCM 1/4" Bolt | 35kV 90°C
Shipping calculated at checkout
SKU: 210-98056
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech two-hole copper compression lug is engineered for secure termination of 250 MCM copper conductors in medium-voltage power distribution, switchgear, and industrial control panels. The short barrel design with chamfered entry facilitates straightforward conductor insertion, while the dual-hole pad provides redundant bolted connections for critical applications. A sight window enables visual confirmation of full conductor insertion prior to crimping. The electro-tin plating delivers corrosion resistance for extended service life in standard electrical environments.
Specifications
- Conductor Size: 250 MCM
- Conductor Material: Copper
- Pad Holes: 2
- Stud/Bolt Size: 1/4 inch
- Pad Hole Spacing: 1 inch
- Pad Dimensions: 1.937" L x 1.088" W x 0.157" Thk
- Barrel Type: Standard
- Barrel Dimensions: 0.593" ID x 0.750" OD
- Barrel Length: 1.063 inches
- Barrel Entry: Chamfered
- Overall Length: 3.531 inches
- Material: Seamless Electro-Tin Plated Copper
- Color Code: White
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-62
Cross-Reference
Equivalent to Burndy YAV-L, Panduit LCC250-X, and Ilsco CTL-250 two-hole compression lug configurations. Conversions Tech lugs are engineered to US specifications and manufactured by certified partner facilities to deliver equivalent electrical and mechanical performance at reduced procurement cost.
FAQ
What crimping tool and die should I use with this lug?
Use a compression tool compatible with I-62 die index. Verify the die index marking on your crimping tool head or consult the manufacturer's die chart for 250 MCM copper compression lugs. Proper die selection ensures UL-compliant crimp geometry and pull-out strength.
Is this lug rated for 35kV applications?
Yes, the 35 kV voltage rating applies to the lug's insulation properties when properly installed with appropriate stress relief and insulation systems per NEC and NEMA standards. The lug itself is suitable for medium-voltage terminations; always follow applicable installation codes for the complete cable assembly.
Can I use this lug with aluminum conductors?
No. The conductor material specification is copper only. For aluminum conductors, specify a lug rated for aluminum or copper/aluminum dual-rated construction. Mixing conductor and lug materials without proper transition compounds or bimetallic designs risks galvanic corrosion and connection failure.
