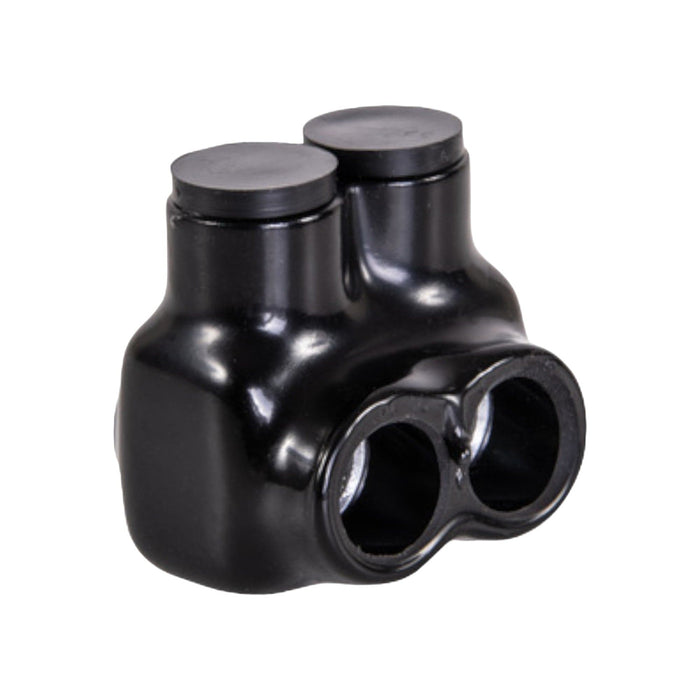

Insulated Tap Connectors 2 port single-side Entry 14 AWG - 1/0 AWG
Shipping calculated at checkout
SKU: 610-30020114
37 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connectors — UV-Resistant, NEC 230.46 Compliant
Engineered for secure, low-resistance connections in residential, commercial, and industrial systems, Conversions Technology Insulated Tap Connectors feature a rounded, installer-friendly body and UV-resistant plastisol insulation. The single-side wire entry streamlines terminations for two conductors (1/0–14 AWG), while adjustable set screws maintain a high-pressure mechanical bond. Each port is pre-filled with oxide inhibitor and protected by removable plugs to block debris and moisture. Fully compliant with NEC Article 230.46 for line-side connections on service equipment.
Key Features
- Secure connections: Adjustable set screws + rounded aluminum body yield high contact pressure and low resistance.
- Single-side wire entry (1/0–14 AWG): Fast, repeatable terminations for two conductors.
- Code compliant: Meets NEC 230.46 for service equipment line-side connections.
- Ergonomic handling: Smooth, rounded profile with plastisol insulation for confident grip.
- Ingress protection: Removable plugs seal ports and set-screws against dust and moisture.
- Corrosion control: Pre-filled oxide inhibitor stabilizes contact resistance over life.
- Field durability: UV-resistant plastisol resists abrasion and chemicals for outdoor/harsh installs.
Technical Specifications
| Wire Gauge Range | 1/0 AWG – 14 AWG |
|---|---|
| Conductor Count | 2 |
| Connection Type | Set Screw |
| Voltage Rating | 600 V |
| Material | Aluminum |
| Insulation | Plastisol, UV-resistant |
| Finish | Plastisol Insulated (UV resistant) |
| Certifications | cULus; Meets NEC 230.46 (Suitable for Line Side of Service) |
| UL Standard | UL 486A/B |
| Ampacity (Max) | Aluminum: 100 A; Copper: 130 A |
| Temperature Rating | 90°C, AL9CU |
| Design Features | Single-Sided Entry; Removable Plugs; Pre-Filled Oxide Inhibitor |
Applications
- Residential service entrance and panel wiring
- Commercial building distribution systems
- Industrial machinery and control panels
- Power distribution networks & infrastructure
- HVAC equipment connections
- Automotive and marine electrical systems
- Utility, renewable, and general equipment wiring
Explore our insulated tap connectors designed for reliable, code-compliant terminations across industries.
FAQs
Are these connectors compliant with NEC 230.46?
Yes. They meet NEC Article 230.46 for line-side connections on service equipment when installed per local code and manufacturer instructions.
What conductor sizes are supported?
Each unit accepts two conductors within a 1/0 AWG to 14 AWG range via single-side entry.
Do they include oxide inhibitor?
Yes. Ports are factory pre-filled with oxide inhibitor to reduce oxidation and maintain stable contact resistance over time.
Are the plugs removable?
Yes. Each port and set-screw cavity includes a removable plug to help block dust and moisture during handling and installation.
What is the voltage and temperature rating?
Rated 600 V and 90 °C, AL9CU, per UL 486A/B and cULus listing.
