Panelboard Connector, 1-Barrel, 1-Hole | 14 AWG to 2 AWG, 1/4 in Stud, Dual-Rated AL9CU, UL 486B | 210-99002
Shipping calculated at checkout
SKU: 210-99002
500 in stock
Open here

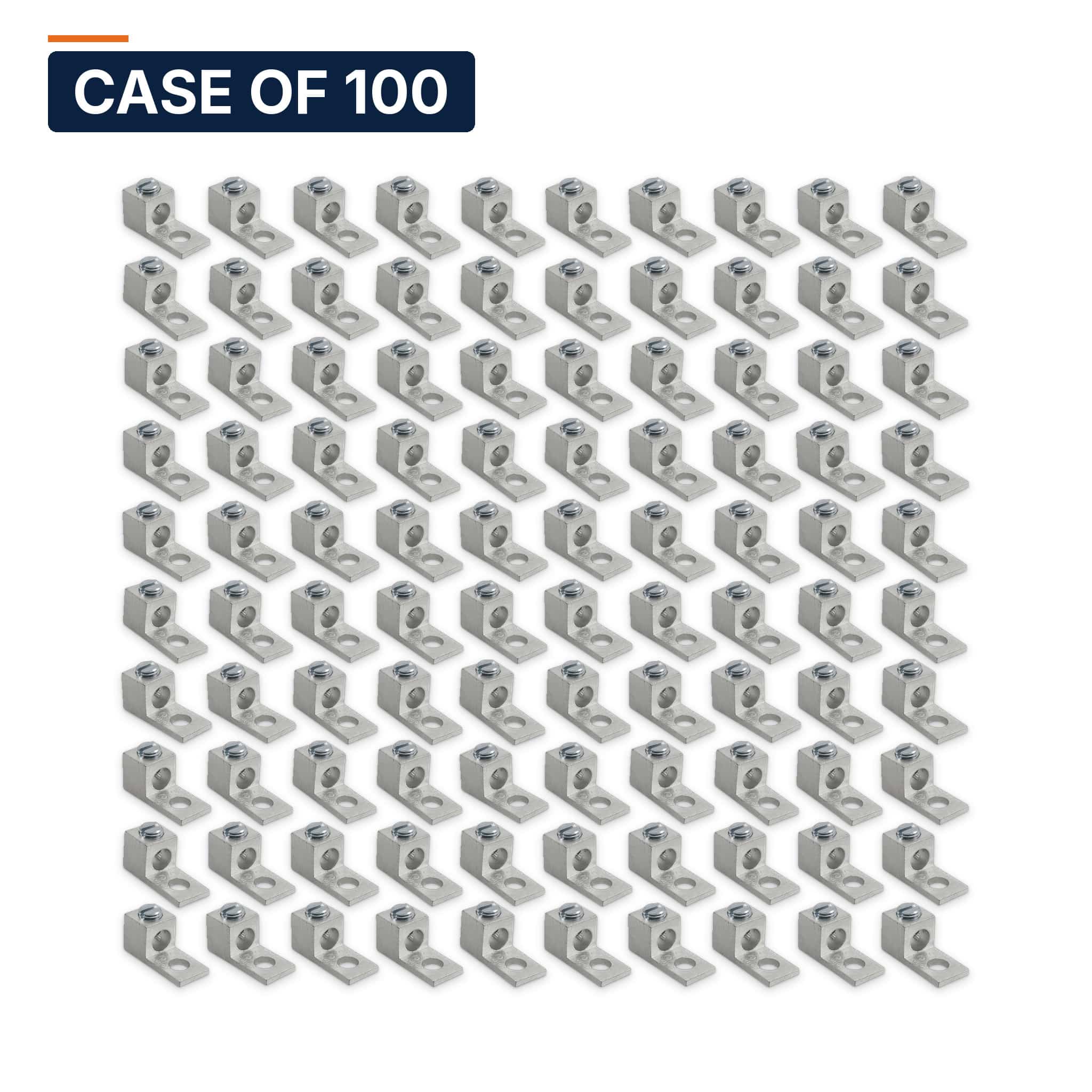

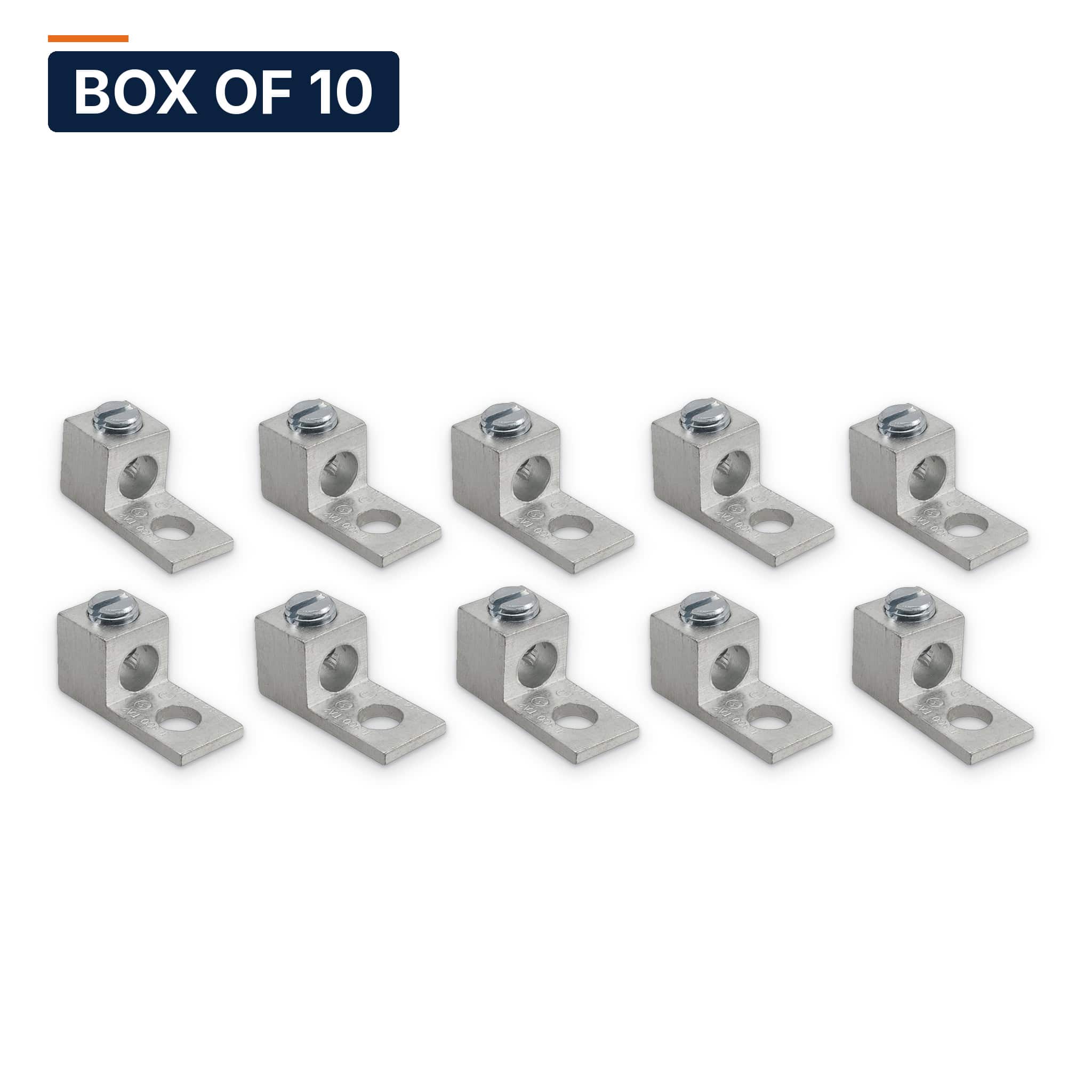

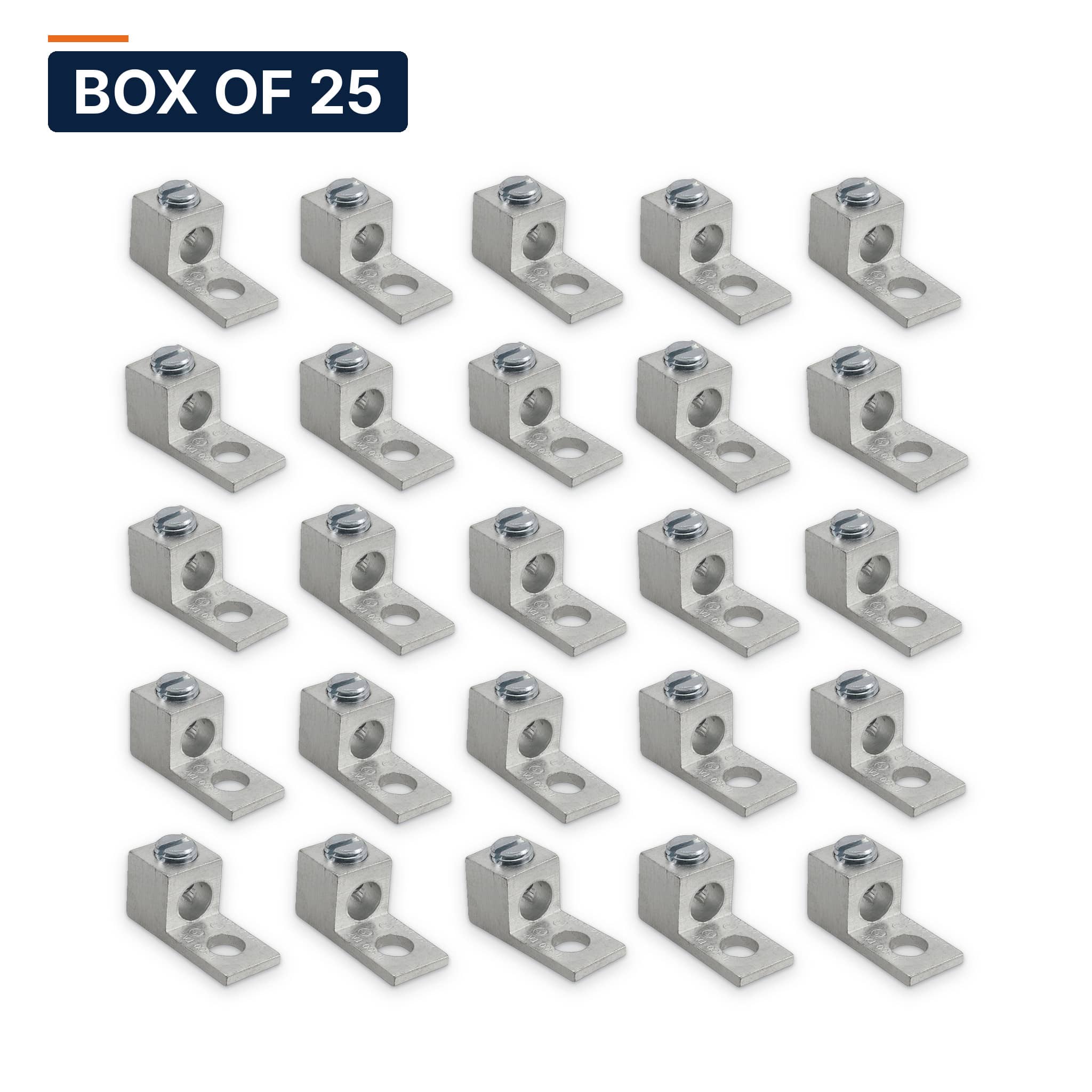

The 210-99002 aluminum 1-barrel panelboard connector provides set-screw termination for 14 AWG - 2 AWG conductors, 1/4 in stud mounting. Electro-tin plated aluminum body, dual-rated for copper and aluminum conductors, UL 486B listed class - the field-standard connector for panelboard taps, gutter splices, and service equipment terminations.
Applications
- Panelboard and switchboard conductor terminations
- Gutter taps and multi-conductor distribution points
- Service entrance and meter-base connections (14 AWG - 2 AWG)
- Set-screw install - no crimping tool required, re-enterable
Specifications
| Part Number | 210-99002 |
| Category | Electrical connector |
| Weight | 0.03 lb |
| HS Code | 8536.90.4000 |
Cross-Reference: 210-99002
| Brand | Part Number | Notes |
|---|---|---|
| ILSCO | TA-2 | ClearChoice, 14-2 AWG, 1/4" stud, dual-rated* |
| Burndy | KA2U | KA-U series, 14-2 AWG, 1/4" stud, dual-rated* |
| NSI | 2T | T series, 14-2 AWG, 1/4" stud* |
| Conversions Tech | 210-99002 | stocked, ships same day |
*Cross by conductor range, barrel count, and stud size - verify for your application. Trademarks belong to their owners.
See also splicer/reducers and neutral bars. Contractor & distributor pricing →
