Category 7 Cat7 Cable LSZH Jacket Blue
Shipping calculated at checkout
SKU: 9700-5250
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Cat7 S/FTP Ethernet Cable – 250 ft Bulk Roll
Key Performance Advantages
- True 1000 MHz Bandwidth: 4× Cat6, engineered for 10 GbE, 25 Gb back-bone links, UHD video & PoE++.
- S/FTP Quad Shield: Individual foil + overall braid eliminates EMI/RFI—perfect for data centers and broadcast suites.
- 23 AWG Solid Bare Copper: 99.99 % oxygen-free conductors deliver low-latency, error-free transmission.
- Universal Termination: Works with GG-45®, TERA®, and legacy RJ-45 hardware—no rip-and-replace required.
- Low-Smoke Zero-Halogen (LSZH): Halogen-free jacket reduces toxic fumes, meets global fire-safety codes.

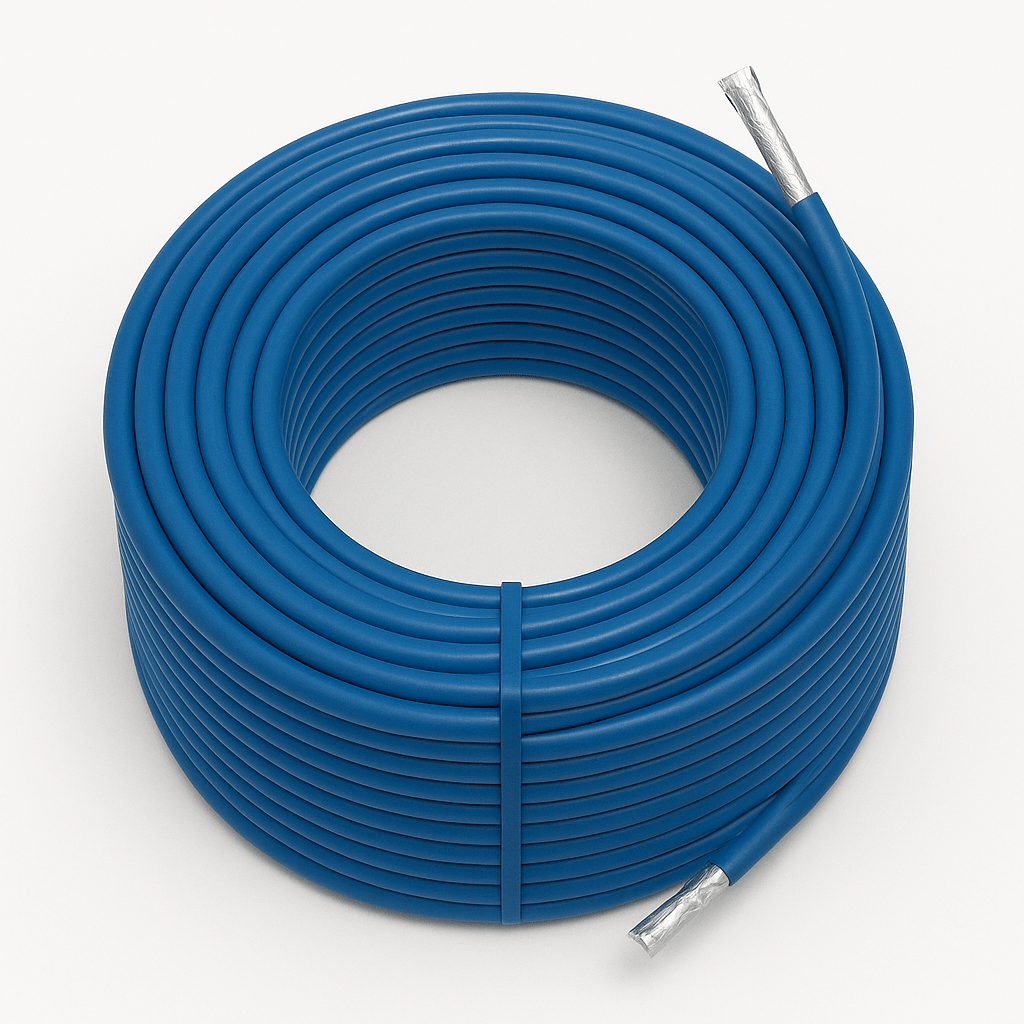

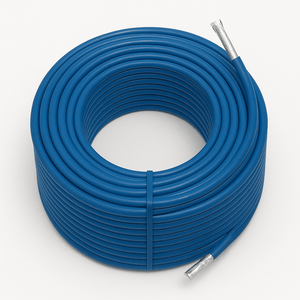

- Installer-Ready 250 ft Pull Roll: Tangle-free payoff for horizontal runs, patch panels, or consolidation points.
Technical Specifications
| Parameter | Value |
|---|---|
| Category / Type | Cat7 S/FTP (Shielded Foiled Twisted Pair) |
| Bandwidth | 1 GHz (1000 MHz) certified |
| Data Rate Support | 10GBASE-T to 100 m; backward-compatible with 5G/2.5G/1G |
| Conductors | 23 AWG solid bare copper (4 pairs) |

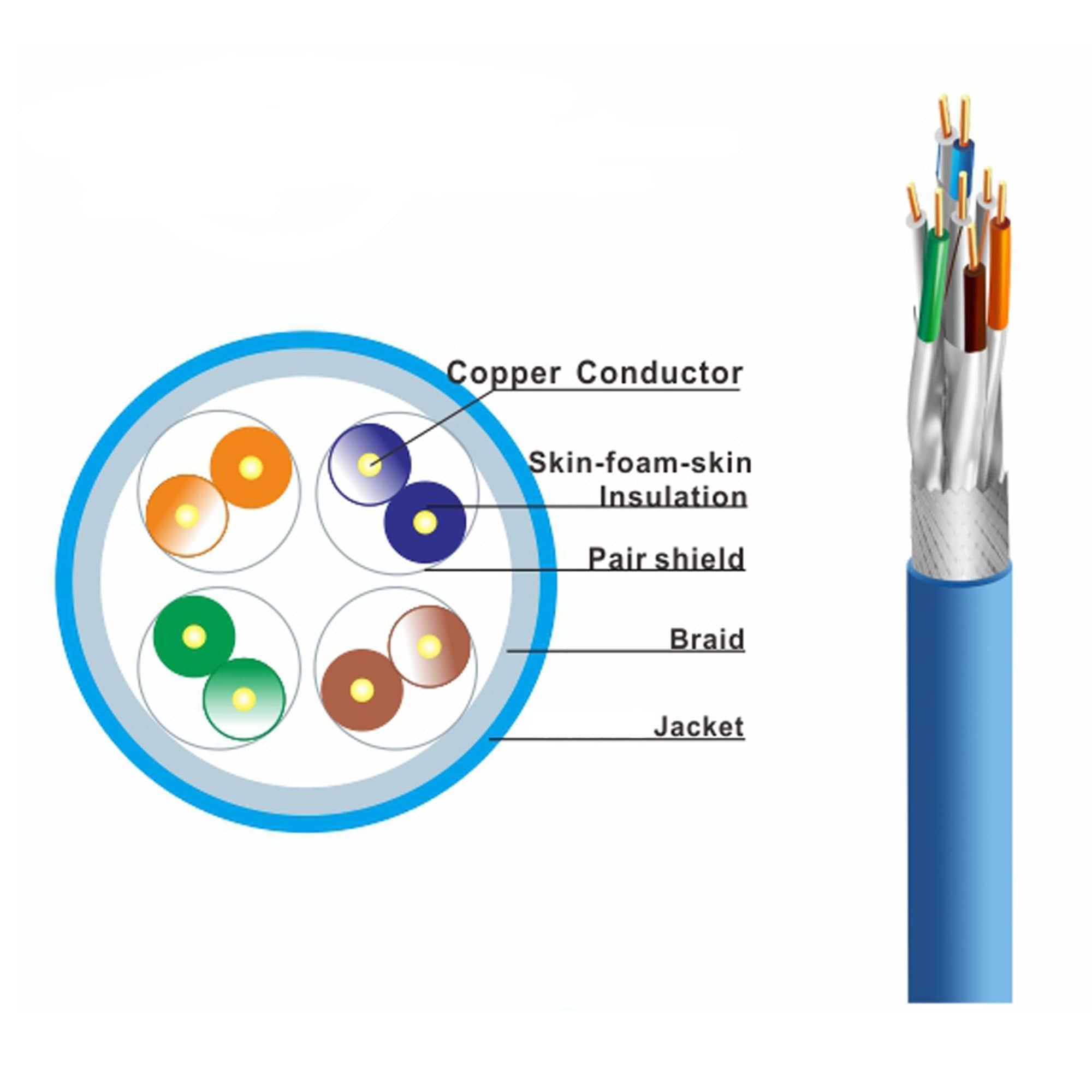

| Shielding | Al-Mylar foil per pair + 85 % tinned-copper braid |
| Impedance | 100 Ω ± 10 Ω |
| Outer Jacket | LSZH (Blue), RoHS & REACH compliant |
| Outer Diameter | 7.9 mm ± 0.2 mm |
| Operating Temp. | -20 °C ~ +60 °C |
| Length | 250 ft / 76.2 m |
Ready to Upgrade?
Boost network throughput and suppress interference with Conversions Technology Cat7 today.
