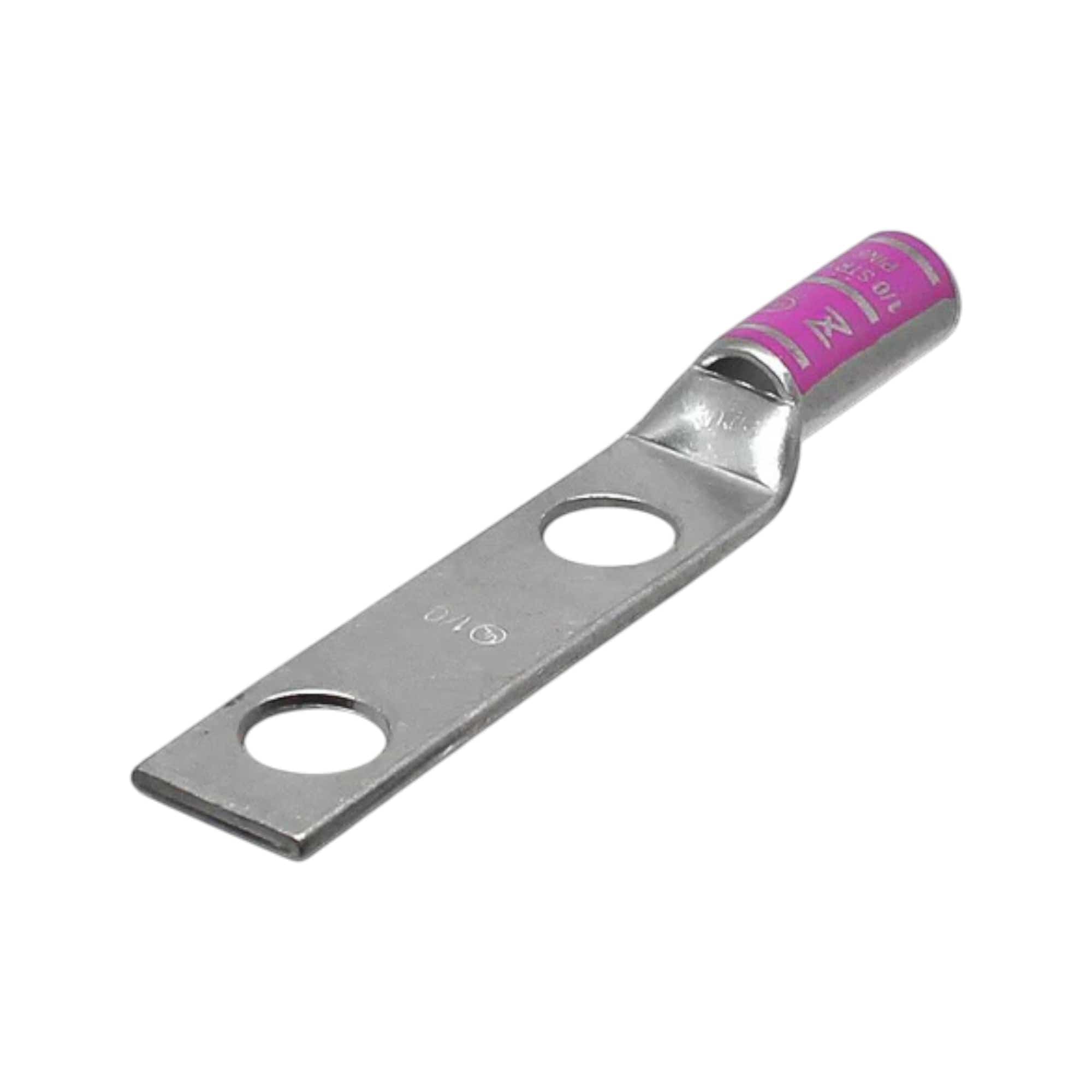

Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98097A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is expertly designed for 1/0 conductor size, offering exceptional performance in demanding electrical applications. Featuring a long barrel for enhanced stability and two holes with 1-3/4 inch spacing, it provides versatile installation options for a wide range of setups. Its tin-plated finish not only ensures superior durability but also optimizes conductivity, making this lug a reliable choice for environments that require both strength and efficiency. Whether for high-performance or heavy-duty applications, this lug guarantees long-lasting, dependable connections.
Key Features
-
Optimized for 1/0 AWG Conductors: Ensures precise and secure connections.
-
1/2 Inch Bolt Size & 1-3/4 Inch Hole Spacing: Facilitates easy installation and broad compatibility.
-
Long Barrel Design: Enhances stability and electrical conductivity.
-
Durable Tin-Plated Copper Construction: Combats corrosion and boosts conductivity.
-
High-Temperature Tolerance: Designed to withstand temperatures up to 90°C, suitable for various environments.
-
Compact and Lightweight Design: Ideal for applications where space and weight are critical considerations.
- Resistance to Mechanical Wear: Offers long-lasting performance in environments subject to frequent use or harsh conditions.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Stud Size | 1/2" |
| Color | Pink |
| Overall Length (L) | 109.3mm (4.31") |
| Neck Length (L1) | 73.2mm (2.88") |
| Neck Length (L2) | 44.5mm (1.75") |
| Outer Diameter (D) | 18.4mm (0.73") |
| Inner Diameter (D1) | 13.0mm (0.51") |
| Hole Diameter (D2) | 10.2mm (0.40") |
| Width (B) | 29.8mm (1.18") |
| Hole Spacing (E) | 13.0mm (0.51") |
| Thickness (F) | 2.7mm (0.11") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
