Copper Long Barrel Two Hole Compression Lugs 4 AWG 1/2 -inch Bolt Size
Shipping calculated at checkout
SKU: 210-09958
193 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

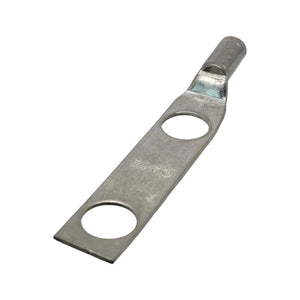

The Conversions Tech high-quality 2-hole copper compression lug is designed for secure and efficient electrical connections. Built for 4 AWG conductors, it features a long barrel and accommodates 1/2-inch bolts for a stable, reliable fit. The seamless electro-tin plated finish provides enhanced durability and corrosion resistance, ensuring long-lasting performance. The gray color code allows for easy identification of its specific use, while the sleek, functional design is complemented by the absence of a sight window, keeping it streamlined yet effective. This lug is ideal for demanding electrical applications requiring strength and reliability.
Key Features
-
Seamless Electro-Tin Plated Copper: Ensures high conductivity and corrosion resistance for a reliable electrical connection.
-
Gray Color: Easily identifiable color code for quick and accurate installation.
- 4 AWG Conductor Size: Designed to handle conductors of up to 4 AWG for versatility.
-
1/2 Inch Stud Size: Compatible with common stud sizes for easy installation.
-
I-29 Die Index: Provides compatibility information for proper crimping tools.
-
2 Pad Hole(s): Allows flexibility in conductor termination and installation.
-
1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.
-
Long Barrel Type: Enhances flexibility and ease of installation in various setups.
-
Size 0.25 Inch ID x 0.343 Inch OD: Accommodates specific wire dimensions for secure connections.
-
Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.
- Temperature Rating 90°C: Suitable for applications with elevated temperature requirements.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Gray |
| Overall Length | 2.796 Inches |
| Barrel Length | 1.125 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-29 |
| Pad Size | 1.437 Inch L x 0.486 Inch W x 0.093 Thk |
| Pad Hole(s) | 2 |
| Pad Hole Spacing | 1 Inches |
| Barrel Type | Long with Chamfered Entry |
| ID x OD | 0.25 Inch x 0.343 Inch |
| Temperature Rating | 90°C |
