Copper Long Barrel Two Hole Compression Lugs 3/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98099A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

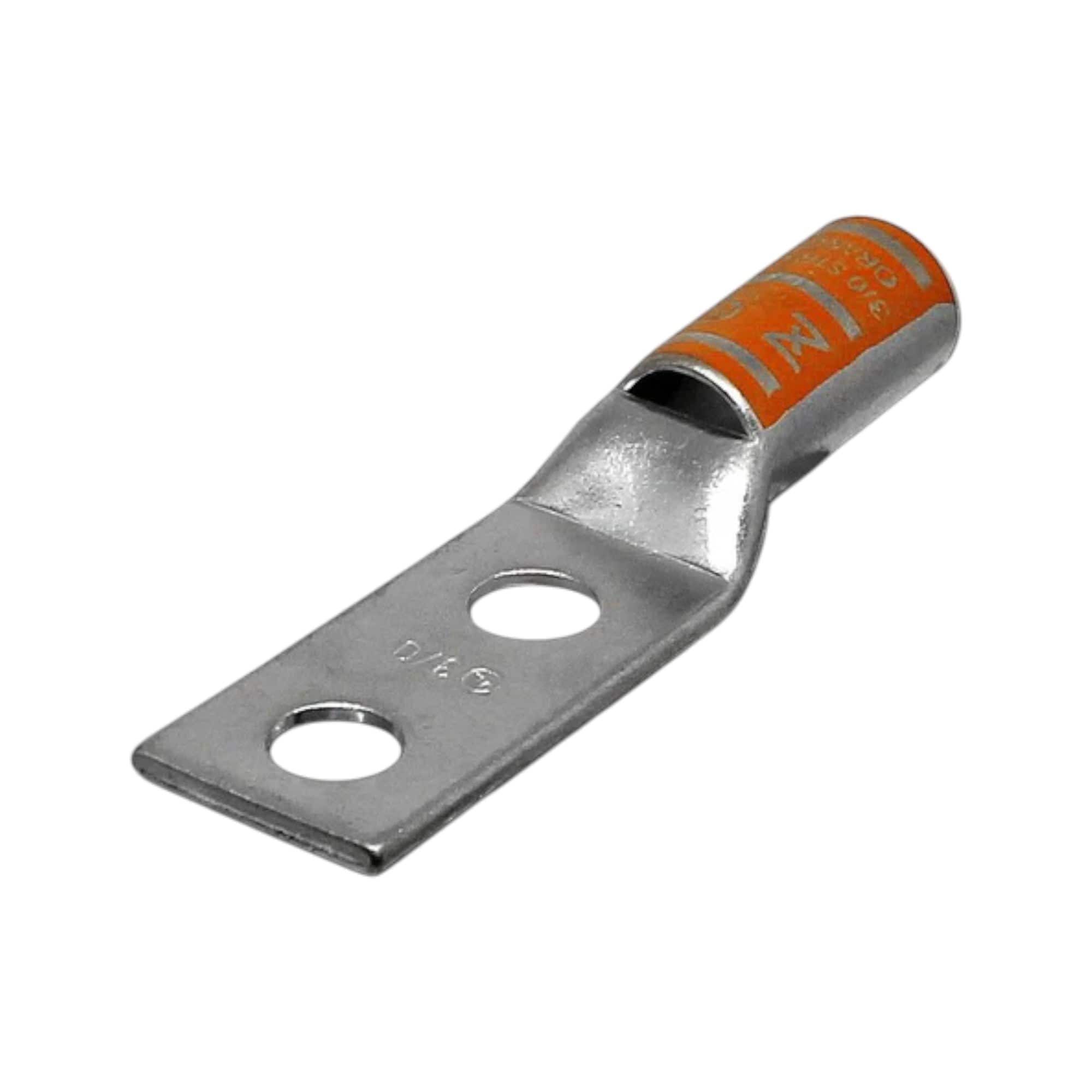

The Conversions Tech sturdy copper compression lug is designed for secure and efficient electrical connections with 3/0 AWG conductors. Featuring a long barrel, dual holes, and a 1/4-inch bolt size, this tin-plated lug ensures reliable performance. The vibrant orange color code aids in easy identification, making it ideal for various high-performance electrical applications.
Key Features
- Designed for 3/0 AWG conductors - Specifically made for 3/0 gauge cables, ensuring a proper fit.
- Long barrel construction - Provides a secure and efficient connection for long-term reliability.
- Dual holes for connection - Offers versatility for multiple attachment points.
- 1/4-inch bolt size - Standard bolt size for a secure, stable connection.
- Tin-plated finish - Ensures corrosion resistance and enhances durability for lasting performance.
- Vibrant orange color code - Easily identifiable for the appropriate conductor size, promoting quick and accurate identification during installation.
-
Ideal for high-performance electrical applications - Built to meet the demands of demanding electrical setups, ensuring secure and reliable connections.
Technical Specifications
| Material | Seamless Electro Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 3.376 Inches |
| Barrel Length | 1.5 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-50 |
| Pad Size | 1.437 Inches L X 0.885 Inch W X 0.125 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 5/8 Inch |
| Barrel Type | Long Barrel, Chamfered Entry |
| Inner Diameter | 0.484 Inch |
| Outer Diameter | 0.609 Inch |
| Cable Entry | Chamfered Type |
