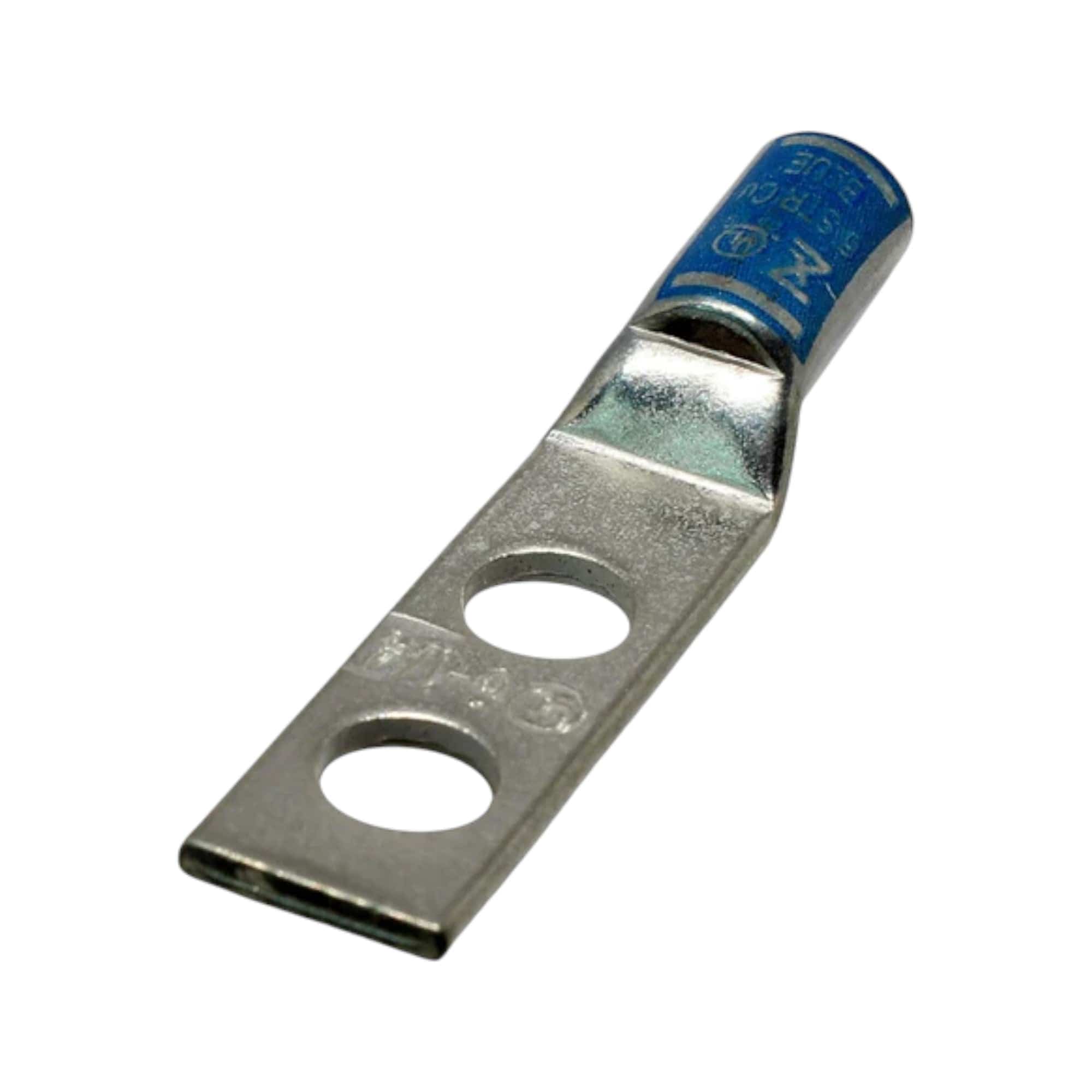

Copper Short Barrel Two Hole Compression Lugs 6 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09914
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech high-quality copper compression lug designed for a variety of electrical applications. It accommodates a 6 AWG conductor size and features two holes with a 1/4-inch bolt size, ensuring secure and efficient electrical connections. The lug includes a standard barrel, a built-in sight window for easy visual inspection, and a tin-plated finish for enhanced corrosion resistance. Its distinctive blue color code ensures quick identification and compatibility with standard color-coding systems, making it an ideal choice for reliable and long-lasting performance in various electrical environments.
Key Features
- Copper Construction – Provides excellent electrical conductivity, ensuring efficient and reliable connections.
- 6 AWG Conductor Size – Designed to accommodate 6 AWG wire, ideal for medium-sized electrical conductors.
- 1/4-inch Bolt Size – Standard bolt size for secure and stable attachment to the system.
- Two-Hole Design – Features two holes for a more secure and reliable electrical connection.
- Standard Barrel – Offers a standard barrel for easy wire insertion and consistent compression.
- Sight Window – Built-in sight window allows for easy visual inspection of the crimped connection to ensure proper installation.
-
Tin Plating & Blue Color Code – Tin-plated finish enhances corrosion resistance, while the blue color code ensures quick identification and compatibility with standard color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Blue |
| Overall Length | 2.382 Inches |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 6 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-24 |
| Pad Size | 1.687 Inches Length x 0.44 Inches Width x 0.087 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.203 Inch |
| Outer Diameter | 0.295 Inch |
| Cable Entry | Chamfered Type |
| Temperature Rating | 90°C |
