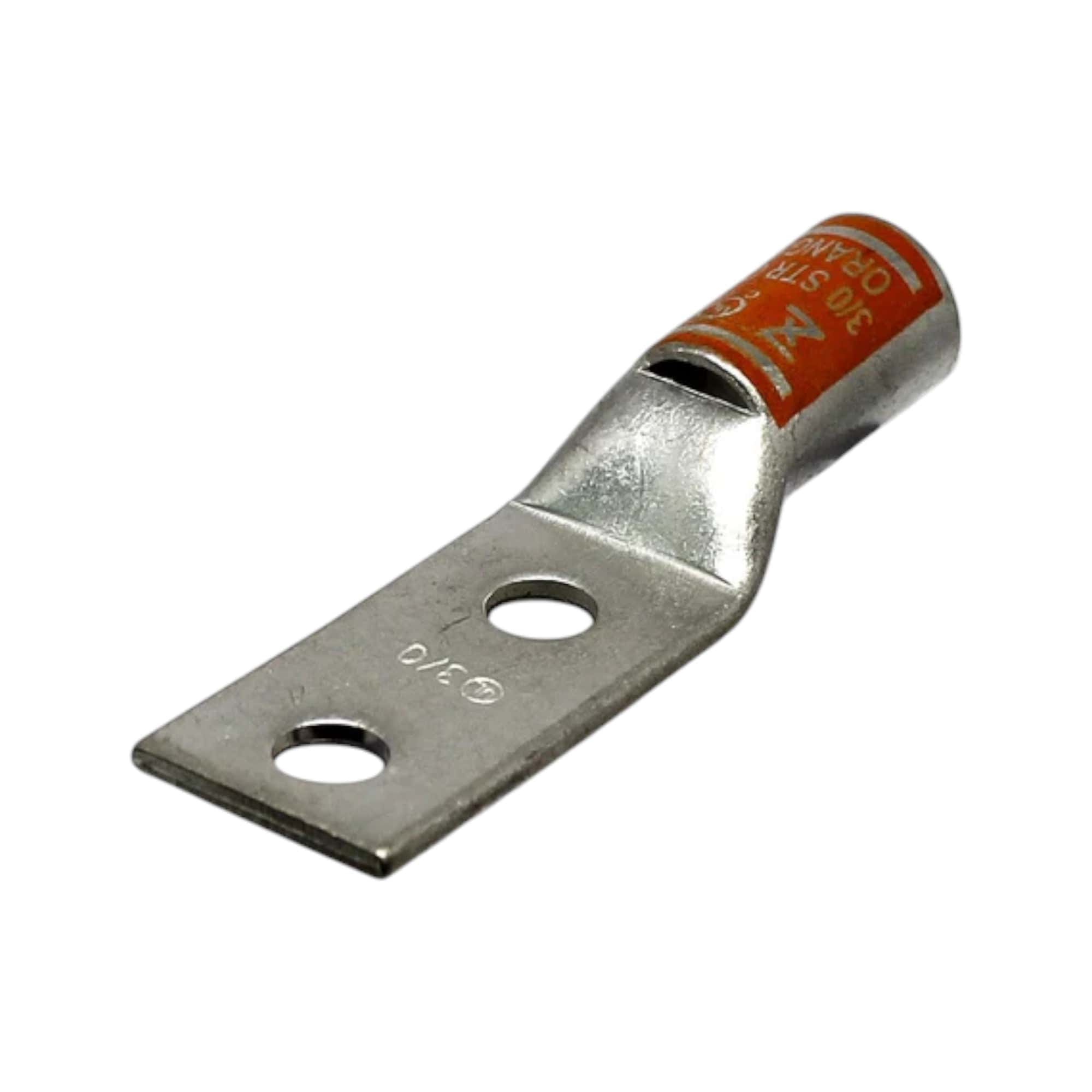

Copper Short Barrel Two Hole Compression Lugs 3/0 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98053A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 2-hole lug is a robust copper compression lug designed for secure electrical connections. It is engineered for a 3/0 conductor size and features a 5/16-inch bolt size, standard barrel, and an integrated sight window that allows for easy inspection of the connection. The orange color code enables quick identification, ensuring compatibility with standardized color-coding systems. Built for reliable performance, this lug offers durability and convenience in a wide range of electrical applications.
Key Features
- Copper Construction – Delivers excellent electrical conductivity and long-term reliability.
- 3/0 Conductor Size – Specifically designed for 3/0 wire, ensuring a secure fit for medium-sized conductors.
- 5/16-inch Bolt Size – Provides a standard bolt size for secure and efficient attachment.
- Standard Barrel – Features a standard barrel for easy wire insertion and compression.
- Sight Window – Enables visual inspection of the crimped connection, ensuring proper installation.
- Orange Color Code – Makes the lug easy to identify and ensures compatibility with standard color-coding systems.
-
Durable Design – Engineered to provide reliable performance in a wide range of electrical applications.
Technical Specifications
| Material | Seamless Electro Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 3.126 Inches |
| Barrel Length | 0.75 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 5/16 Inch |
| Die Index | I-50 |
| Pad Size | 1.937 Inch Length x 0.885 Inch Width x 0.125 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.484 Inch |
| Outer Diameter | 0.609 Inch |
| Cable Entry | With Chamfered Type |
