Long Barrel Compression Lug 10 AWG #10 Bolt, 25-Pack | 50A 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-09851-25
40 in stock
Open here

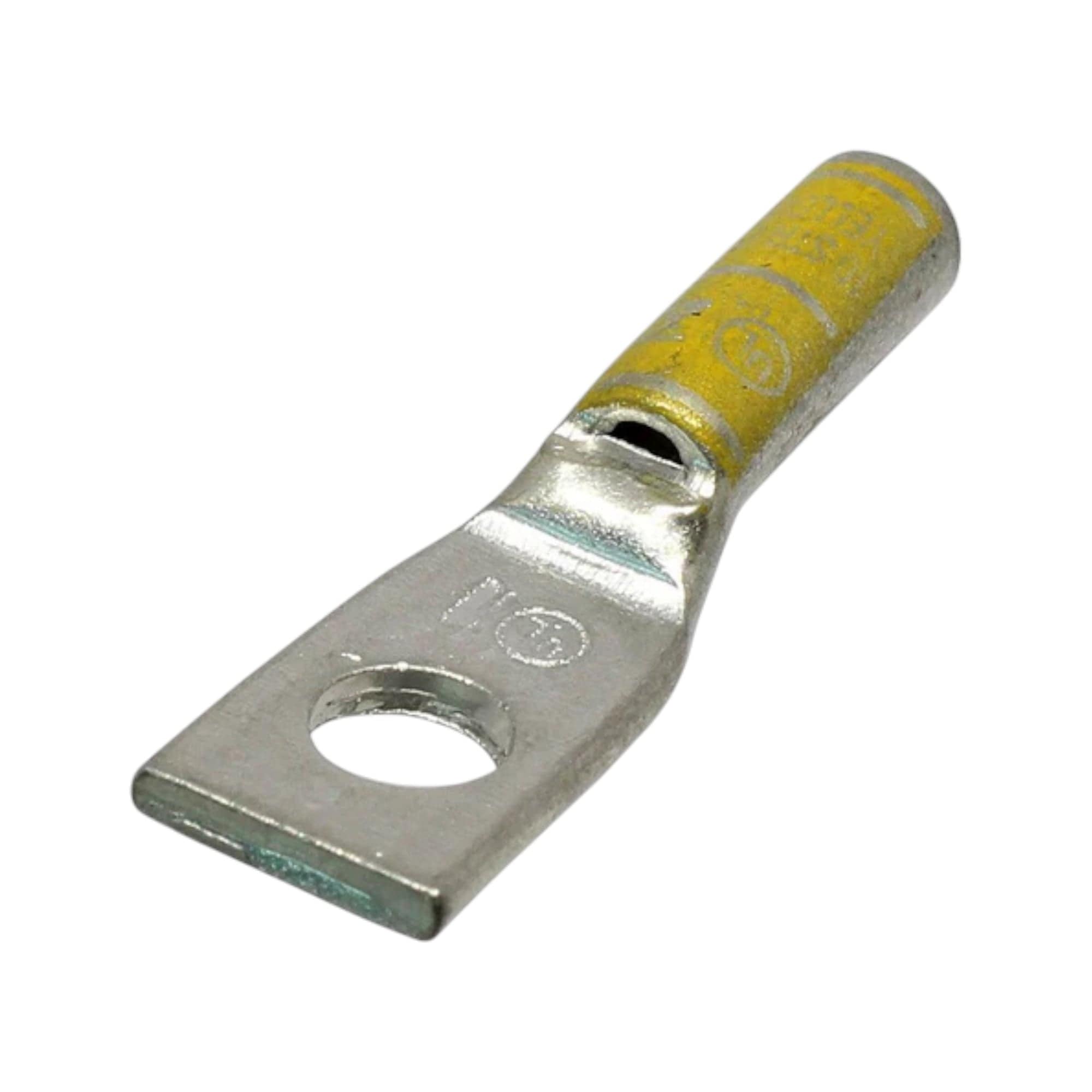

Long barrel one-hole compression lug for 10 AWG conductors. Tin-plated copper construction with extended barrel for increased contact surface and mechanical stability under crimp. Accepts #10 bolt size. Used in panelboards, switchgear, motor connections, and distribution blocks where secure terminations are required.
Specifications
- Wire Size: 10 AWG
- Stud Size: #10
- Color: Yellow

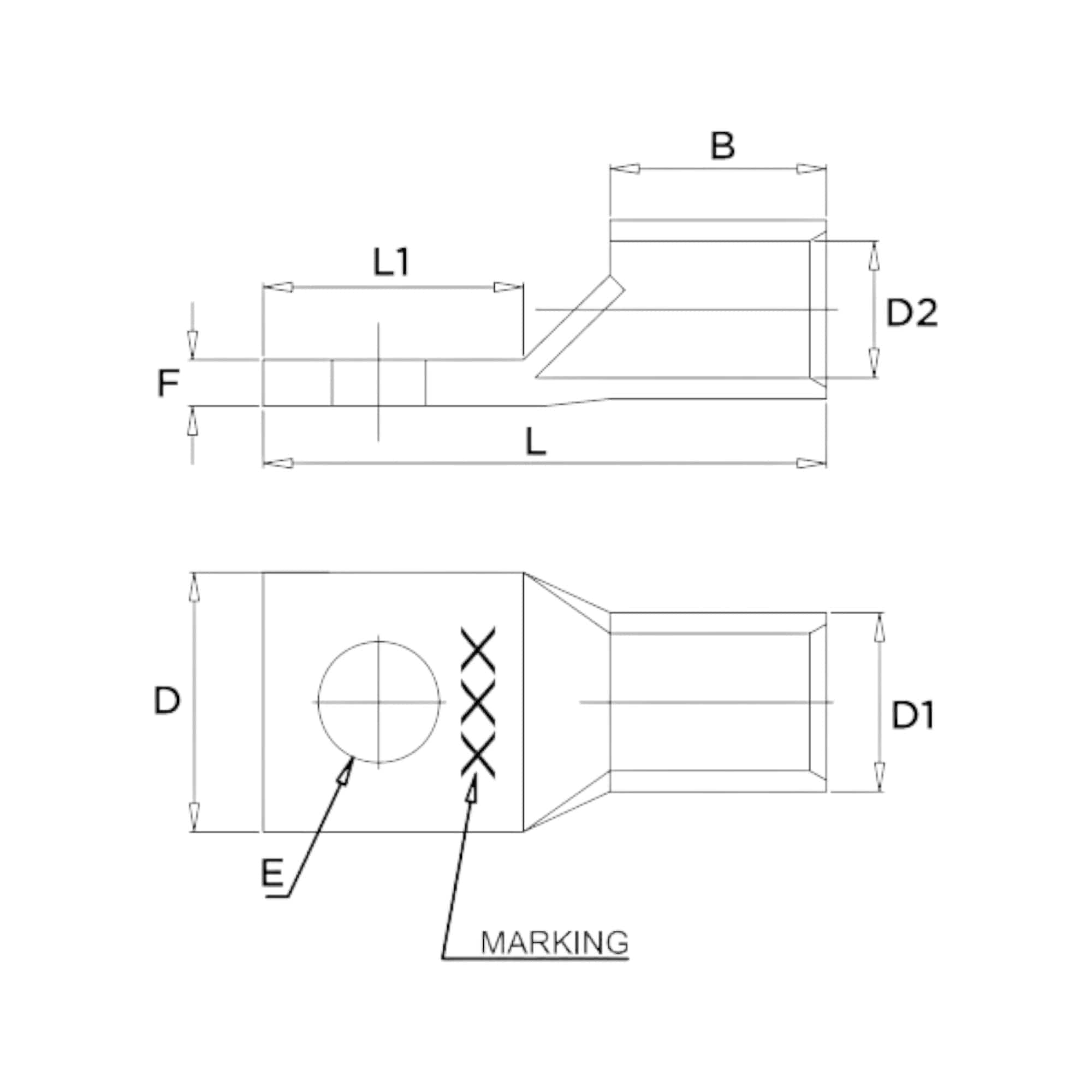

- Overall Length (L): 32.8mm (1.29")
- Length 1 (L1): 15.2mm (0.60")
- Diameter (D): 8.1mm (0.32")
- Diameter 1 (D1): 5.6mm (0.22")
- Diameter 2 (D2): 3.3mm (0.13")
- Width (B): 14.4mm (0.57")
- Width 1 (E): 5.6mm (0.22")
- Thickness (F): 1.96mm (0.08")
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 50A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to standard long-barrel compression lug form factors from major manufacturers. Yellow color code indicates 10 AWG compatibility per industry convention.
FAQ
What crimp tool is required for this lug?
Use a crimping tool rated for 10 AWG copper lugs with long barrel dies. The extended barrel requires proper die alignment to achieve full compression across the entire barrel length.
Is this lug suitable for outdoor use?
The tin-plated copper construction provides corrosion resistance. Verify enclosure ratings and local code requirements for specific environmental conditions.
Can this lug be used with stranded and solid 10 AWG?
Yes. The 10 AWG rating accommodates both stranded and solid copper conductors. Strip length should match L1 dimension (15.2mm) for proper insertion depth.
Specifications
| Part Number | 210-09851 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
