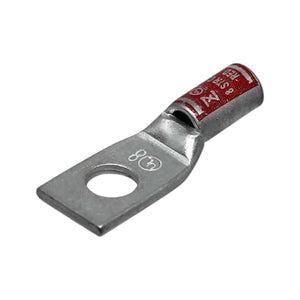

Copper Short Barrel One Hole Compression Lugs 8 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98002A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Key Features
- Designed for 8 AWG copper conductors to ensure a secure fit.
- 35 kV voltage rating for high-performance electrical applications.
- Standard barrel with chamfered entry for streamlined wire insertion.
- Seamless electro-tin-plated copper for superior conductivity and corrosion resistance.
- 5/16-inch bolt size for enhanced mechanical fastening.
- Red color coding for quick identification.
- Temperature-resistant up to 90°C for long-term durability.
Technical Specifications
| Wire Size | 8 AWG |
|---|---|
| Stud Size | 5/16" Stud |
| Color | Red |
| Overall Length (L) | 34.9mm (1.40") |
| Neck Length (L1) | 19.1mm (0.75") |
| Outer Diameter (D) | 13.7mm (0.54") |
| Inner Diameter (D1) | 7.1mm (0.28") |
| Hole Diameter (D2) | 4.8mm (0.19") |
| Width (B) | 12.7mm (0.50") |
| Hole Spacing (E) | 8.8mm (0.35") |
| Thickness (F) | 1.5mm (0.06") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 50A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
