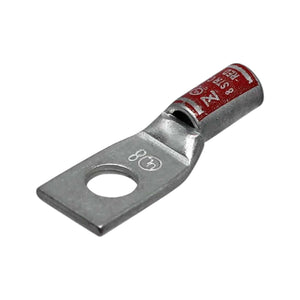

Copper Short Barrel One Hole Compression Lugs 8 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98002B
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech presents the Copper Compression Lug, expertly designed for 8 AWG conductors with a ⅜ inch bolt size, featuring a standard barrel with a chamfered entry, a sight window, and a tin-plated finish. This UL certified lug is essential for secure and efficient electrical connections across a variety of applications.
Key Features
- Conductor Size: Designed for 8 AWG conductors, providing secure and reliable electrical connections for this wire gauge.
- Bolt Size: Features a ⅜-inch bolt size, ensuring a stable and strong mechanical connection.
- Barrel Design: Equipped with a standard barrel featuring a chamfered entry, making it easier to insert the conductor and ensuring a smooth, secure connection.
- Sight Window: Includes a sight window for visual inspection, allowing for easy confirmation of proper conductor placement and compression during installation.
- Material: Tin-plated copper construction enhances conductivity and provides corrosion resistance, ensuring long-lasting performance in various environments.
- Certifications: UL certified, ensuring it meets industry safety and performance standards for reliable use in electrical systems.
- Applications: Suitable for a wide range of electrical applications, offering secure and efficient connections in industrial, commercial, and residential systems.
Technical Specifications
| Wire Size | 8 AWG |
|---|---|
| Stud Size | 3/8" Stud |
| Color | Red |
| Overall Length (L) | 36.9mm (1.50") |
| Neck Length (L1) | 21.1mm (0.80") |
| Outer Diameter (D) | 15.2mm (0.60") |
| Inner Diameter (D1) | 7.1mm (0.28") |
| Hole Diameter (D2) | 4.8mm (0.19") |
| Width (B) | 12.7mm (0.50") |
| Hole Spacing (E) | 10.4mm (0.41") |
| Thickness (F) | 1.4mm (0.06") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 50A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
