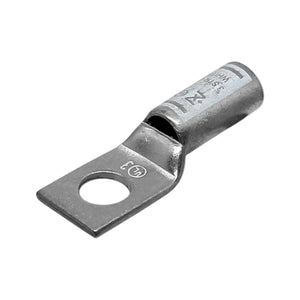

Compression Lug, 3 AWG, Copper, 3/8" Stud, 1-Hole, Standard Barrel, 25-Pack, 35 kV, UL Listed | 210-98010D
Shipping calculated at checkout
SKU: 210-98010D-25
Out of stock
Open here
Goes with
At a glance: Pack of 25 pieces.
Specifications
| Part number | 210-98010D |
|---|---|
| Conductor | 3 AWG copper, Class B stranded |
| Barrel | Standard |
| Voltage rating | 35 kV |
| Stud | 3/8 in, 1 hole |
| Overall length | 1.78 in (B) |
| Tongue width | 0.593 Inch |
| Tongue thickness | 0.1 Inch |
| Die | Index 33, Brown, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 35 kV, 100 A at 75 C |
| Color code | Brown |
| Wire Size | 3 AWG |
| Stud Size | 3/8" Stud |
| Color | White |
| Overall Length (L) | 45.2mm (1.80") |
| Barrel Length (L1) | 21.1mm (0.80") |
| Barrel Diameter (D) | 15.2mm (0.60") |
| Barrel Inner Diameter (D1) | 9.9mm (0.40") |
| Barrel Outer Diameter (D2) | 7.9mm (0.30") |
| Flange Length (B) | 20.3mm (0.33") |
| Flange Width (E) | 10.4mm (0.40") |
| Thickness (F) | 1.9mm (0.07") |
| Temperature Rating | 90°C |
| Maximum Amp Rating | 170A |
| UL Approved | Yes |
