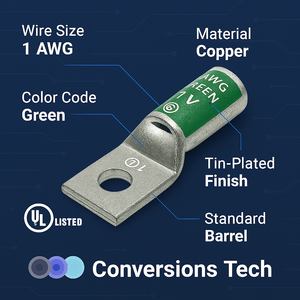

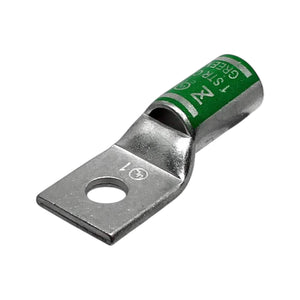

Compression Lug, 1 AWG, Copper, 1/2" Stud, 1-Hole, Standard Barrel, 35 kV, UL Listed | 210-98016A
Shipping calculated at checkout
SKU: 210-98016A
Out of stock
Open here
Goes with
At a glance: The 1-Hole Lug is expertly crafted to support 1/0 AWG conductors, combining a standard barrel design with a sight window for accurate wire placement.
Specifications
| Part number | 210-98016A |
|---|---|
| Conductor | 1 AWG copper, Class B stranded |
| Barrel | Standard |
| Voltage rating | 35 kV |
| Stud | 1/2 in, 1 hole |
| Overall length | 2.11 in (B) |
| Tongue width | 0.673 Inch |
| Tongue thickness | 0.109 Inch |
| Die | Index 37, Green, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 35 kV, 130 A at 75 C |
| Color code | Green |
| Wire Size | 1 AWG |
| Stud Size | 1/2" Stud |
| Color | Green |

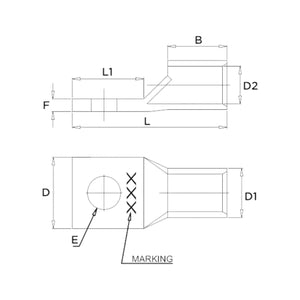

| Overall Length (L) | 53.6mm (2.1") |
| Length 1 (L1) | 28.7mm (1.10") |
| Diameter (D) | 17.8mm (0.70") |
| Diameter 1 (D1) | 11.7mm (0.46") |
| Diameter 2 (D2) | 9.1mm (0.35") |
| Width (B) | 20.3mm (0.80") |
| Width 1 (E) | 13.1mm (0.50") |
| Thickness (F) | 2.3mm (0.09") |
| Temperature Rating | 90°C |
| Maximum Amp Rating | 130A |
| UL Approved | Yes |
