1/0 AWG Copper Compression Lug, 1-Hole, Standard Barrel, 1/2 in Stud, Tin Plated, UL Listed | CT-SB1012
Shipping calculated at checkout
SKU: CT-SB1012
35 in stock
Open here
Goes with

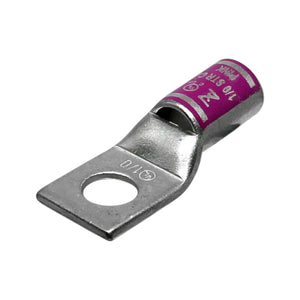

The Conversions Tech Copper Standard Barrel One-Hole Compression Lug is a crimp-type terminal connector engineered for 1/0 AWG conductors. Designed for power distribution, panel building, and industrial electrical installations, this lug provides a secure mechanical and electrical termination to busbars, switchgear, and equipment terminals. The standard barrel profile accommodates applications with space constraints while maintaining full current-carrying capacity.
| Specifications | |
| Part number | 210-98019A |
| Conductor | 1/0 AWG copper, Class B stranded |
| Stud | 1/2 in, 1 hole |
| Barrel | Standard, 0.80 in (E), chamfered entry, inspection window |
| Overall length | 2.18 in (B) |
| Tongue width | 0.738 Inch |
| Tongue thickness | 0.125 Inch |
| Die | Index 42, Pink, one crimp |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 35 kV, 150 A at 75 C |
| Color code | Pink |
Specifications
- Wire Size: 1/0 AWG
- Stud/Bolt Size: 1/2"
- Material: Tin Plated Copper
- Overall Length (L): 55.4mm (2.20")
- Barrel Length (L1): 28.7mm (1.10")
- Barrel Diameter (D): 18.4mm (0.70")
- Barrel Inner Diameter (D1): 13.0mm (0.50")
- Barrel Outer Diameter (D2): 10.2mm (0.40")
- Flange Length (B): 20.3mm (0.80")
- Flange Width (E): 13.1mm (0.51")
- Thickness (F): 2.7mm (0.10")
- Color Code: Pink
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 230A
- Certifications: UL Listed
Cross-Reference
Equivalent to standard one-hole standard barrel compression lug form factors from major manufacturers. Comparable to Panduit, Burndy, and Ilsco standard barrel copper lugs at reduced cost.
FAQ
What crimp die size is required for this lug?
Use a crimping tool and die set rated for 1/0 AWG copper compression terminals. The standard barrel requires proper die selection to achieve the specified compression force without over-crimping. Verify die index marks align with barrel length.
Is this lug suitable for 600V industrial applications?
Yes. The 35kV voltage rating exceeds standard 600V industrial requirements. The 90°C temperature rating and 230A ampacity support heavy-duty power distribution when properly installed per NEC guidelines.
Why is the lug pink colored?
The pink color code provides instant wire size identification per industry standard color-coding systems, reducing installation errors and simplifying inventory management in multi-conductor applications.
Specifications
| Part Number | 210-98019A |
| Category | Electrical connector |
| Weight | 0.25 lb |
