Copper Short Barrel One Hole Compression Lugs 600 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98042A
Only 12 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

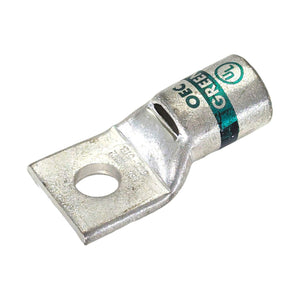

The Conversions Tech 1-Hole Lug is a robust copper compression lug designed for efficient electrical connections. Featuring a conductor size of 600 MCM, a single hole, a 1/2-inch bolt size, and a standard barrel, this lug ensures secure and reliable performance. Its tin-plated construction enhances durability and corrosion resistance, while the sight window allows for easy visual inspection during installation. The distinctive green color code simplifies identification, making this lug an excellent choice for professionals seeking a high-quality solution in electrical applications.
Key Features
- Robust Copper Construction: Made from high-quality copper to ensure excellent electrical conductivity and long-lasting reliability.
- 600 MCM Conductor Size: Designed for 600 MCM conductors, ideal for medium to heavy-duty electrical applications.
- 1/2-Inch Bolt Size: Features a 1/2-inch bolt hole, providing a stable and secure connection to terminals.
- Standard Barrel Design: The standard barrel ensures a reliable and strong crimp connection for secure electrical terminations.
- Sight Window: Equipped with a sight window for visual inspection, ensuring proper wire insertion and crimping for a solid, dependable connection.
- Tin Plating: Coated with tin plating for enhanced corrosion resistance, ensuring durability and reliable performance over time.
-
Green Color Code: The distinctive green color code simplifies identification during installations, improving efficiency and reducing errors.

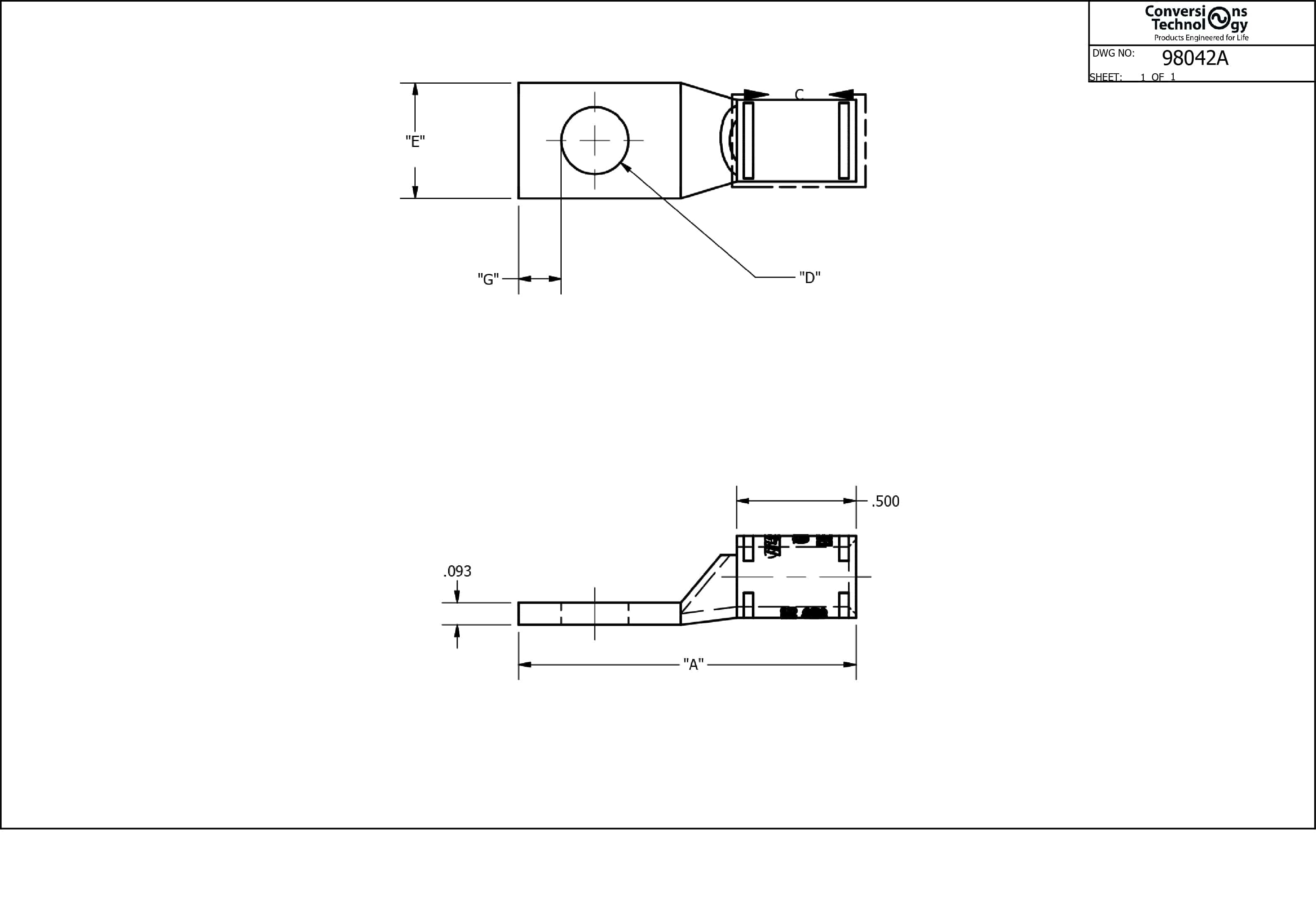

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Green |
| Overall Length | 3.621 inches |
| Barrel Length | 1.375 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 600 MCM |
| Stud Size | 1/2 inch |
| Die Index | I-94 |
| Pad Size | 1.437 inches L x 1.712 inches W x 0.267 inches Thk |
| Pad Holes | 1 Pad Hole |
| Barrel Type | Standard |
| Size | 0.92 inch ID x 1.187 inch OD |
| Barrel Entry | Chamfered Entry |
| Temperature Rating | 90°C |
