Copper Short Barrel One Hole Compression Lugs 700 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

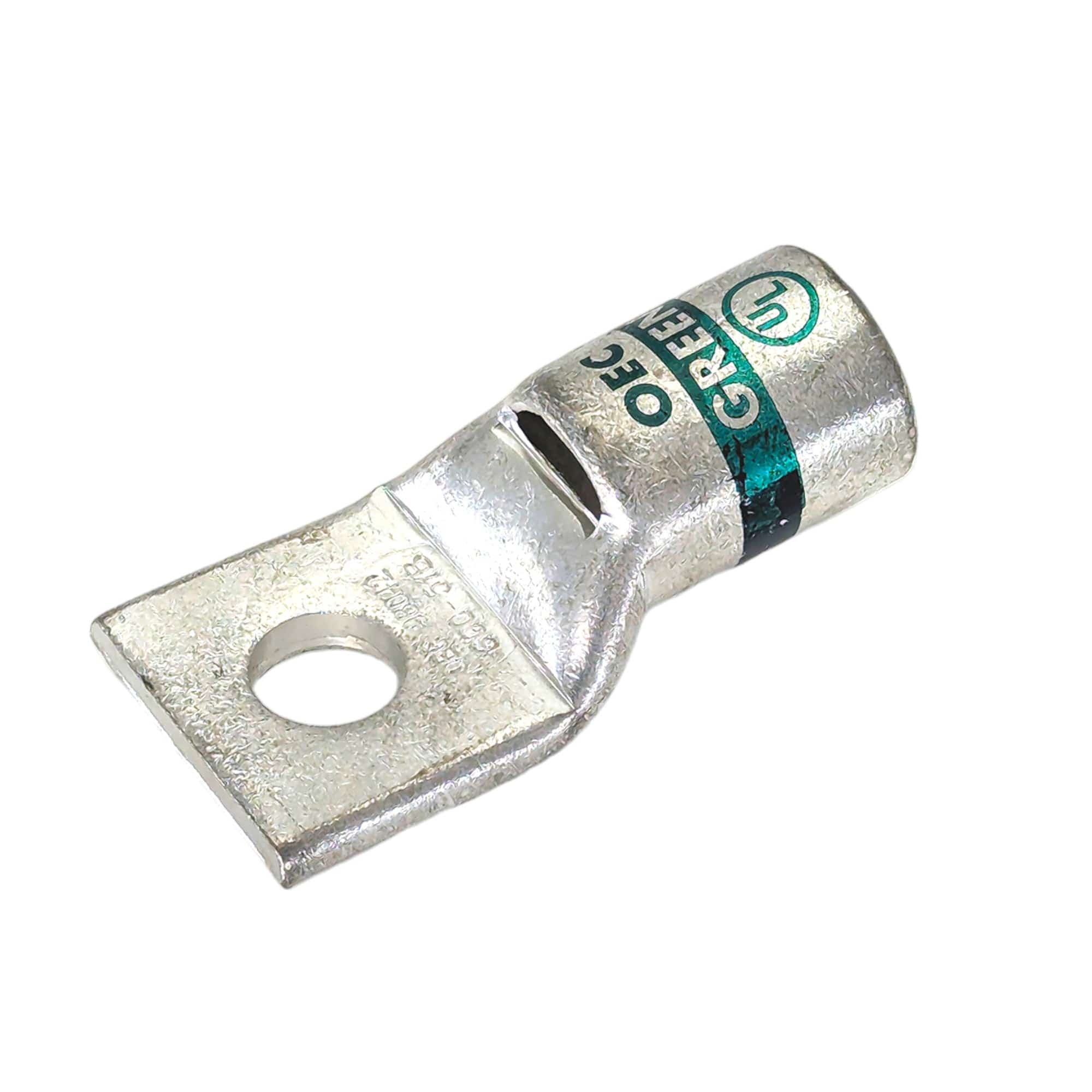

The Conversions Tech is a high-quality 1-hole copper compression lug designed for robust electrical connections. Featuring a conductor size of 700 MCM, a 1/2-inch bolt size, and a standard barrel, this lug ensures secure and efficient electrical terminations. Its tin-plated surface provides enhanced durability and corrosion resistance, while the sight window allows for easy visual inspection during installation. The distinctive pink color code facilitates easy identification, making this lug a reliable and efficient choice for a wide range of electrical applications.
Key Features
- High-Quality Copper Construction: Made from premium copper for superior electrical conductivity and long-lasting reliability.
- 700 MCM Conductor Size: Designed for 700 MCM conductors, ideal for heavy-duty electrical systems requiring high current capacity.
- 1/2-Inch Bolt Size: Features a 1/2-inch bolt hole, ensuring a secure and stable connection to terminals.
- Standard Barrel Design: The standard barrel provides a strong, reliable crimp connection, ensuring efficient and secure electrical terminations.
- Sight Window: Equipped with a sight window for visual inspection, making it easier to verify proper wire insertion and crimping.
- Tin Plating: Coated with tin plating for enhanced corrosion resistance, ensuring durability and reliability even in harsh environments.
-
Pink Color Code: The distinctive pink color code simplifies identification during installations, improving efficiency and reducing errors.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Green |
| Overall Length | 3.681 Inches |
| Barrel Length | 1.375 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 700 MCM |
| Stud Size | 1/2 Inch |
| Die Index | I-99 |
| Pad Size | 1.437 Inches L x 1.816 Inches W x 0.259 Inches Thk |
| Pad Holes | 1 |
| Barrel Type | Standard |
| ID x OD Size | 0.991 Inch ID x 1.25 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
