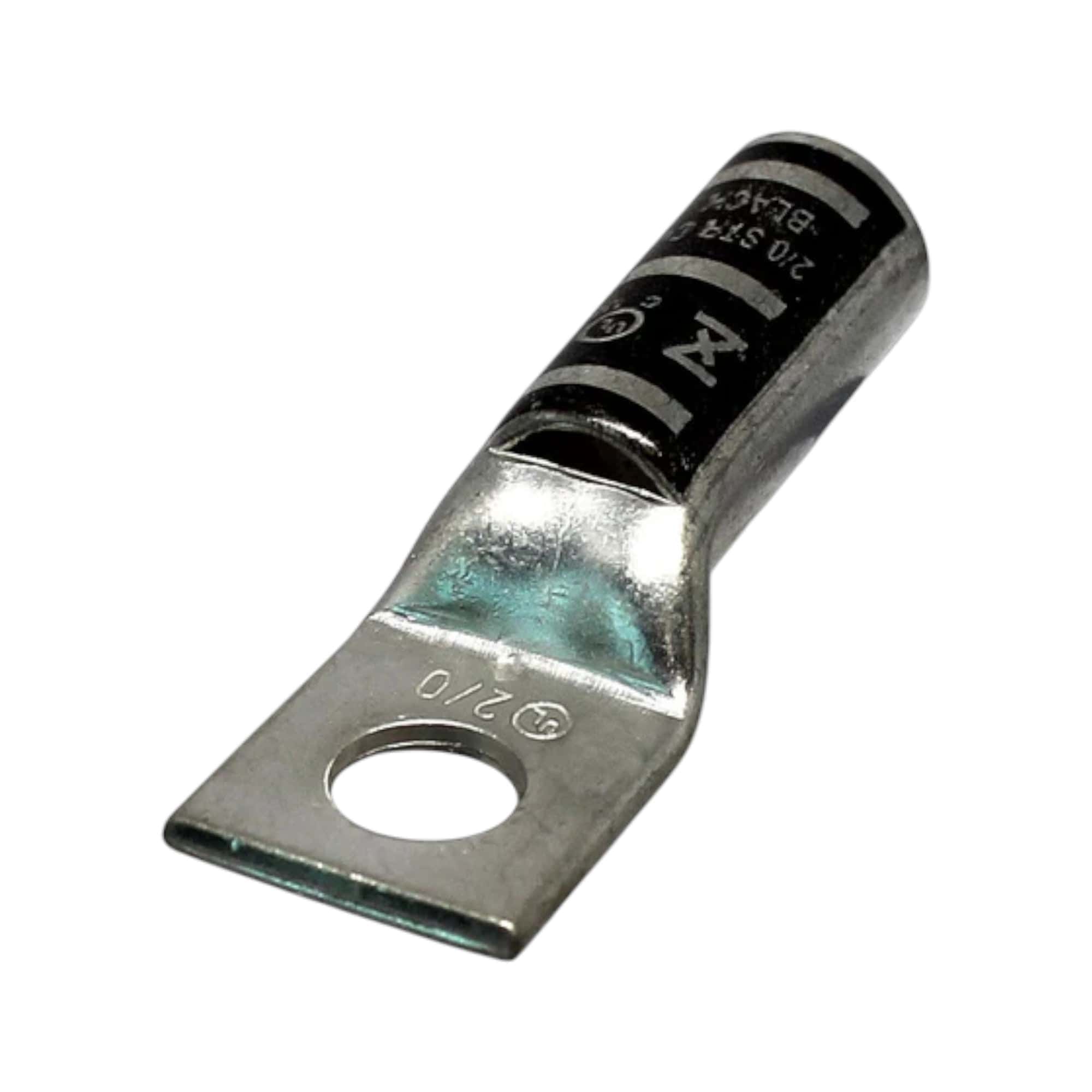

Long Barrel Compression Lug 2/0 AWG 5/16" Stud | 265A Tin-Plated
Shipping calculated at checkout
SKU: 210-98071A
801 in stock
Open here
Long barrel compression lug for 2/0 AWG copper conductor termination. One-hole design with 5/16-inch bolt size for power distribution panels, switchgear, industrial machinery, and renewable energy installations. Electro-tin-plated copper construction provides conductivity and corrosion resistance. Chamfered barrel entry facilitates wire insertion. Black color code for conductor size identification.
Specifications
- Wire Size: 2/0 AWG
- Stud/Bolt Size: 5/16"
- Barrel Length: 1.5 inches (long barrel)
- Overall Length (L): 55.9mm (2.2")
- Barrel Length (L1): 19.1mm (0.75")
- Overall Diameter (D): 20.8mm (0.82")
- Barrel Outer Diameter (D1): 14.2mm (0.56")
- Barrel Inner Diameter (D2): 11.6mm (0.46")
- Pad Width (B): 30.4mm (1.20")
- Pad Thickness (E): 8.7mm (0.34")
- Hole Diameter (F): 2.4mm (0.09")
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Ampacity: 265A
- Color Code: Black
- Die Index: I-45
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to long barrel one-hole compression lug form factors from major manufacturers. Compatible with standard industry tooling and installation practices for 2/0 AWG termination.
FAQ
What crimping die is required for this lug?
Use die index I-45 for proper compression. Verify tool compatibility with manufacturer specifications before installation.
Is this lug suitable for outdoor applications?
The electro-tin-plated copper construction provides corrosion resistance. Installation environment and applicable NEC requirements determine suitability for specific outdoor use.
Can this lug be used with fine-stranded cable?
This lug is specified for 2/0 AWG conductor. Verify compatibility with your specific cable stranding and consult applicable codes for fine-stranded conductor termination requirements.
Specifications
| Part Number | 210-98071A |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — One-Hole Long Barrel, 2/0 AWG, 5/16 Inch stud
CT P/N 210-98071A is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA26 |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
