Copper Long Barrel One Hole Compression Lug 3/0 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09860
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

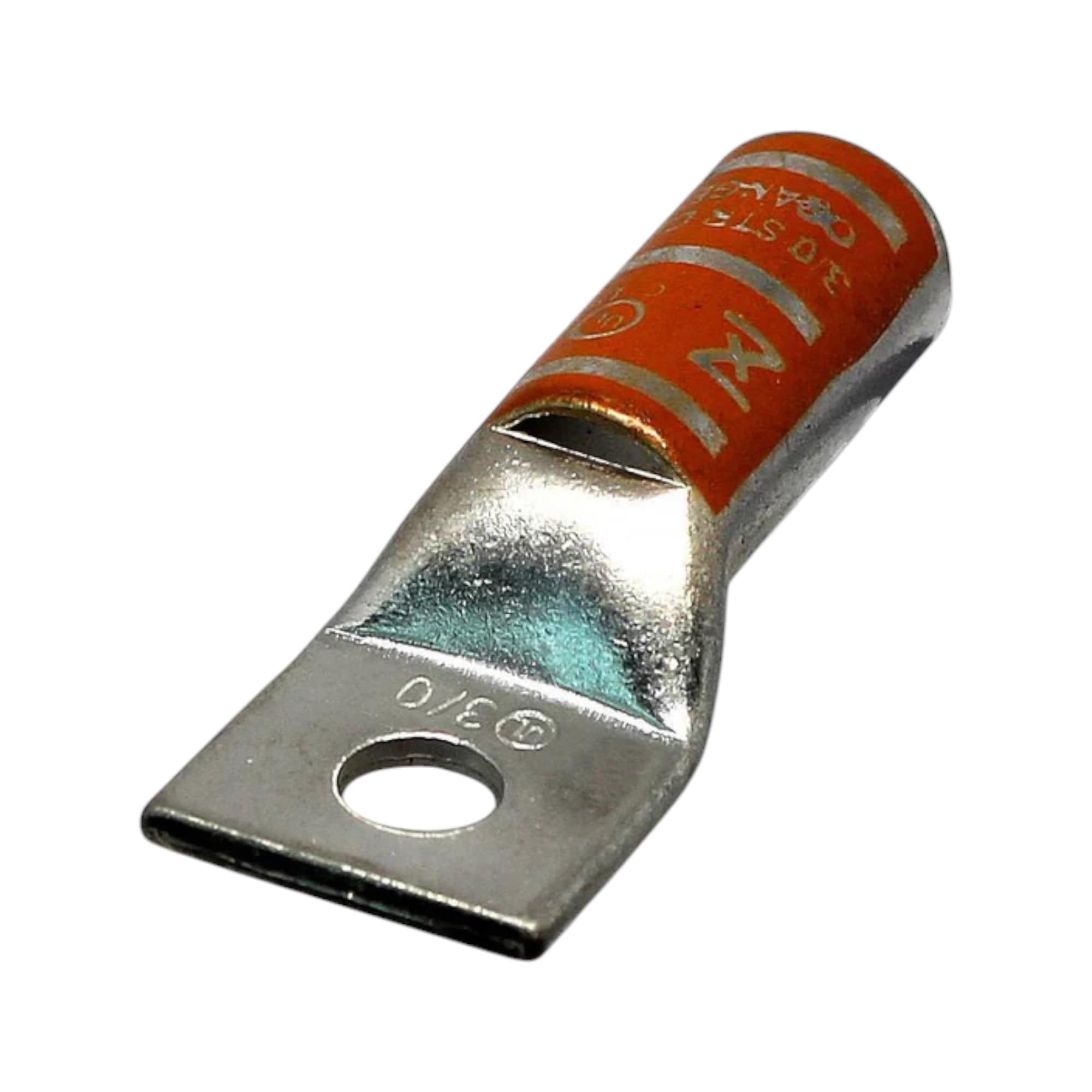

The Conversions Tech Copper Compression Lug is a robust connector designed for secure electrical connections. Built for 3/0 AWG conductors, it features a 1/2-inch bolt size and a long barrel, ensuring enhanced connectivity and stability. The tin-plated finish provides corrosion resistance for long-lasting performance. The distinctive orange color code simplifies identification, making installations quicker and more efficient. While it does not include a sight window, its durable design ensures reliable performance, making it an excellent choice for efficient and secure electrical connections in various applications.
Key Features
-
Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance.
-
Orange Color: Facilitates easy identification during installations.
-
3.189 Inch Overall Length: Provides ample space for secure conductor termination.
-
1.5 Inch Barrel Length: Long barrel design for optimal performance and stability.
-
35 kV Voltage Rating: Suitable for a wide range of voltage applications.
-
3/0 AWG Conductor Size: Accommodates various conductor sizes for versatility.
-
1/2 Inch Stud Size: Compatible with standard 1/2-inch stud sizes for easy installation.
-
I-50 Die Index: Precision die index for consistent and reliable crimping.
-
1.25 Inch L X 0.885 Inch W X 0.125 Inch Thk Pad Size: Adequate pad size for secure connections.
-
1 Pad Hole(S): Designed for a single conductor termination for simplicity.
- Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 3.189 Inch |
| Barrel Length | 1.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-50 |
| Pad Size | 1.25 Inch L X 0.885 Inch W X 0.125 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.484 Inch ID X 0.609 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
