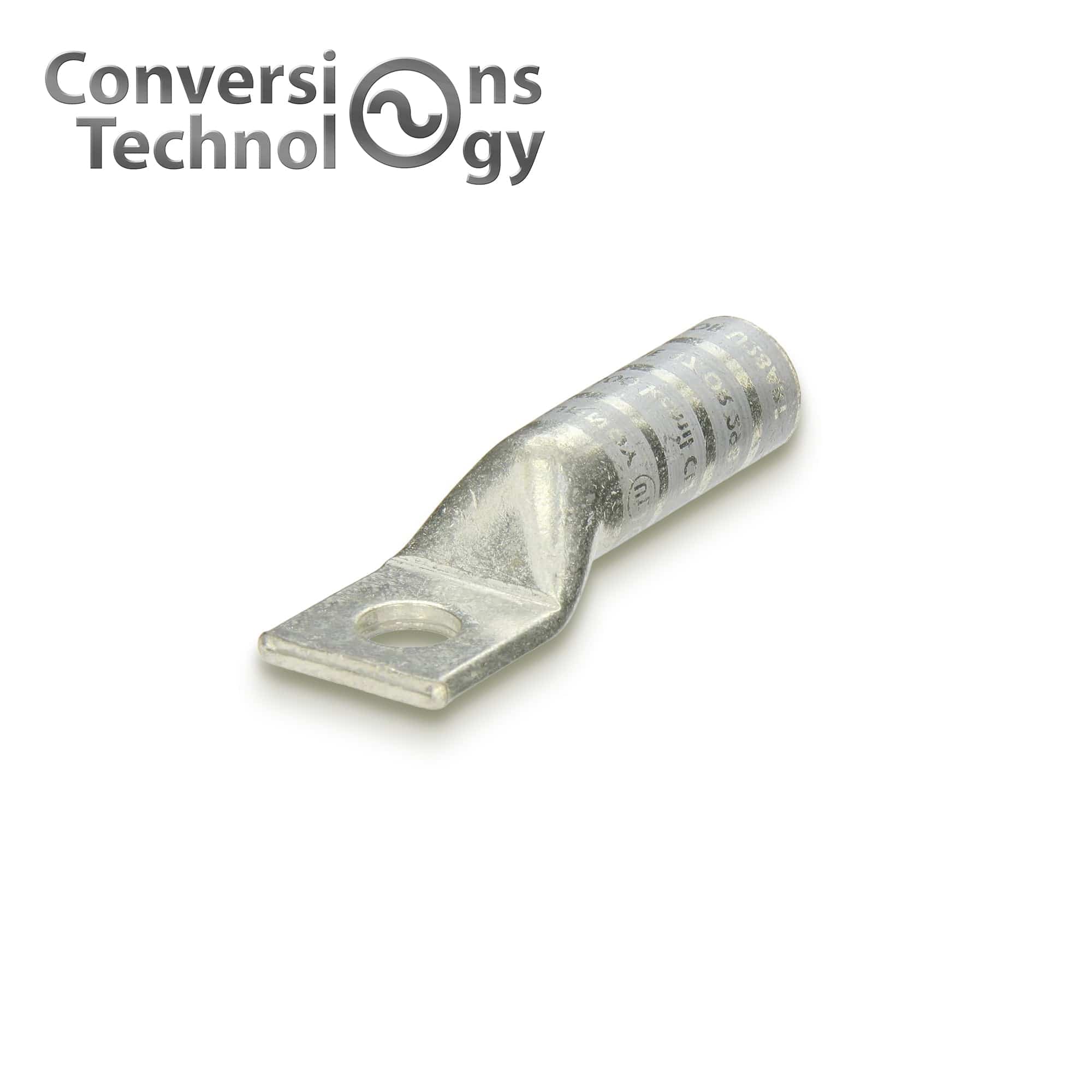

Copper Long Barrel One Hole Compression Lug 300 MCM 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09865
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a high-quality connector designed for 300 MCM conductors. It features a single 3/8-inch bolt hole and a long barrel construction for enhanced connectivity and stability. The tin-plated finish provides excellent corrosion resistance, ensuring long-lasting performance in various electrical applications. With its distinctive white color code, this lug allows for quick and easy identification, making installations faster and more efficient. Ideal for use in power distribution systems, this lug ensures secure and reliable electrical connections for optimal performance.
Key Features
- Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance for reliable electrical connections.
- White Color Code: Facilitates easy and quick identification within electrical systems.
-
35 kV Voltage Rating: Suitable for applications requiring high voltage capabilities.
- 300 MCM Conductor Size: Designed to accommodate heavy-duty conductors for versatile use.
- 3/8 Inch Stud Size: Compatible with standard stud sizes for ease of installation.
- I-66 Die Index: Specifies the die index for proper crimping and termination.
- Long Barrel Type: Enhances conductivity and provides a secure connection.
- 0.66 Inch ID X 0.812 Inch OD: Precise dimensions for effective conductor accommodation.
- Barrel Type Chamfered Entry: Streamlines installation, especially in confined spaces.
-
Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | White |
| Overall Length | 3.469 Inch |
| Barrel Length | 1.688 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 300 MCM |
| Stud Size | 3/8 Inch |
| Die Index | I-66 |
| Pad Size | 1.25 Inch L X 1.088 Inch W X 0.157 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| ID X OD | 0.66 Inch X 0.812 Inch |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
