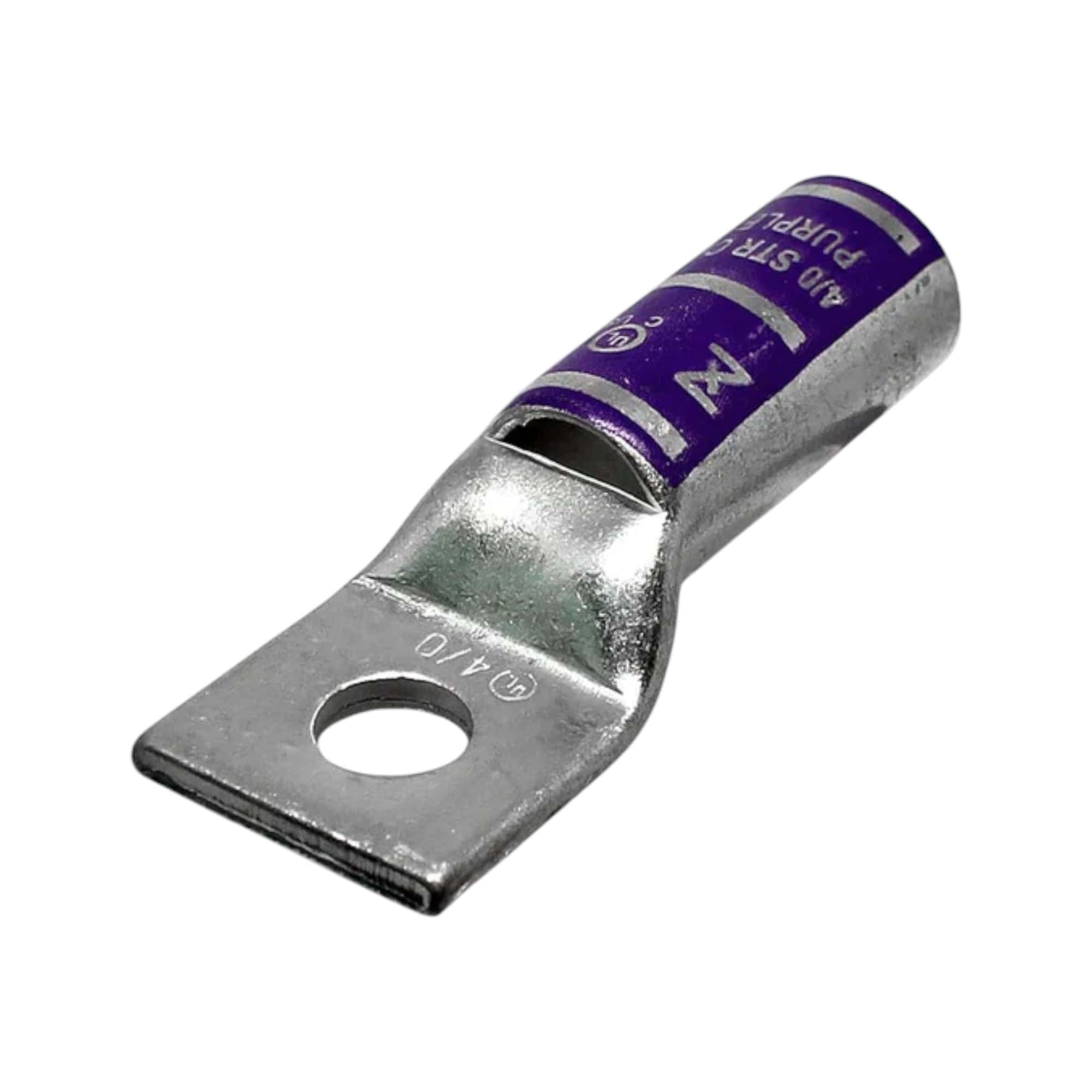

Copper Long Barrel One Hole Compression Lug 4/0 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09860
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is engineered for robust electrical connections, designed to accommodate a 4/0 conductor size with its 1-hole design and 1/2-inch bolt size. The long barrel construction enhances conductivity and ensures reliable performance, while the durable tin-plated finish provides excellent corrosion resistance. Its purple color code simplifies identification within electrical systems, and the sleek design, free of a sight window, prioritizes both functionality and efficiency. This lug is an ideal choice for high-performance electrical applications, offering secure and long-lasting connections across a range of environments.
Key Features
- Seamless Electro-Tin Plated Copper: Ensures high conductivity and corrosion resistance for reliable electrical connections.
- Purple Color Code: Facilitates easy and quick identification within electrical systems.
- 35 kV Voltage Rating: Suitable for applications requiring high voltage capabilities.
- 4/0 AWG Conductor Size: Designed to accommodate heavy-duty conductors for versatile use.
- 1/2 Inch Stud Size: Compatible with standard stud sizes for ease of installation.
- I-54 Die Index: Specifies the die index for proper crimping and termination.
- Long Barrel Type: Enhances conductivity and provides a secure connection.
- 0.546 Inch ID X 0.687 Inch OD: Precise dimensions for effective conductor accommodation.
- Barrel Type Chamfered Entry: Streamlines installation, especially in confined spaces.
-
Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements.
Technical Specifications
| Wire Size | 4/0 AWG |
|---|---|
| Stud Size | 1/2" |
| Color | Purple |
| Overall Length (L) | 74.8mm (2.94") |
| Neck Length (L1) | 28.7mm (1.13") |
| Outer Diameter (D) | 25.4mm (1.00") |
| Inner Diameter (D1) | 17.3mm (0.68") |
| Hole Diameter (D2) | 14.2mm (0.56") |
| Width (B) | 37.2mm (1.46") |
| Hole Spacing (E) | 13.1mm (0.51") |
| Thickness (F) | 3.0mm (0.12") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 230A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
