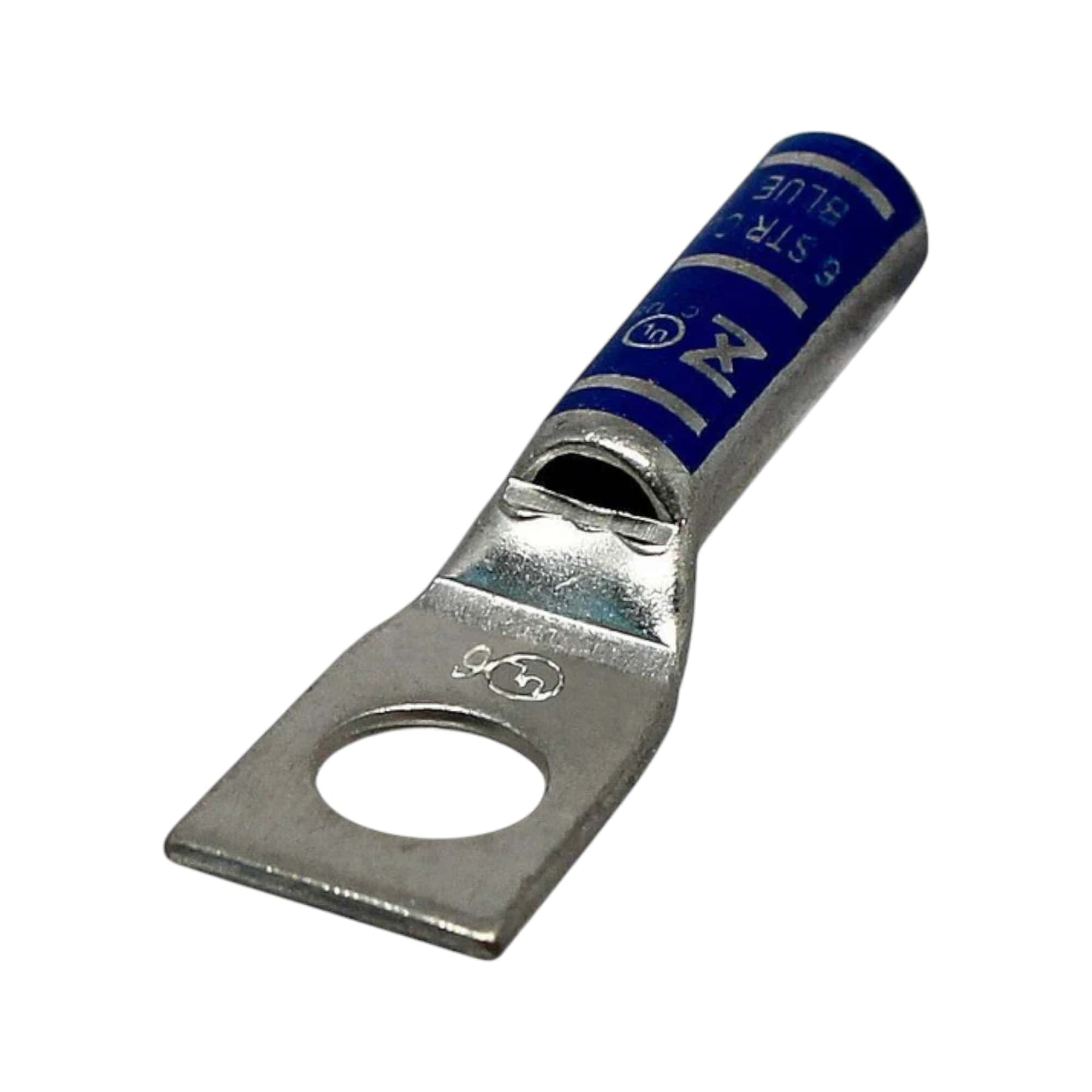

Copper Long Barrel One Hole Compression Lug 6 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09854
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Copper Compression Lug offers a robust solution for a variety of electrical applications. With a sturdy design for a conductor size of 6 and a 1/2-inch bolt size, the long barrel enhances both stability and conductivity, ensuring reliable performance. The tin-plated finish provides excellent corrosion resistance, while the blue color code makes for easy identification, streamlining installations. This lug is perfect for use in power distribution panels, industrial machinery, construction projects, and other applications that require secure, long-lasting electrical connections. It delivers dependability and efficiency in demanding environments.
Key Features
- Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance for reliable electrical connections.
- Blue Color: Facilitates easy identification during installations.
- 1.882 Inch Overall Length: Provides ample space for secure conductor termination.
- 1.125 Inch Barrel Length: Long barrel design for optimal performance and stability.
- 35 kV Voltage Rating: Suitable for a wide range of voltage applications.
- 6 AWG Conductor Size: Accommodates various conductor sizes for versatility.
- 1/2 Inch Stud Size: Compatible with standard 1/2-inch stud sizes for easy installation.
- I-24 Die Index: Precision die index for consistent and reliable crimping.
- 0.562 Inch L X 0.411 Inch W X 0.087 Inch Thk Pad Size: Adequate pad size for secure connections.
- 1 Pad Hole(S): Designed for a single conductor termination for simplicity.
- Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.
- Size 0.203 Inch ID X 0.295 Inch OD: Precise insulation dimensions for effective electrical insulation.
- Barrel Type Chamfered Entry: Facilitates easy and smooth conductor insertion.
-
Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements
Technical Specifications
| Wire Size | 6 AWG |
|---|---|
| Stud Size | 1/2" |
| Color | Blue |
| Overall Length (L) | 54.73mm (2.155") |
| Neck Length (L1) | 28.70mm (1.130") |
| Outer Diameter (D) | 17.78mm (0.70") |
| Inner Diameter (D1) | 7.92mm (0.312") |
| Hole Diameter (D2) | 5.82mm (0.232") |
| Width (B) | 22.8mm (0.90") |
| Hole Spacing (E) | 13.08mm (0.515") |
| Thickness (F) | 1.244mm (0.049") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 65A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
