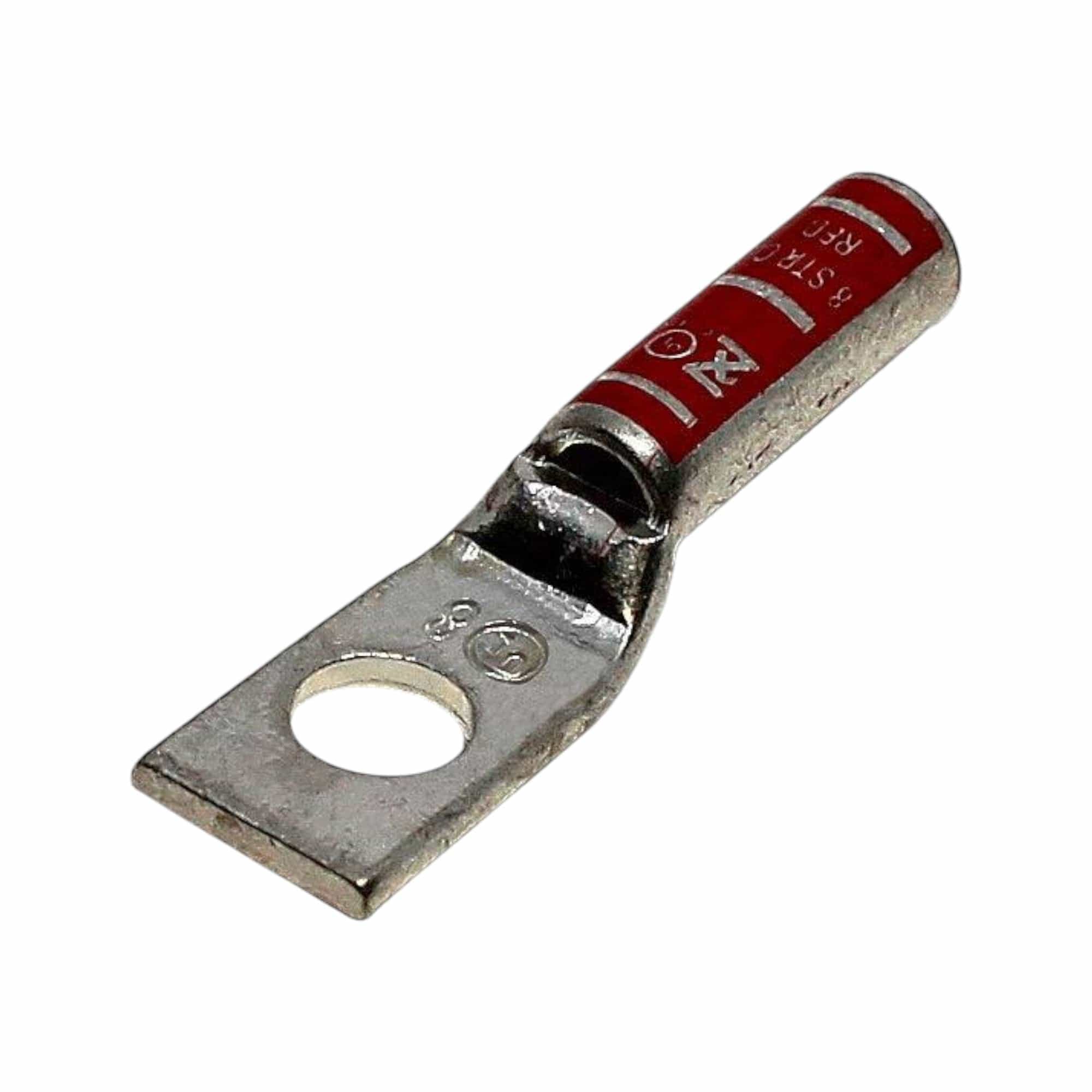

Copper Long Barrel One Hole Compression Lug 8 AWG 3/8-Inch Bolt Size
Shipping calculated at checkout
SKU: 210-09853
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a robust solution for a variety of electrical applications. Designed with an 8 AWG conductor size and a 3/8-inch bolt size, it offers enhanced stability and conductivity. The long barrel construction ensures a strong and secure connection, while the tin-plated finish provides excellent corrosion resistance for long-lasting performance. The red color coding allows for quick and easy identification during installation, streamlining the process. Ideal for use in power distribution panels, industrial machinery, construction projects, and any application requiring reliable and secure electrical connections.
Key Features
-
Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance.
-
Red Color: Facilitates easy identification during installations.
-
1.882 Inch Overall Length: Provides ample space for secure conductor termination.
-
0.812 Inch Barrel Length: Long barrel design for optimal performance and stability.
-
35 kV Voltage Rating: Suitable for a wide range of voltage applications.
-
8 AWG Conductor Size: Accommodates various conductor sizes for versatility.
-
3/8 Inch Stud Size: Compatible with standard 3/8-inch stud sizes for easy installation.
-
I-21 Die Index: Precision die index for consistent and reliable crimping.
-
0.875 Inch L X 0.593 Inch W X 0.093 Inch Thk Pad Size: Adequate pad size for secure connections.
-
1 Pad Hole(S): Designed for a single conductor termination for simplicity.
-
Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.
-
Size 0.179 Inch ID X 0.272 Inch OD: Precise insulation dimensions for effective electrical insulation.
-
Barrel Type Chamfered Entry: Facilitates easy and smooth conductor insertion.
- Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements.
Technical Specifications
| Wire Size | 8 AWG |
|---|---|
| Stud Size | 3/8" |
| Color | Red |
| Overall Length (L) | 44.8mm (1.76") |
| Neck Length (L1) | 21.0mm (0.83") |
| Outer Diameter (D) | 15.2mm (0.60") |
| Inner Diameter (D1) | 7.1mm (0.28") |
| Hole Diameter (D2) | 4.8mm (0.19") |
| Width (B) | 20.5mm (0.81") |
| Hole Spacing (E) | 10.4mm (0.41") |
| Thickness (F) | 1.4mm (0.05") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 50A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
