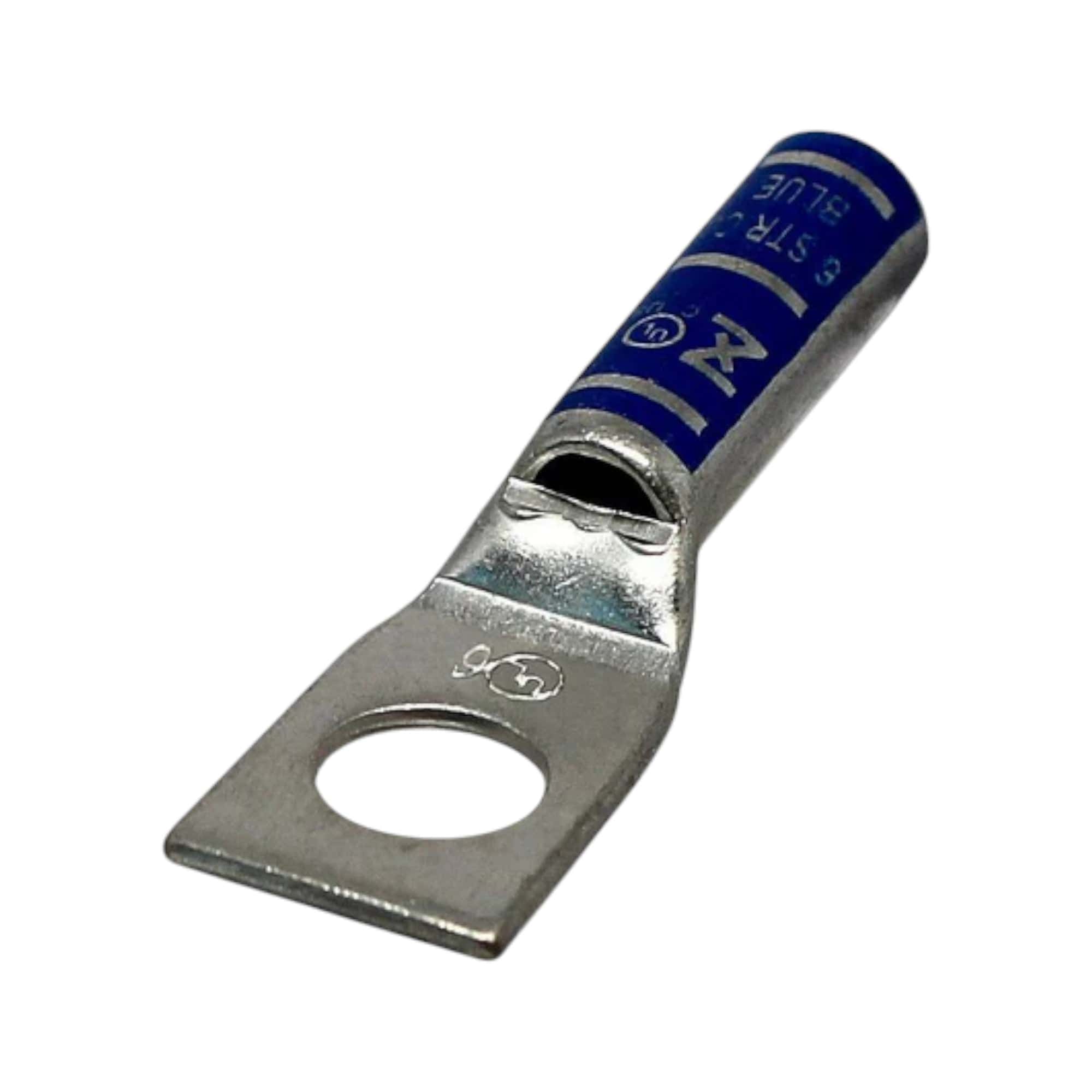

Copper Long Barrel One Hole Compression Lug 6 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98065C
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Key Features
- 99.9 % Conductivity Copper — tin-plated to combat oxidation and galvanic corrosion.
- 3/8″ Stud Size — fits standard terminal blocks, disconnects, and busbars.
- Long-Barrel Design — extra crimp surface ensures vibration-resistant reliability.
- Blue Color Code — easy 6 AWG identification during installs and inspections.
- 65 A / 35 kV Rated — supports high-current circuits up to 90 °C.
- UL Recognized & CE / RoHS Compliant — meets global safety standards.
Technical Specifications
| Wire Size | 6 AWG |
|---|---|
| Stud Size | 3/8″ (9.5 mm) |
| Overall Length (L) | 47.1 mm | 1.85″ |
| Barrel Length (L1) | 21.0 mm | 0.83″ |
| Barrel ID (D1) | 7.9 mm | 0.31″ |
| Barrel OD (D2) | 5.8 mm | 0.23″ |
| Flange Length (B) | 22.8 mm | 0.90″ |
| Flange Width (E) | 10.4 mm | 0.41″ |
| Material | Electro-tin-plated copper (99.9 %) |
| Temperature Rating | -40 °C → 90 °C |
| Voltage Rating | 35 kV |
| Max Current | 65 A |
| Certifications | UL Recognized, CE, RoHS |
Ideal Applications
- Main service panels & load centers
- Industrial control cabinets & switchgear
- Backup generators, solar combiner boxes, EV chargers
- Marine & RV power distribution
