Copper Long Barrel One Hole Compression Lug 3/0 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98072A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

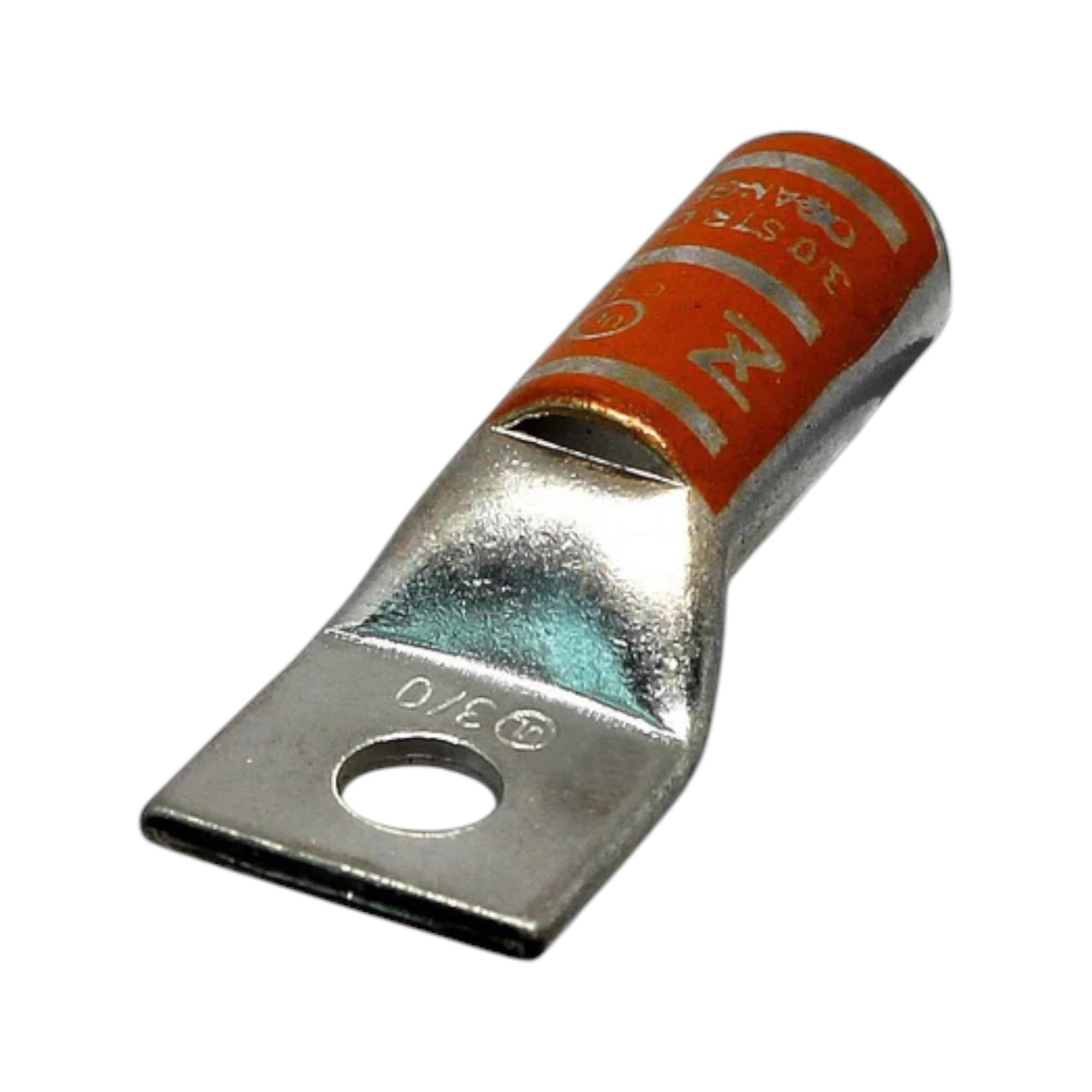

This Conversions Tech robust copper compression lug is designed to provide secure and reliable electrical connections. Accommodating a 3/0 conductor size, it features a 5/16-inch bolt size and a long barrel with tin plating to ensure optimal conductivity and long-lasting performance. The orange color code simplifies identification, making installations more efficient, while the sleek design without a sight window maintains a streamlined appearance. Ideal for a variety of electrical applications, this lug delivers both durability and ease of use in demanding environments.
Key Features
- Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance.
- Orange Color: Facilitates easy identification during installations.
- 3.876 Inch Overall Length: Provides ample space for secure conductor termination.
- 1.5 Inch Barrel Length: Long barrel design for optimal performance and stability.
- 35 kV Voltage Rating: Suitable for a wide range of voltage applications.
- 3/0 AWG Conductor Size: Accommodates various conductor sizes for versatility.
- 5/16 Inch Stud Size: Compatible with standard 5/16-inch stud sizes for easy installation.
- I-50 Die Index: Precision die index for consistent and reliable crimping.
- 1.937 Inches L X 0.885 Inch W X 0.125 Inch Thk Pad Size: Adequate pad size for secure connections.
- 1 Pad Hole(S): Designed for a single conductor termination for simplicity.
- Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.
Technical Specifications
| Wire Size | 3/0 AWG |
| Stud Size | 5/16" |
| Color | Orange |
| Overall Length (L) | 58.4mm (2.3") |
| Barrel Length (L1) | 19.1mm (0.75") |
| Barrel Diameter (D) | 22.9mm (0.905") |
| Barrel Inner Diameter (D1) | 15.7mm (0.62") |
| Barrel Outer Diameter (D2) | 12.9mm (0.51") |
| Flange Length (B) | 30.4mm (1.2") |
| Flange Width (E) | 8.7mm (0.34") |
| Thickness (F) | 2.7mm (0.108") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 310A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
