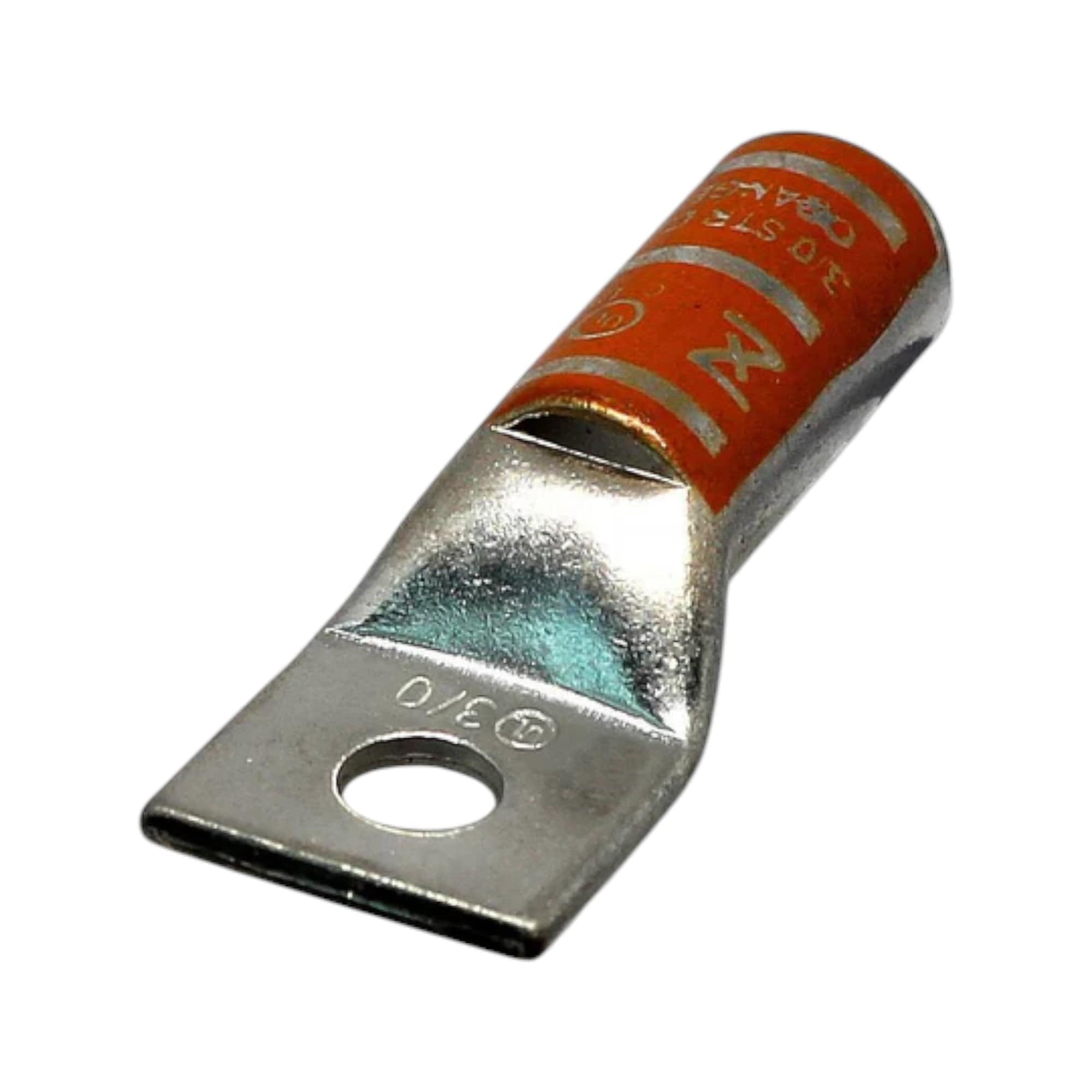

Copper Long Barrel One Hole Compression Lug 3/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98072B
1000 in stock
Open here
The Conversions Tech robust copper compression lug designed for secure electrical connections. Tailored for a conductor size of 3/0, it features a 3/8-inch bolt size and a long barrel with tin plating to ensure reliable performance. The distinctive orange color code simplifies identification, making installations more efficient. With its streamlined design and absence of a sight window, this lug offers optimal performance, ideal for a wide range of electrical applications.
Key Features
- Robust Copper Construction: Provides high conductivity and durability, ensuring a reliable and secure electrical connection.
- 3/0 Conductor Size: Designed specifically for 3/0 gauge conductors, making it suitable for medium to large electrical wiring applications.
- 3/8-inch Bolt Size: Features a 3/8-inch bolt hole for a secure and stable attachment.
- Long Barrel Design: Offers ample crimping space, ensuring a strong and stable electrical connection over time.
- Tin-Plated Finish: Provides corrosion resistance, enhancing the lug’s performance and longevity, even in harsh environments.
- Orange Color Code: The distinct orange color code makes it easy to identify the lug's size during installation.
-
Streamlined Design (No Sight Window): The absence of a sight window keeps the design clean and compact while still maintaining optimal performance.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 3.189 Inch |
| Barrel Length | 1.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 3/8 Inch |
| Die Index | I-50 |
| Pad Size | 1.25 Inch L X 0.885 Inch W X 0.125 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.484 Inch ID X 0.609 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
Specifications
| Part Number | 210-98072B |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — One-Hole Long Barrel, 3/0 AWG, 3/8 Inch stud
CT P/N 210-98072B is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA27 |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at stocked, ships same day pricing.
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
