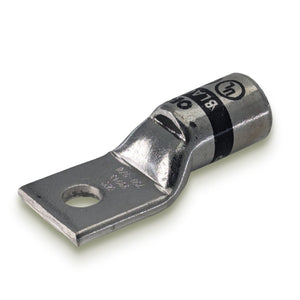

Copper Short Barrel One Hole Compression Lugs 750 MCM 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09821
994 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 1-Hole Lug is engineered to meet the demands of heavy-duty electrical applications. Its 750 conductor size ensures compatibility with larger wire gauges, while the 3/8-inch bolt size provides a secure and stable connection. The standard barrel design enhances versatility, and the inclusion of a sight window allows for visual inspection, ensuring proper wire insertion. With a black color code, this lug facilitates easy identification, and the tin-plated construction adds corrosion resistance, making it suitable for various environments and applications where a durable and efficient electrical connection is essential.
Key Features
-
Conductor Size: Designed for a conductor size of 750 MCM, making it compatible with large-gauge copper conductors.
-
Hole Design: 1-Hole configuration, providing a secure point of connection for the conductor.
-
Bolt Size: 3/8 inch stud size, ensuring compatibility with standard bolt sizes.
-
Barrel Type: Standard, Straight Barrel design, offering versatility in various electrical applications.
-
Material: Seamless Electro-Tin Plated Copper, ensuring optimal conductivity and durability.
-
Color Code: Black color code for easy identification and adherence to industry standards.
-
Sight Window: Equipped with a sight window, allowing for visual inspection of the conductor to ensure proper insertion.
-
Die Index: I-106 Die Index, providing compatibility with specific crimping tools.
- Pad Size: 1.437 inches length X 1.901 inches width X 0.282 inches thickness, offering a suitable surface area for the connection.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Black |
| Overall Length | 3.839 inches |
| Barrel Length | 1.5 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 750 MCM |
| Stud Size | 3/8 inch |
| Die Index | I-106 |
| Pad Size | 1.437 inches L X 1.901 inches W X 0.282 inches Thk |
| Pad Holes | 1 Pad Hole |
| Barrel Type | Standard |
| Size | 1.031 inch ID X 1.313 inch OD |
| Barrel Type | Chamfered Entry |
| Temperature Rating | 90°C |
