Copper Short Barrel Two Hole Compression Lugs 1 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98048A
970 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

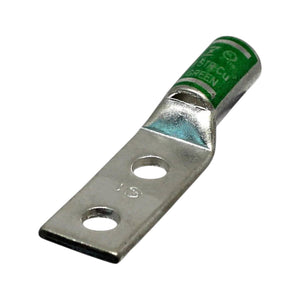

This Conversions Tech copper compression lug offers a reliable solution for various electrical applications, featuring a 1/4-inch bolt size and 5/8-inch hole spacing for flexible installations. The standard barrel design, complemented by a sight window, ensures both easy and secure connections. The tin-plated finish provides excellent corrosion resistance, enhancing long-term durability. Its distinctive green color code allows for quick and easy identification, making it a durable and user-friendly choice for a wide range of electrical systems. Ideal for ensuring secure, long-lasting connections in various electrical environments.
Key Features
- Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.
- Green Color: Distinctive green color code for quick identification in electrical systems.
- 2.392 Inch Overall Length: Optimal size for versatile use in various electrical applications.
- 0.625 Inch Barrel Length: Balanced barrel length for secure conductor termination.
- Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.
- 35 kV Voltage Rating: Suitable for applications with higher voltage requirements.
- 1 AWG Conductor Size: Accommodates 1 AWG wire size for diverse wiring needs.
- 1/4 Inch Stud Size: Compatible with standard 1/4-inch stud sizes for ease of installation.
- I-37 Die Index: Designated die index for efficient and precise crimping.
- 1.437 Inch L X 0.673 Inch W X 0.109 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.
- 2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.
- 5/8 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.
- Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.
- Inner Diameter 0.359 Inch: Specific inner diameter for precise connections.
- Outer Diameter 0.468 Inch: Specific outer diameter for precise connections.
- Chamfered Type Cable Entry: Facilitates smooth and easy wire insertion during installation.
-
Temperature Rating 90 Deg C: Suitable for applications with a temperature rating of up to 90 degrees Celsius.
Technical Specifications
| Wire Size | 1 AWG |
|---|---|
| Color | Green |
| Overall Length (L) | 59.2mm (2.33") |
| Neck Length (L1) | 34.3mm (1.35") |
| Neck Length (L2) | 16.0mm (0.63") |
| Outer Diameter (D) | 16.7mm (0.66") |
| Inner Diameter (D1) | 11.6mm (0.46") |
| Hole Diameter (D2) | 9.1mm (0.36") |
| Width (B) | 20.3mm (0.80") |
| Hole Spacing (E) | 7.1mm (0.28") |
| Thickness (F) | 2.5mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 1/4" |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 85 Amps |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
