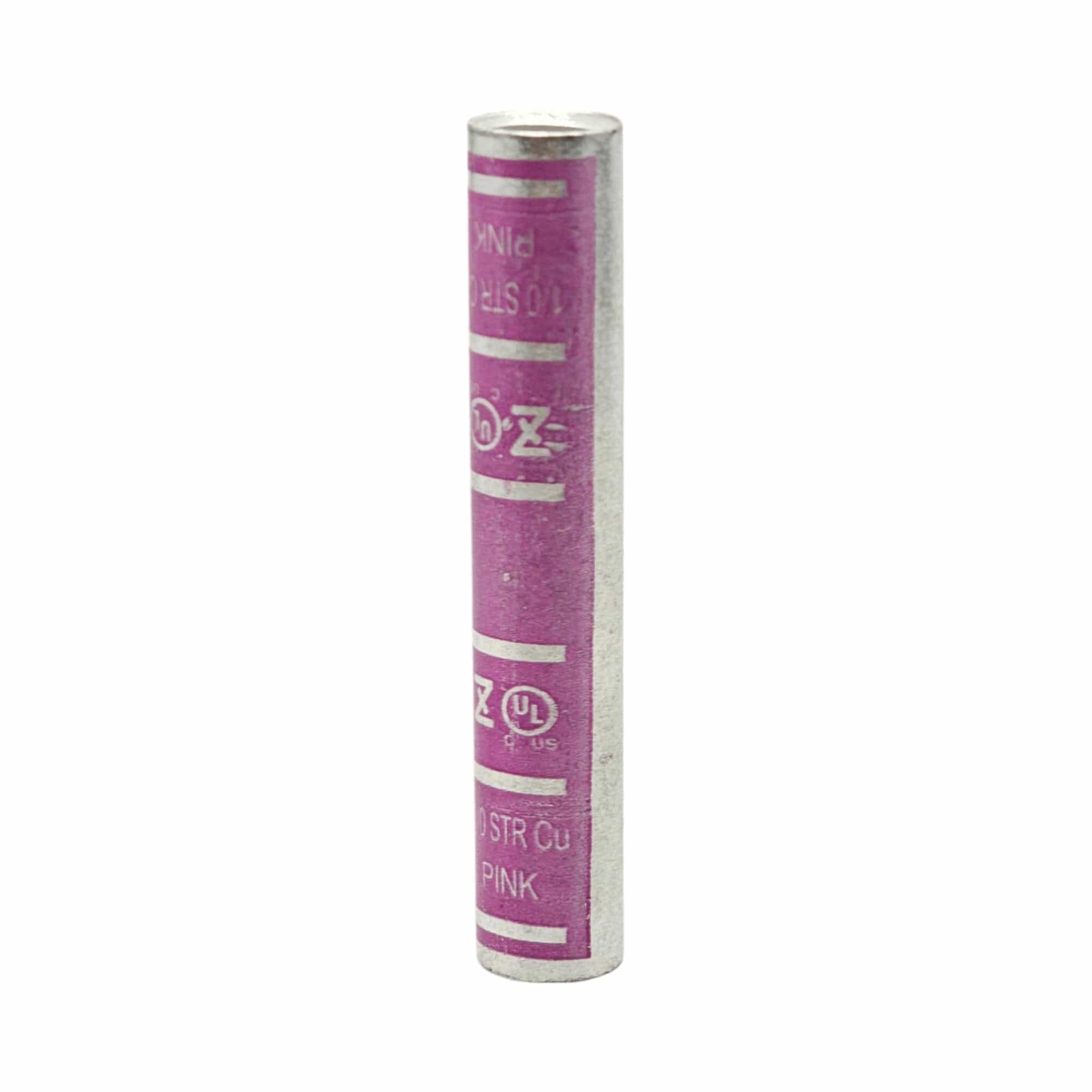

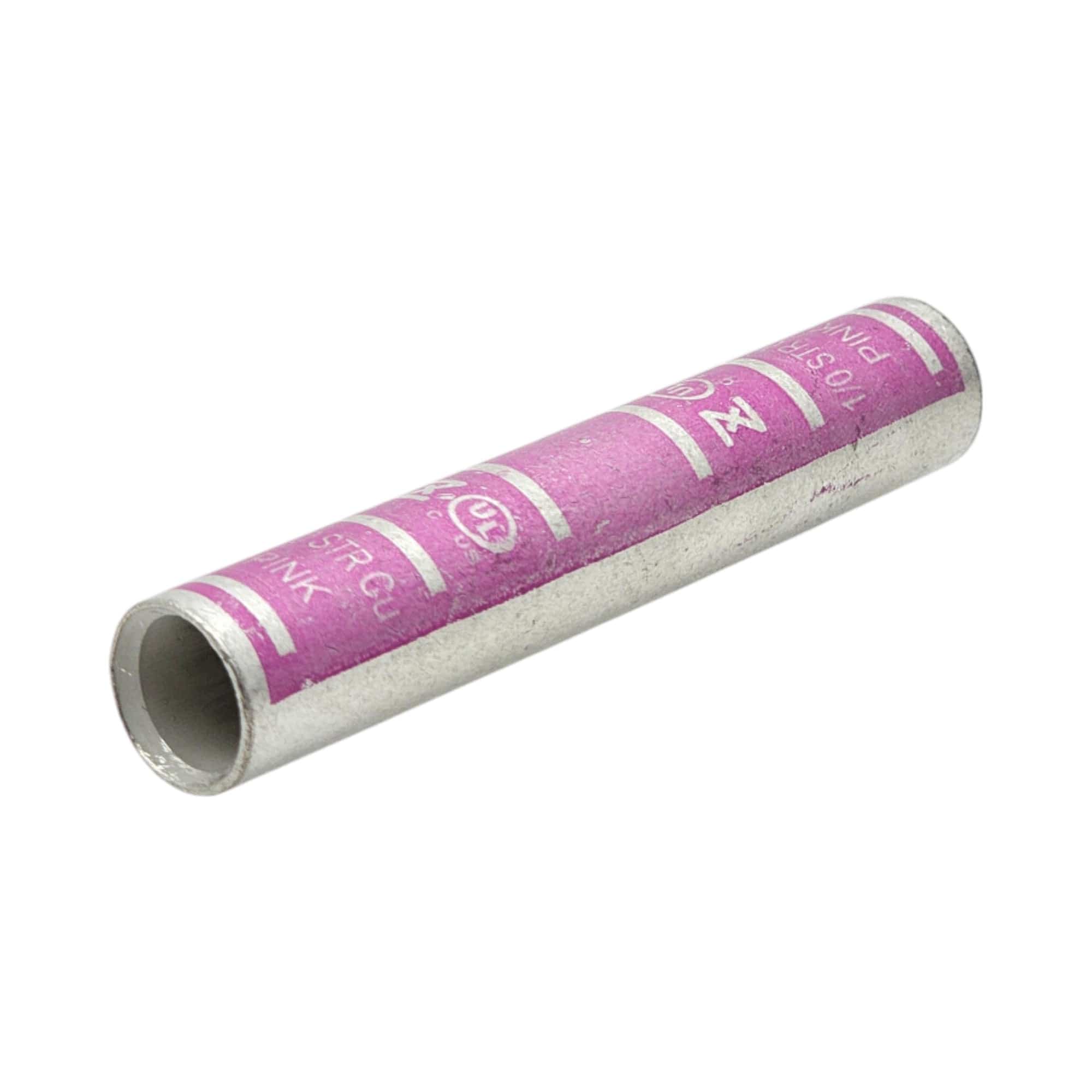

Copper Long Length Compression Connector 1/0 AWG
Shipping calculated at checkout
SKU: 212-5010
700 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Technology 1/0 AWG Copper Compression Splice (Long Barrel) is designed for high-demand commercial and industrial applications. Its advanced construction ensures exceptional conductivity, mechanical strength, and corrosion resistance, making it an ideal choice for critical electrical systems.
Specifications
- Type: Center Wire Stop
- Barrel Length: Extended (Long Barrel)
- Overall Length: 2.750 inches
- Inner Diameter: 0.39 inches
- Outer Diameter: 0.515 inches
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Body Material: High-Strength Seamless Copper with Electro-Tin Plating
- Conductor Size: 1/0 AWG
- Color Code: Pink
- Barrel Design: Long with Chamfered End
- Application: Grounding and Bonding
- Temperature Rating: 90°C
Applications
This long-barrel copper compression splice is built for critical applications requiring enhanced mechanical strength and electrical reliability, including:
- High-voltage power distribution networks
- Industrial machinery connections
- Renewable energy installations (solar and wind systems)
- Grounding systems and bonding assemblies
- Critical infrastructure and substation components
Key Features
- Extended Barrel Design: Increases crimping area for enhanced mechanical stability and reduced electrical resistance.
- High-Strength Copper Construction: Seamless copper body with electro-tin plating ensures superior conductivity and corrosion resistance.
- Chamfered End: Simplifies conductor insertion for faster and more efficient installation.
- Color-Coded Identification: Pink marking ensures quick and accurate identification.
- Wide Operating Range: Rated for up to 35 kV and 90°C for use in demanding electrical systems.
