Copper Long Length Compression Splice 1 AWG
Shipping calculated at checkout
SKU: 212-5001
900 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

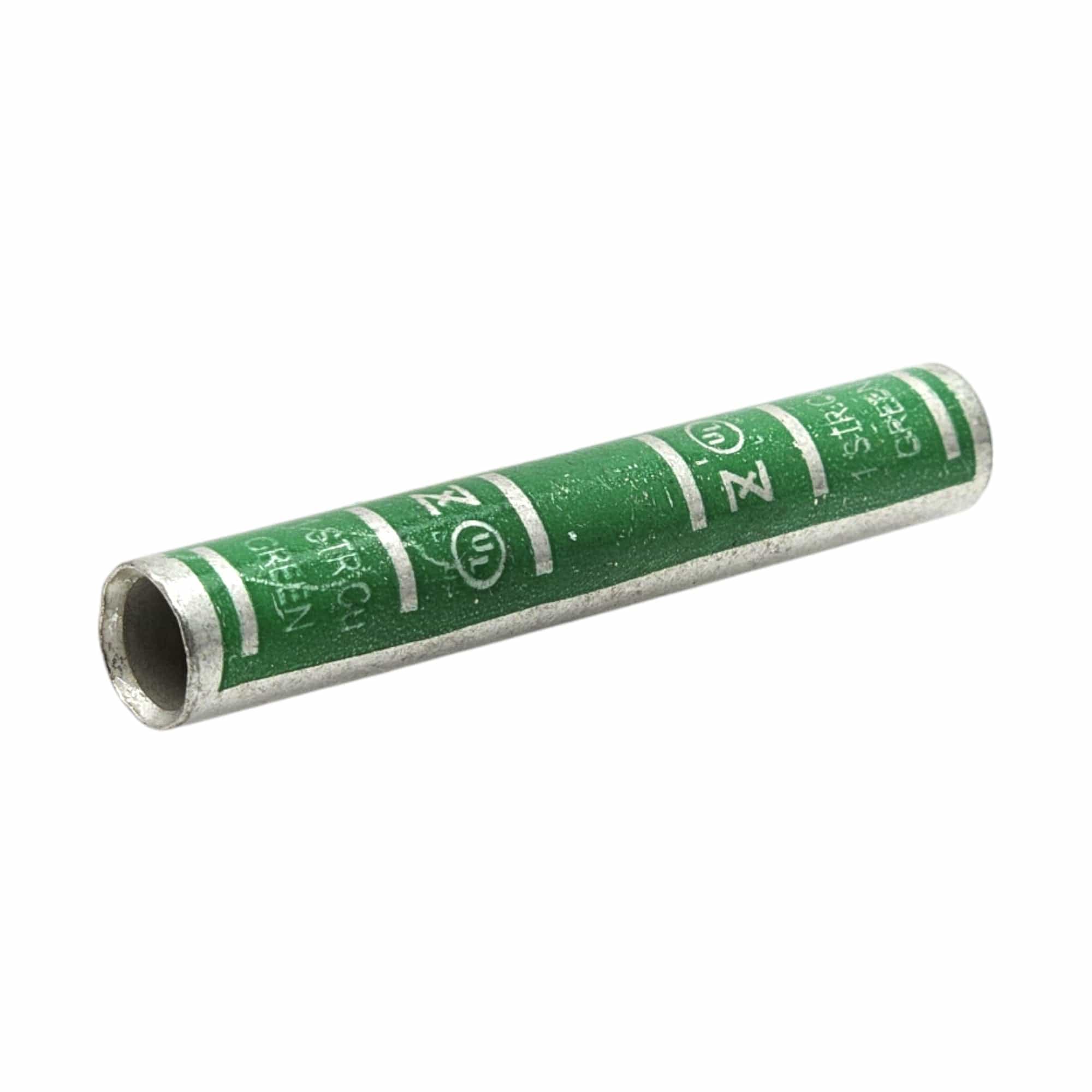

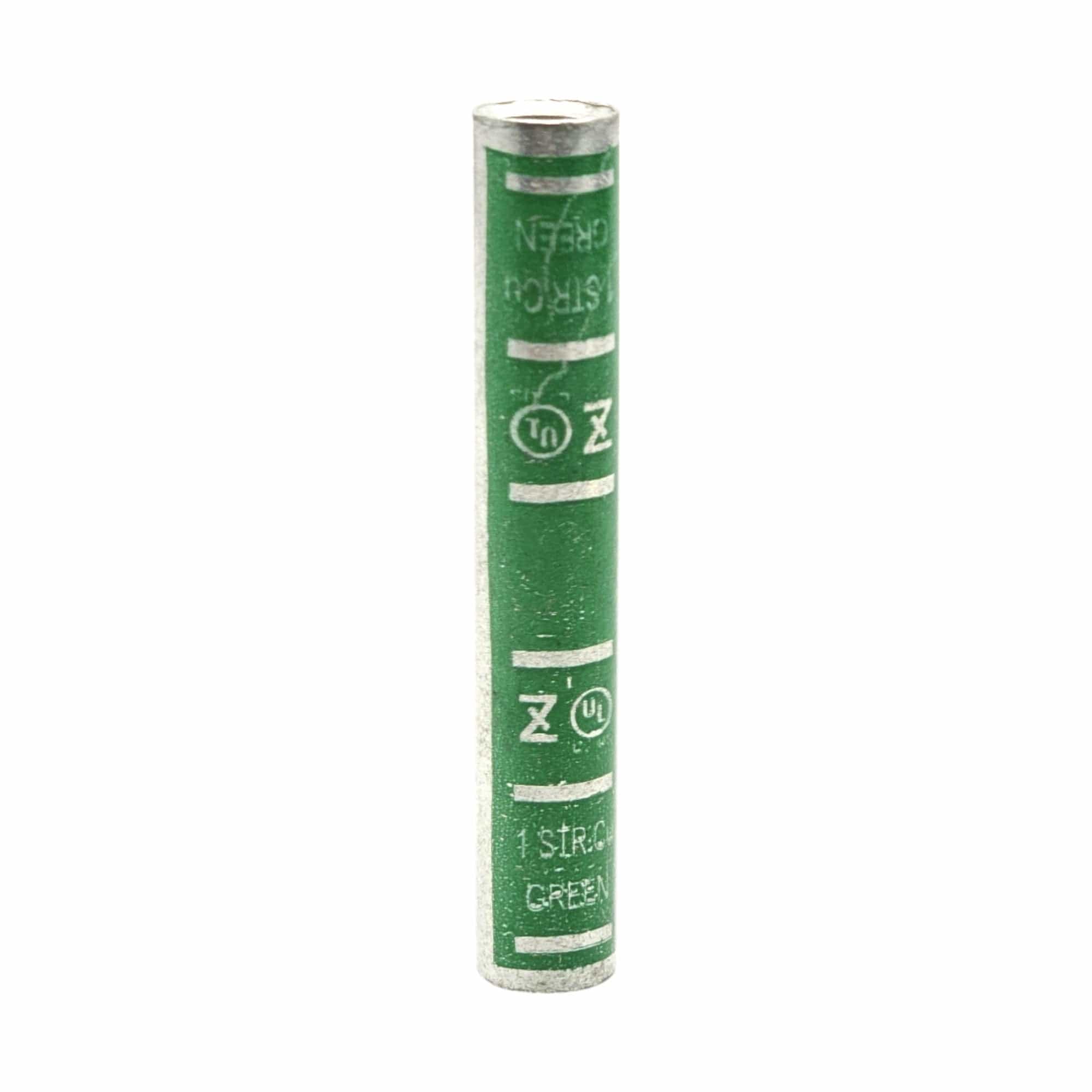

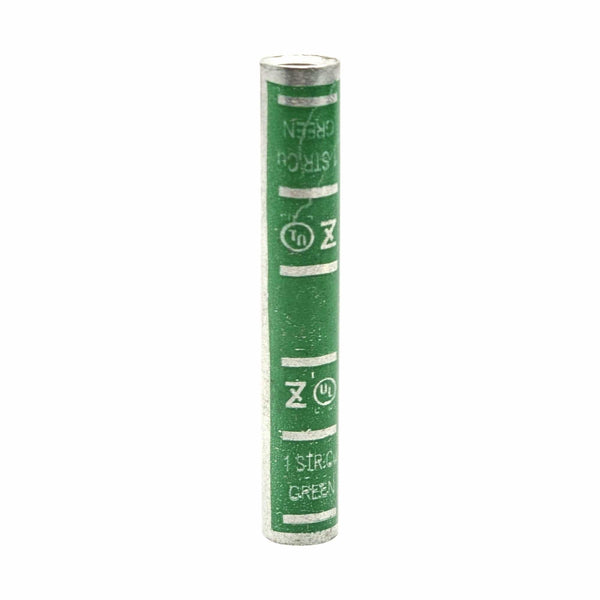

Conversions Tech Long Barrel Copper Crimp Connector — 1 AWG | UL / RoHS / BABA Compliant
The Conversions Tech Long Barrel Copper Crimp Connector sets the benchmark for durability and performance in high-demand electrical applications. Designed for 1 AWG copper conductors (compatible with 2 AWG – 1 AWG), it features an extended barrel for enhanced mechanical strength, conductivity, and crimping integrity. Built from seamless high-strength copper and finished with electro-tin plating, this connector offers superior corrosion resistance and long-term reliability across diverse power systems.
The orange color code ensures quick wire-size identification and compliance with industry standards. Certified to UL and RoHS standards and manufactured under BABA (Build America, Buy America) compliance, it is the trusted choice for professional installers seeking precision, safety, and longevity.
Key Features
- Extended Barrel Design: Provides greater crimping surface area for high-strength, low-resistance terminations.
- Seamless Copper Construction: Fabricated from high-strength copper for maximum conductivity and durability.
- Electro-Tin Plated Finish: Offers superior corrosion protection and extended service life.
- Wire Size Compatibility: Accepts conductors from 2 AWG to 1 AWG for flexible installation.
- Orange Color Code: Enables quick identification and compliance with industry color standards.
- High-Voltage Rated: Suitable for systems up to 35 kV.
- Chamfered Entry: Allows smooth wire insertion and ensures consistent crimping results.
- 90 °C Temperature Rating: Performs reliably in elevated-temperature and high-load environments.
- UL / RoHS / BABA Certified: Meets global safety and U.S. sourcing requirements for federal projects.
Technical Specifications
| Type | Long Barrel with Center Wire Stop |
| Length | 2.500″ (63.5 mm) |
| Inner Diameter | 0.390″ (9.9 mm) |
| Outer Diameter | 0.500″ (12.7 mm) |
| Conductor Material | High-Strength Seamless Copper |
| Finish | Electro-Tin Plated for Corrosion Resistance |
| Voltage Rating | 35 kV |
| Temperature Rating | 90 °C (194 °F) |
| Conductor Size | 1 AWG (compatible with 2 AWG – 1 AWG) |
| Color Code | Orange |
| Certifications | UL Listed • RoHS Compliant • BABA Certified |
| Origin | USA *Stock product may be sourced elsewhere. |
Applications
- Power distribution panels and control centers
- Industrial machinery and heavy-duty equipment wiring
- Renewable energy systems (solar and wind)
- Electrical substations and transformers
- Commercial and residential construction projects
- Data centers and telecommunications infrastructure
- Generators and temporary power installations
- Utility network connections and maintenance
The Conversions Tech Long Barrel Copper Crimp Connector delivers exceptional durability, conductivity, and corrosion protection for professional-grade installations. Its extended-barrel design, seamless copper body, and precision finish ensure dependable performance in the most demanding environments.
