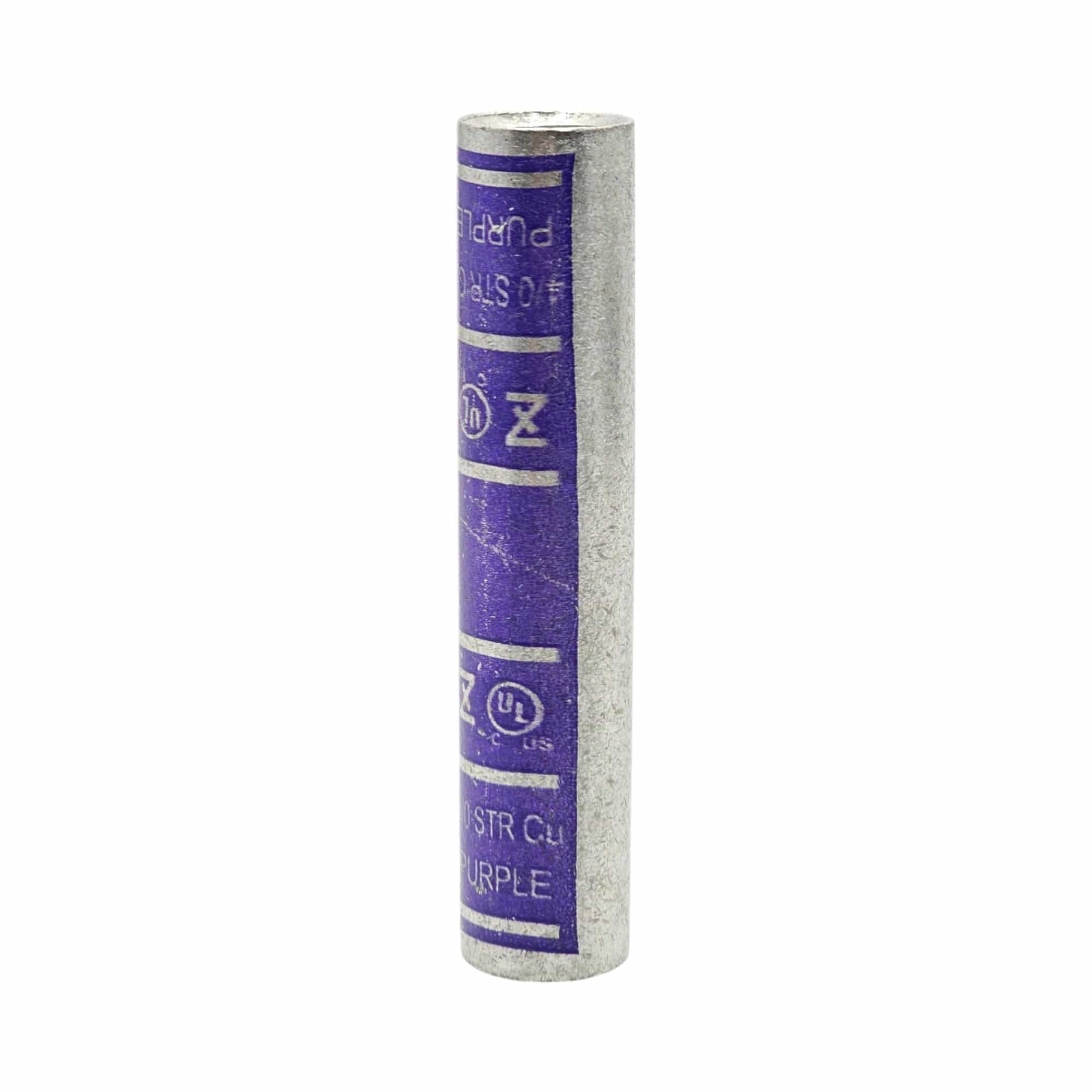

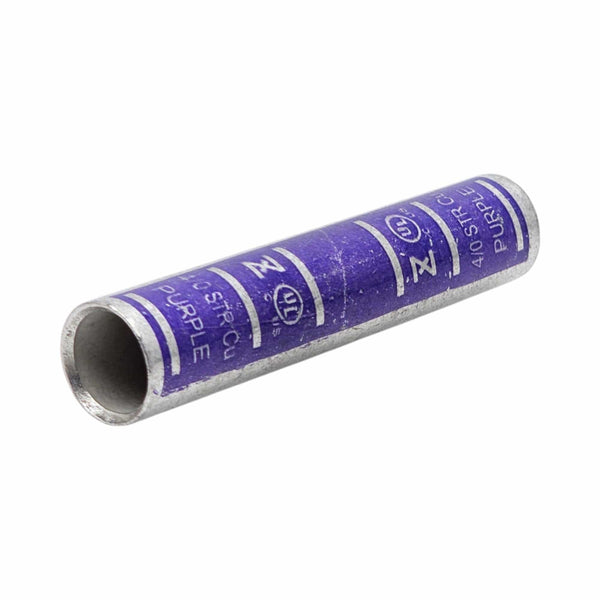

Long Barrel Compression Splice 4/0 AWG Copper, 90°C, Purple Code, UL Listed | 212-5040
Shipping calculated at checkout
SKU: 212-5040
834 in stock
Open here
Goes with
Specifications
| Part number | 212-5040 |
|---|---|
| Conductor | 4/0 AWG copper, stranded (Cu only) |
| Connector Type | Inline butt splice, long-length barrel with center stop |
| Material / Finish | Seamless copper, electro-tin plated |
| Overall Length | 3.000 in |
| Inner Diameter | 0.546 in |
| Outer Diameter | 0.687 in |
| Voltage / Temperature | 35 kV max (proper installation) / 90°C |
| Color Code | Purple |
| Certifications | UL Listed, RoHS Compliant |
| Category | Electrical connector |
| Weight | 0.45 lb |
| Tin-Plated Finish | Offers corrosion resistance and enhanced conductivity for both indoor and outdoor use. |
| Purple Color Code | Simplifies gauge identification during field installations. |
| Certified Quality | Fully UL Listed and RoHS Compliant for global electrical standards. |
| Industrial Control Panels | Designed for MCCs, wireways, and power bus applications. |
Where it's used
- Industrial Control Panels: Designed for MCCs, wireways, and power bus applications.
- Renewable & Backup Power Systems: Suitable for solar PV, energy storage, UPS, and telecom DC systems.
What's included
- (1) Copper Long-Length Compression Splice — 4/0 AWG
Cross reference
| Our part | Burndy | Panduit | Blackburn | ILSCO | Thomas & Betts Color-Keyed | Penn-Union | 3M | Anderson | Dossert | Homac | Kearney |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 212-5040 | YS28 | SCL4/0 | CU40 | CTL-4/0 | 54812 | BBCU-4/0 | 11008 | VHS-4/0 | DPC-21 | C4/0 | 136700-040 |
Matched by size and type. Trademarks belong to their owners.
