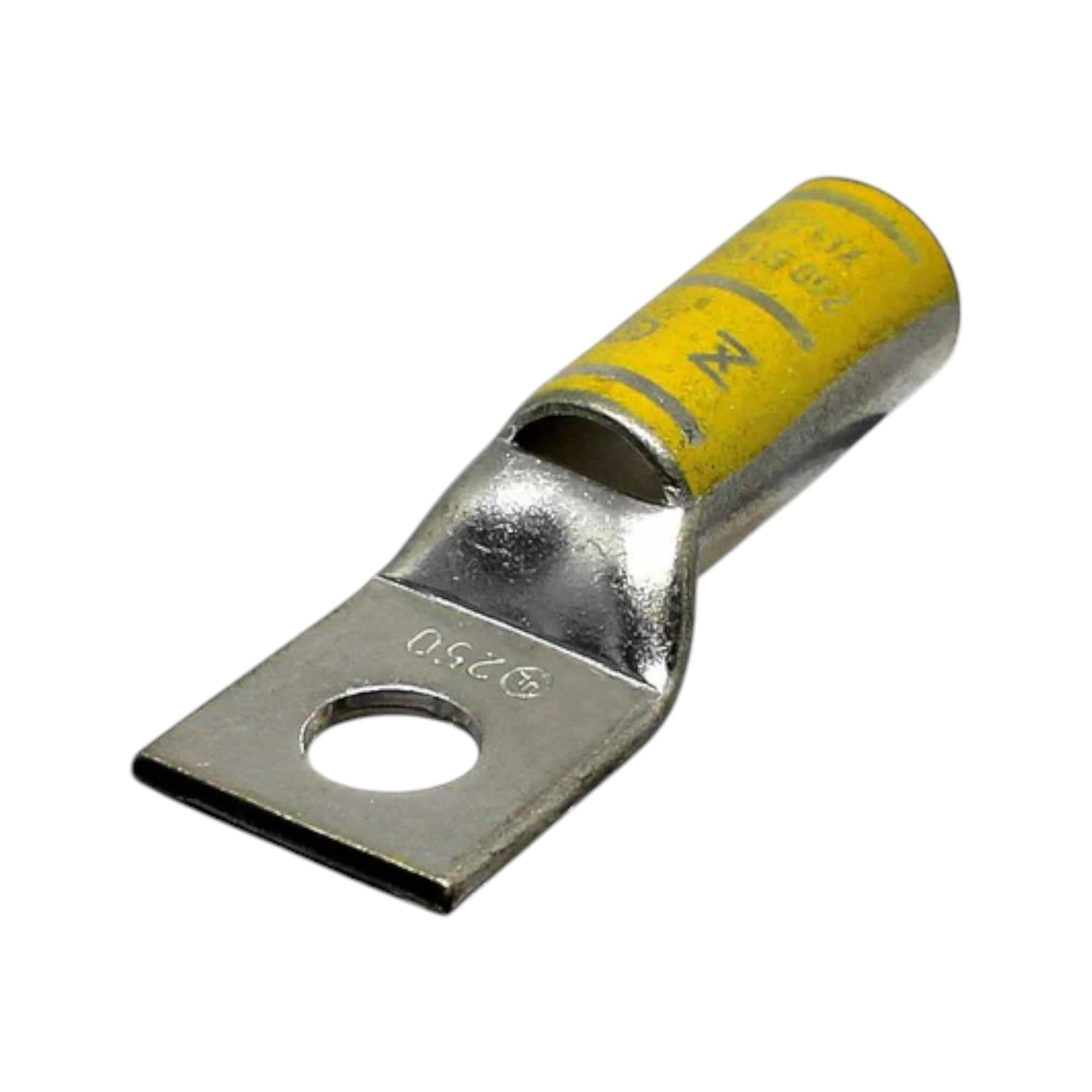

250 MCM Copper Compression Lug, 1-Hole, Long Barrel, 1/4" Stud | 210-98074
Shipping calculated at checkout
SKU: 210-98074
146 in stock
Open here
Goes with
At a glance: Long barrel compression lug for 250 MCM copper conductors with 1/4-inch stud hole. Engineered by for power distribution, switchgear, renewable energy, and EV infrastructure applications. Seamless electro-tin plated copper construction provides conductivity and corrosion resistance.
Specifications
| Part number | 210-98074 |
|---|---|
| Conductor | 250 kcmil copper, Class B stranded through M (flex-rated) |
| Barrel | Long |
| Voltage rating | 35 kV |
| Stud | 1/4 in, 1 hole |
| Overall length | 2.65 in (B) |
| Tongue width | 1.088 Inch |
| Tongue thickness | 0.157 Inch |
| Die | Index 62, Yellow, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 35 kV, 255 A at 75 C |
| Color code | Yellow |
| Category | Electrical connector |
| Weight | 0.25 lb |
| Wire Size | 250 MCM |
| Stud Size | 1/4" |
| Overall Length (L) | 67.3 mm (2.65") |
| Neck Length (L1) | 18.4 mm (0.72") |
| Outer Diameter (D) | 27.9 mm (1.10") |
| Inner Diameter (D1) | 19.1 mm (0.75") |
| Hole Diameter (D2) | 16.0 mm (0.63") |
| Width (B) | 40.0 mm (1.57") |
| Hole Spacing (E) | 7.1 mm (0.28") |
| Thickness (F) | 3.0 mm (0.11") |
| Temperature Rating | 90°C |
| Maximum Amp Rating | 405A |
| UL Recognized | Yes |
Cross reference
| Our part | Burndy |
|---|---|
| 210-98074 | YA29 |
Matched by size and type. Trademarks belong to their owners.
