3/4 in. EMT to Flex Set-Screw Connector, Steel | UL 514B | 3117-0034
Shipping calculated at checkout
SKU: 3117-0034
1000 in stock
Open here
CT 3117-0034 — 3/4" emt to flex set-screw connector, zinc-plated steel / die-cast. For EMT to FMC trade size 3/4 (OD 0.922"). UL 514B. Direct cross for Bridgeport 282-DC.
| Part No. | 3117-0034 |
|---|---|
| Trade size | 3/4 in — fits OD 0.922 in |
| Raceway | EMT to FMC |
| Material / finish | Zinc-plated steel / die-cast |
| Listing | UL 514B |

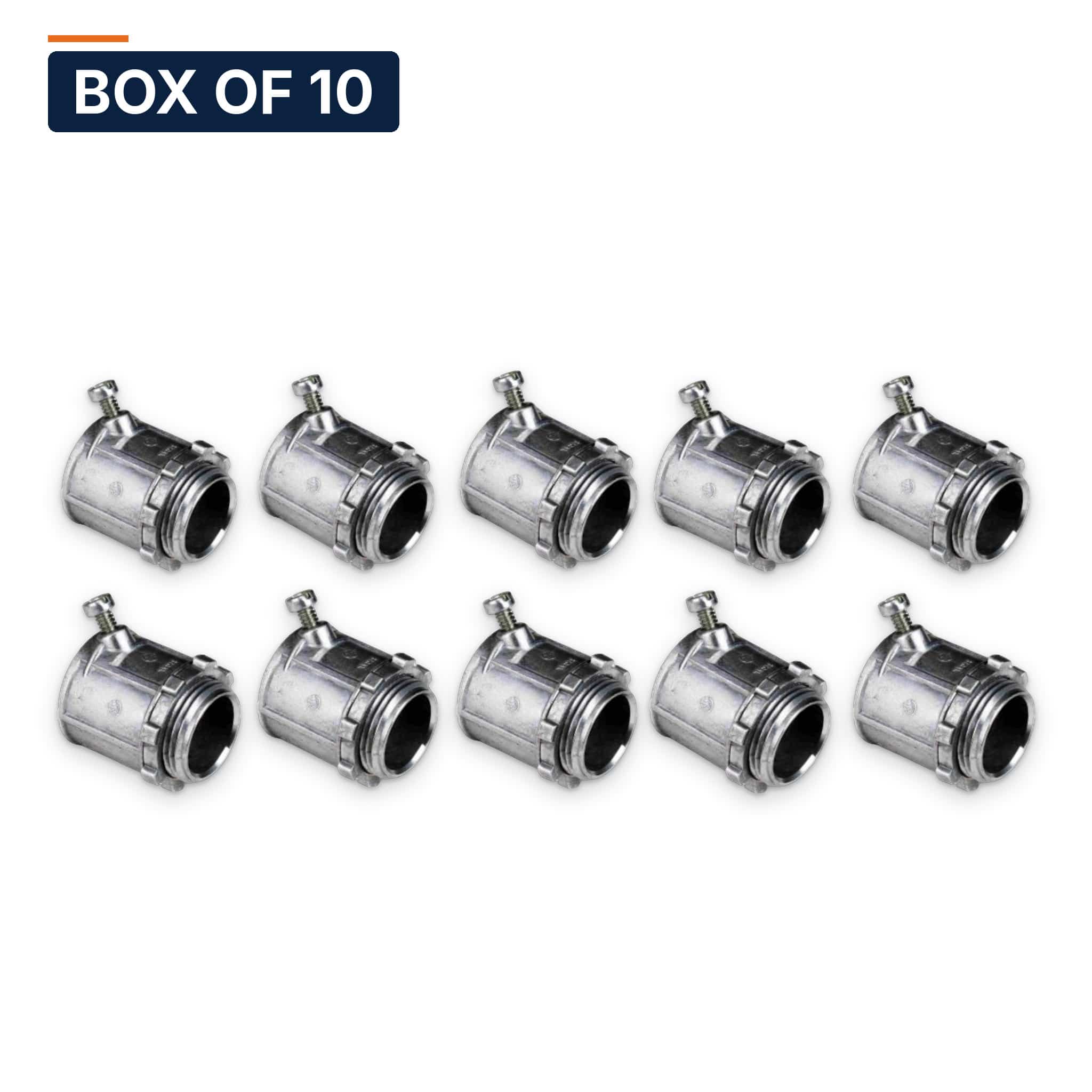

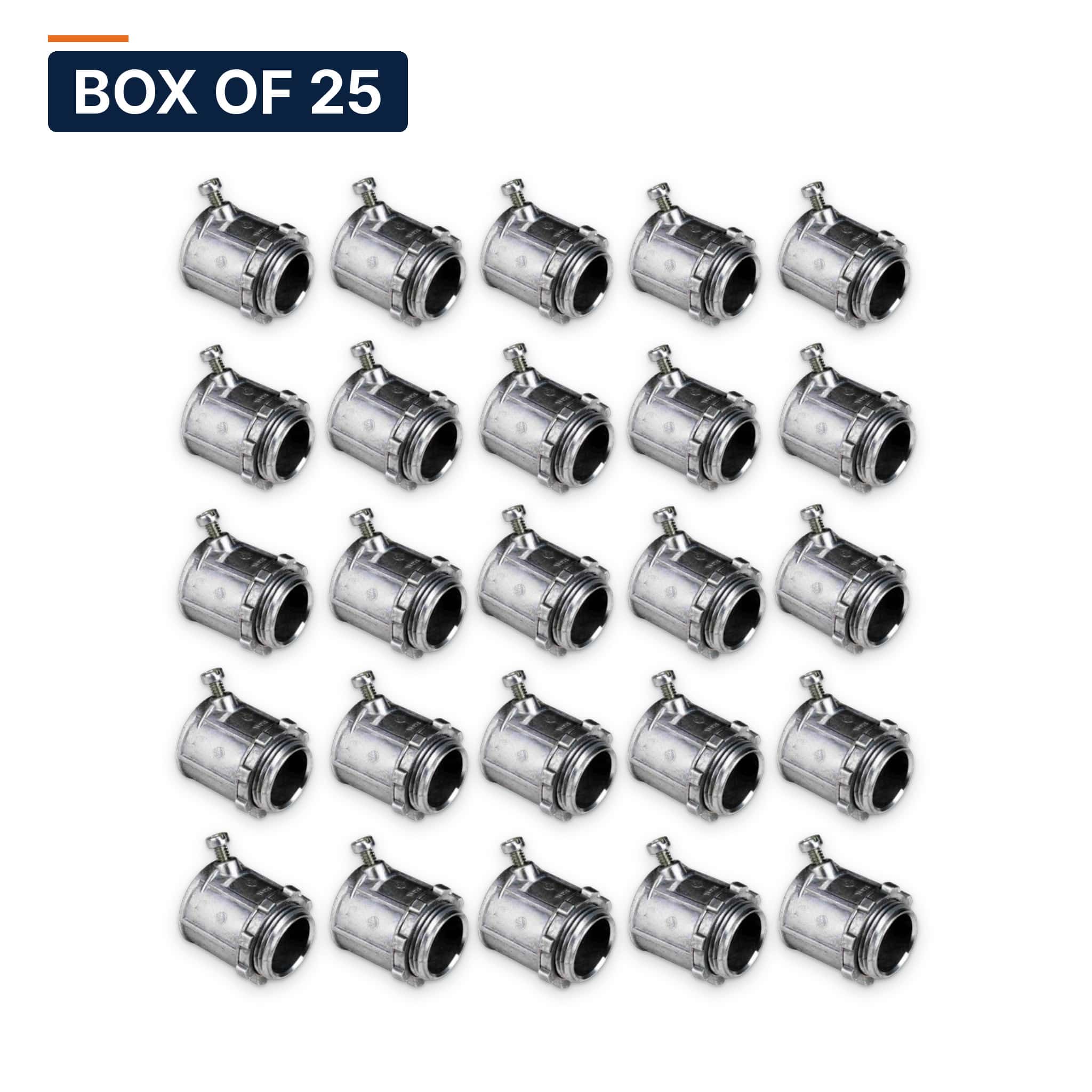

| Package | Sold each; box quantities priced through the trade desk |
Cross-reference
| Manufacturer | Part No. |
|---|---|
| Bridgeport | 282-DC |
Crosses identify fittings of the same trade size, raceway, and listing class. "Class" entries are family-level — confirm the exact number on the manufacturer datasheet.
Where it's used

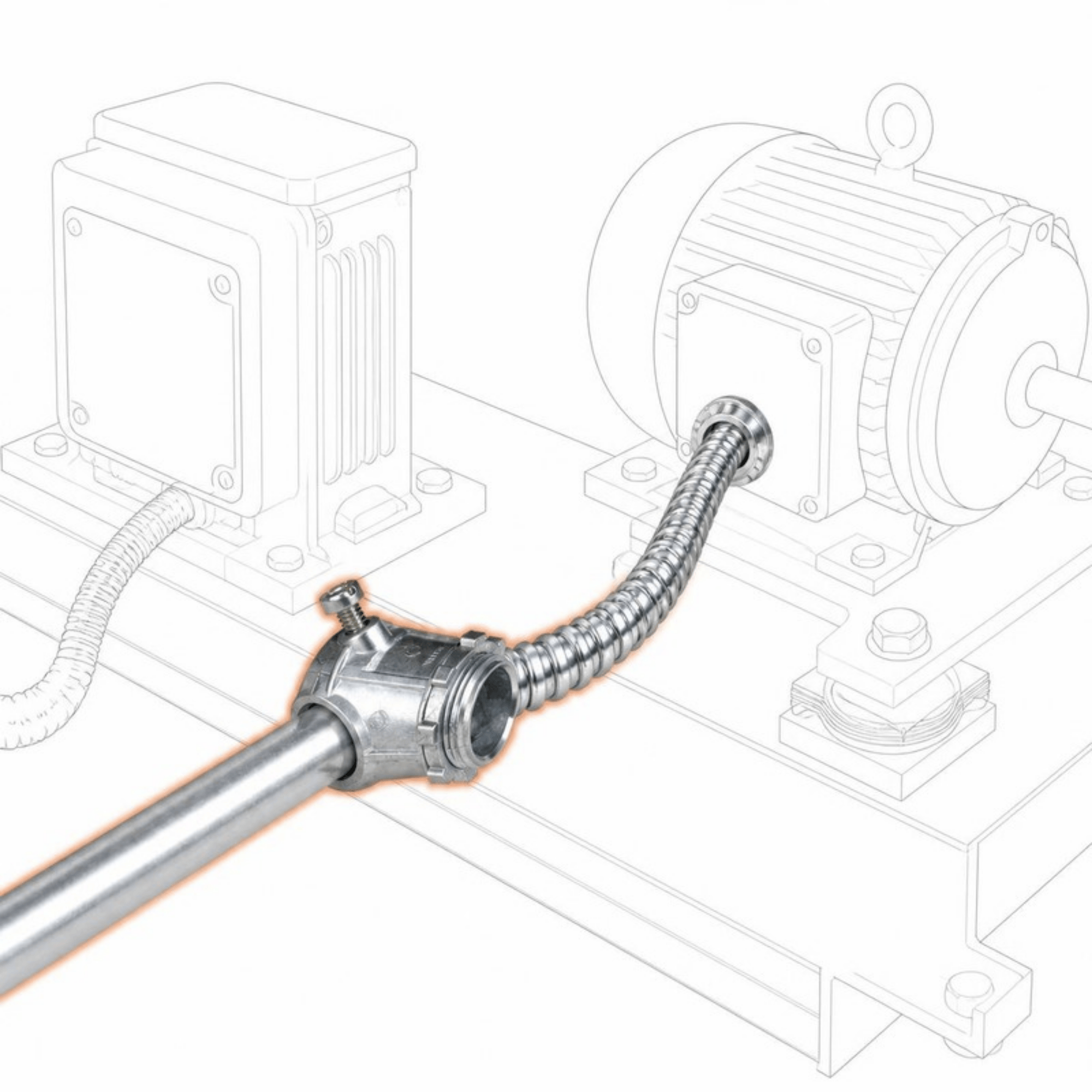

- Transition from EMT to flexible metal conduit at motors, transformers, and vibrating equipment
- Final drops to HVAC units and pumps
- Equipment that must be movable for service
How to install
Set-screw end on the EMT to the stop; screw-in or clamp end onto the FMC convolution. Bond per 250.118 — FMC over 6 ft is not an EGC on its own. Guide: Rigid vs EMT Couplings.
Complete the run — 3/4 in.
Coupling · Locknut · Bushing · Grounding bushing · One-hole strap · Hanger
Stocked in Oxnard, CA — same-day shipping on orders by 2PM ET. Volume and trade pricing through the trade desk.
